SKU: 46-23755 | UPC: 707742045671

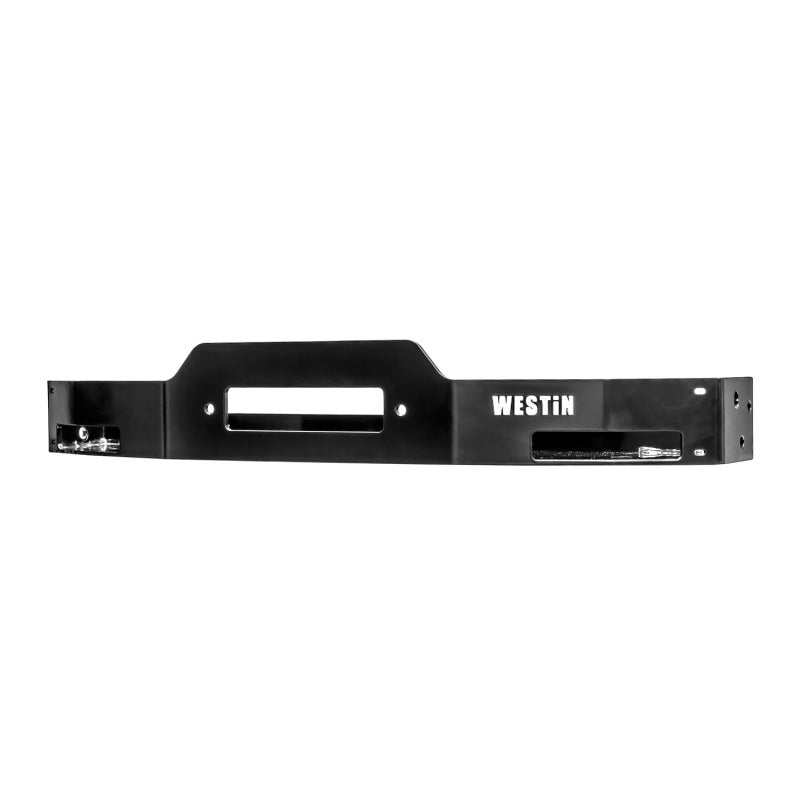

Westin 2009-2018 Dodge/Ram 1500 MAX Winch Tray - Black
Westin MAX Winch Tray mounts directly to the frame of 2009-2018 Dodge Ram 1500 trucks and 2019-2023 Ram 1500 Classic models for secure winch installation. This heavy-duty steel tray supports winches up to 12000 pounds and integrates seamlessly with Westin MAX Grill Guards. Bolt-on design ensures straightforward setup without drilling preserving your truck's structure.
Key Features
- Frame Mount Design: Bolts directly to truck frame for rock-solid stability during heavy pulling and recovery tasks.
- 12000 lb Winch Capacity: Engineered to handle high-capacity winches providing reliable performance in demanding off-road conditions.
- No-Drill Installation: Uses existing frame holes for quick bolt-on fit reducing install time and avoiding frame modifications.
- MAX Grill Guard Compatible: Grill guards bolt straight to the tray creating a unified front-end protection system.
- Black Textured Powdercoat: 3/16-inch laser-cut steel with durable finish resists corrosion and withstands harsh environments.
Product Notes
- Verify winch dimensions before purchase to ensure proper fit within tray parameters.
- Clean powdercoat regularly to maintain finish longevity in off-road use.
- Product ships oversized requires freight carrier handling.
Installation Notes
- Professional installation recommended.
- Bolts to frame using provided hardware typically 2-3 hours with basic tools.
- Compatible with Westin MAX Series Grill Guards and most standard winch models.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2010 | Dodge | Ram 1500 | Laramie |
| 2009-2010 | Dodge | Ram 1500 | SLT |
| 2009-2010 | Dodge | Ram 1500 | Sport |
| 2009-2010 | Dodge | Ram 1500 | ST |
| 2009-2010 | Dodge | Ram 1500 | TRX |
| 2009-2010 | Dodge | Ram 1500 | TRX4 |
| 2011-2018 | Ram | 1500 | Big Horn |
| 2012-2018 | Ram | 1500 | Express |
| 2013-2017 | Ram | 1500 | HFE |
| 2011-2018 | Ram | 1500 | Laramie |
| 2014-2015 | Ram | 1500 | Laramie Limited |
| 2011-2018 | Ram | 1500 | Laramie Longhorn |
| 2015-2018 | Ram | 1500 | Limited |
| 2014-2018 | Ram | 1500 | Lone Star |
| 2011-2016 | Ram | 1500 | Outdoorsman |
| 2013 | Ram | 1500 | R/T |
| 2015-2018 | Ram | 1500 | Rebel |
| 2011-2018 | Ram | 1500 | SLT |
| 2014-2018 | Ram | 1500 | Special Service |
| 2011-2018 | Ram | 1500 | Sport |
| 2011-2012 | Ram | 1500 | ST |
| 2011-2018 | Ram | 1500 | Tradesman |
| 2012 | Ram | 1500 | Tradesman HD |
| 2019 | Ram | 1500 Classic | Big Horn |
| 2019-2020,2022 | Ram | 1500 Classic | Express |
| 2019 | Ram | 1500 Classic | Lone Star |
| 2019-2020,2022 | Ram | 1500 Classic | SLT |
| 2019-2023 | Ram | 1500 Classic | Special Service |
| 2019-2022 | Ram | 1500 Classic | Tradesman |
| 2019-2022 | Ram | 1500 Classic | Warlock |
Why Choose Westin?
- Over 30 years crafting truck accessories for Ram owners.
- Heavy-duty steel construction built for off-road recovery.
- Laser-cut precision ensures exact fit on Dodge Ram frames.
Frequently Asked Questions
-
Q: Does this fit my 2015 Ram 1500 Rebel?
A: Yes fits 2015-2018 Ram 1500 Rebel and all listed submodels bolt-on to frame. -
Q: What material and finish does the tray use?
A: 3/16-inch laser-cut steel with black textured powdercoat for rust resistance and durability. -
Q: Is drilling required for installation?
A: No uses factory frame holes with included hardware professional install advised.
Shipping & Handling
- Method: Freight ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Oversized box 41 x 21 x 10 inches
- Weight: 58 lbs shipping weight
