SKU: 46-23835 | UPC: 707742063101

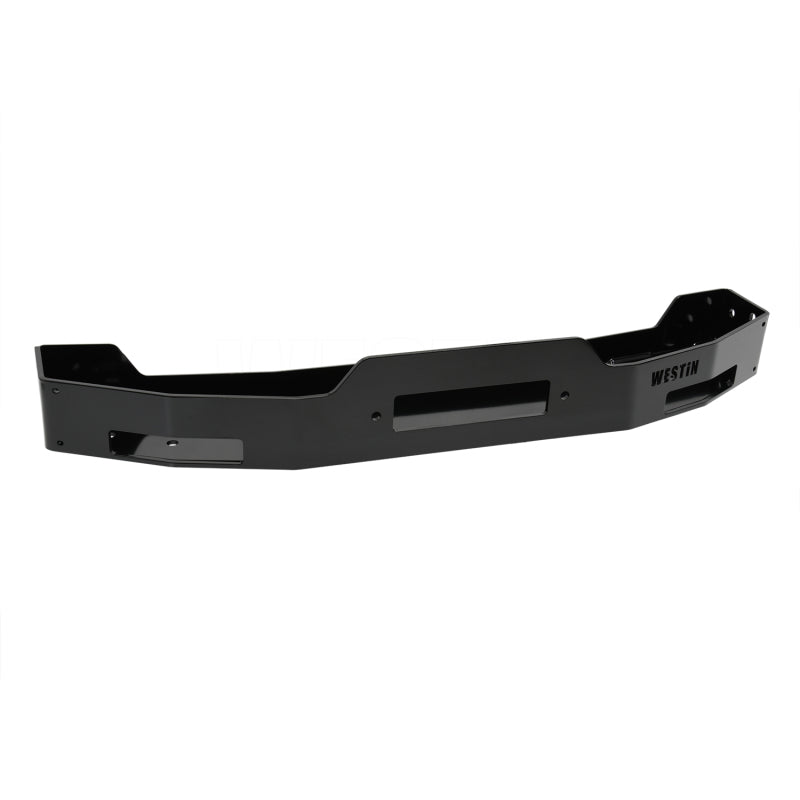

Westin 2015-2023 Ford F-150 SSV MAX Winch Tray - Black
Westin SSV MAX winch tray provides a rock-solid mounting platform for your winch on 2015-2023 Ford F-150 trucks including XL, XLT, Lariat, King Ranch, Platinum, Limited, SSV, Police Responder, Tremor and Raptor models. This heavy-duty steel tray bolts directly to the frame for unmatched stability during heavy pulls. Pair it with Westin MAX grill guards that bolt right on, enabling fast recovery setups without compromising your truck's front-end strength.
Key Features
- Direct Frame Mount: Bolts securely to F-150 frame rails for maximum load handling and vibration resistance during off-road recovery.
- 12,000 lb Winch Capacity: Designed to handle top-rated winches like Warn VR EVO or Smittybilt XRC, ensuring reliable performance in tough conditions.
- Grill Guard Compatibility: Westin MAX series grill guards attach directly, creating a complete front protection and winch system.
- Bolt-On No-Drill Install: Uses existing frame holes for quick setup that maintains factory appearance and structural integrity.
- Black Powder Coat Finish: Tough corrosion-resistant coating withstands mud, salt and harsh weather for long-lasting black appearance.
Product Notes
- Confirm winch control box and fairlead clearance before ordering.
- Steel construction weighs 57 lbs for durable strength without excess bulk.
- Ships freight-free to lower 48 states via ground carrier.
Installation Notes
- Professional installation recommended.
- Requires basic hand tools and 2-3 hours for complete bolt-on setup.
- Compatible with factory bumper. hardware included for frame attachment.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Ford | F-150 | King Ranch |
| 2015-2023 | Ford | F-150 | Lariat |
| 2016-2023 | Ford | F-150 | Limited |
| 2015-2023 | Ford | F-150 | Platinum |
| 2018-2023 | Ford | F-150 | Police Responder |
| 2022 | Ford | F-150 | Raptor |
| 2016-2023 | Ford | F-150 | SSV |
| 2021-2023 | Ford | F-150 | Tremor |
| 2015-2023 | Ford | F-150 | XL |
| 2015-2023 | Ford | F-150 | XLT |
Why Choose Westin?
- 50+ years crafting truck accessories for Ford owners.
- Thick 3/16-inch steel tubing built for real-world abuse.
- Laser-cut precision fitment verified on actual F-150 frames.
Frequently Asked Questions
-
Q: Will this fit my 2023 F-150 XL?
A: Yes, confirmed fit for all listed 2015-2023 F-150 submodels including XL, SSV and others via direct frame bolt pattern. -
Q: What winches are compatible?
A: Supports most 12,000 lb winches under 31 inches long x 11 inches deep x 10 inches high. check synthetic rope models for best fit. -
Q: What is the warranty?
A: Westin limited lifetime warranty against defects in materials and workmanship when installed properly.
Shipping & Handling
- Method: UPS Freight Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed at 41 x 17 x 9 inches
- Weight: 57 lbs
