SKU: 46-23905 | UPC: 707742072790

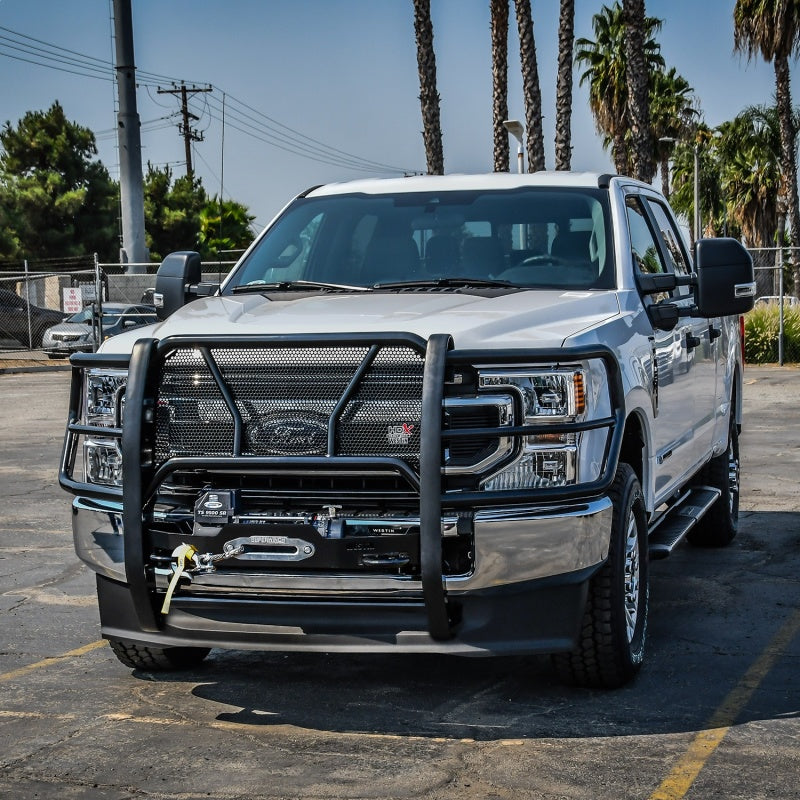

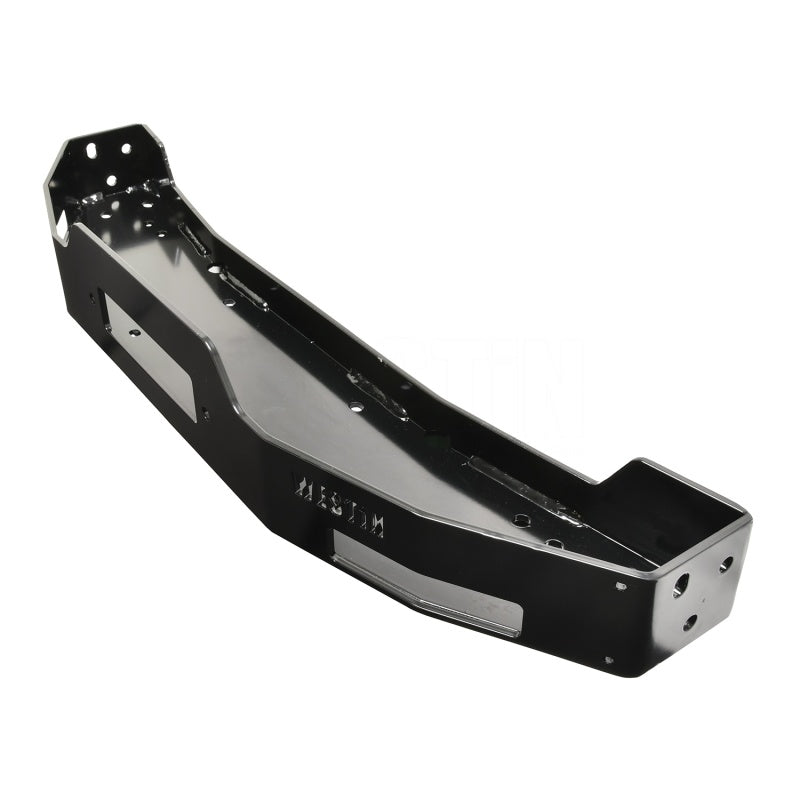

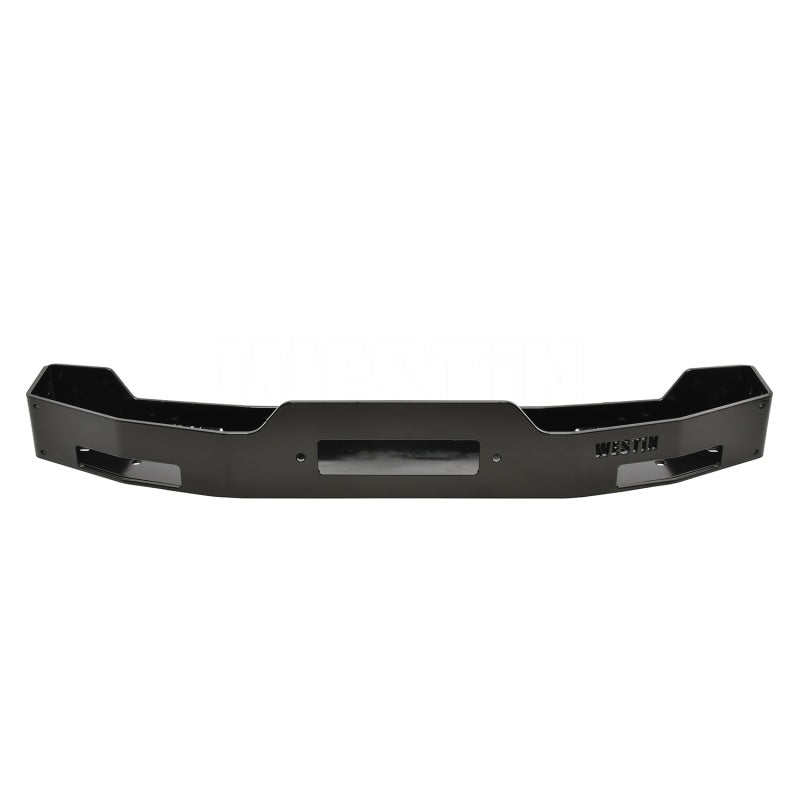

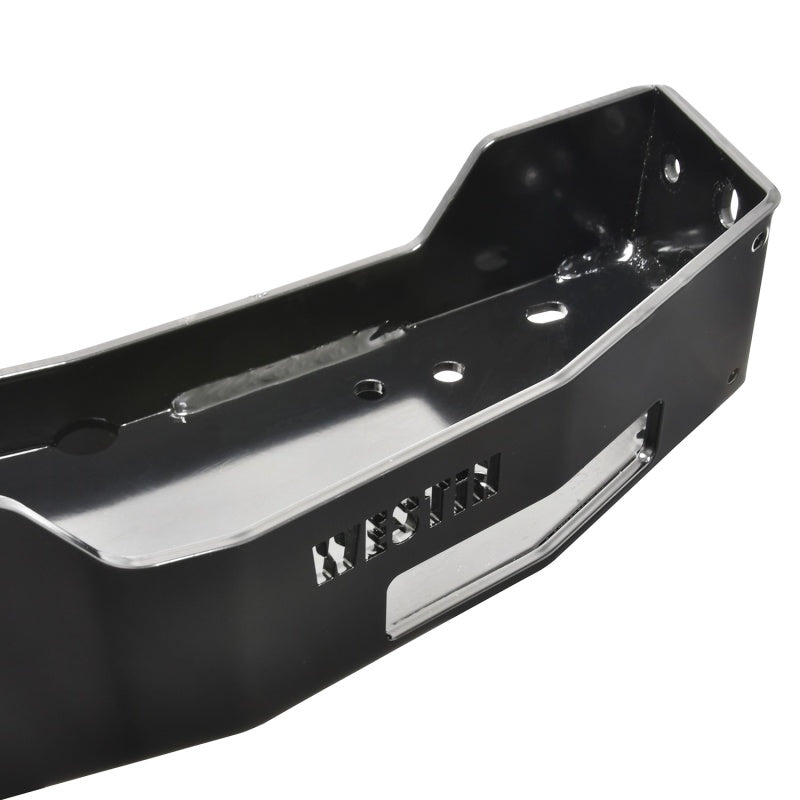

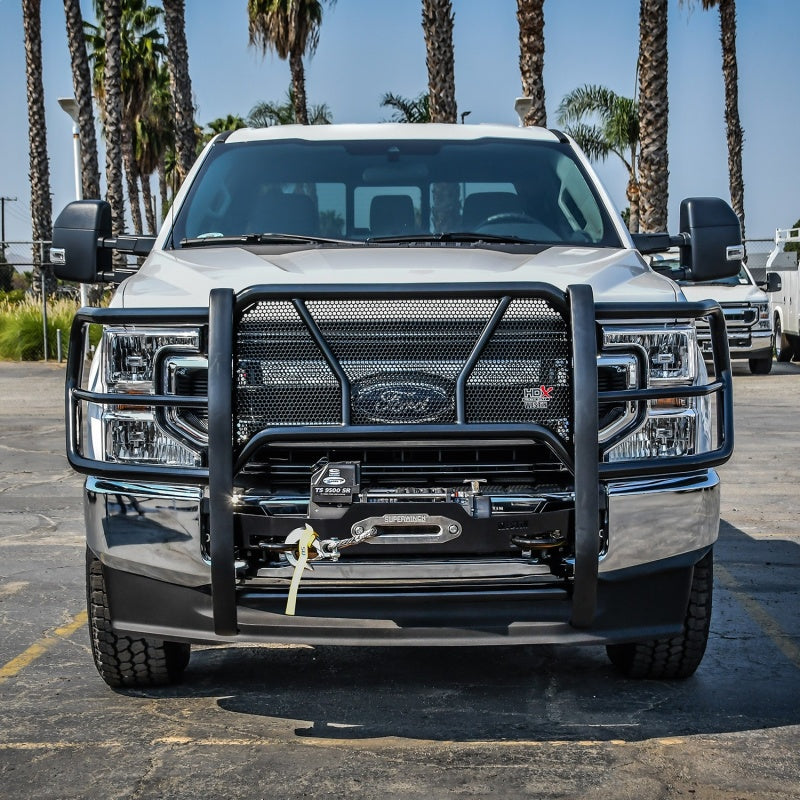

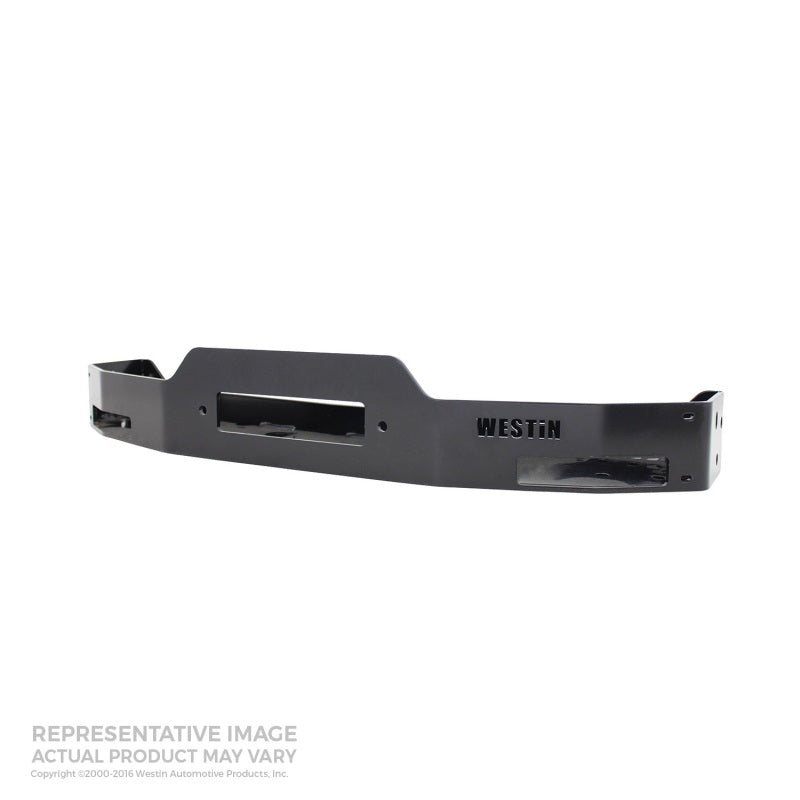

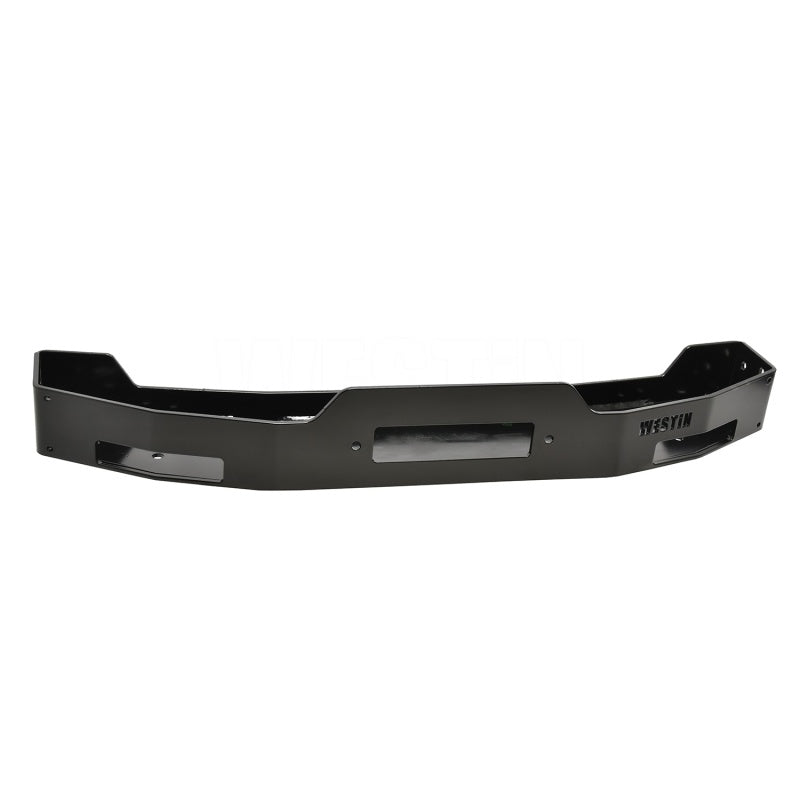

Westin 2017-2024 Ford F-250/F-350 Super Duty MAX Winch Tray - Black
Westin HDX MAX Winch Tray delivers heavy-duty mounting for winches on 2017-2024 Ford F-250 and F-350 Super Duty trucks. This black powder-coated steel tray supports winches with up to 12000 lbs line pull capacity from brands like Warn, Smittybilt and Superwinch. Pre-drilled holes and low-profile design ensure secure fit and clean grille guard integration for off-road recovery.
Key Features
- 12,000 lb Winch Capacity: Fits standard roller fairleads and most 8000-12000 lb winches for reliable pulling power in tough conditions.
- Pre-Drilled Mounting: Factory-drilled holes align perfectly with popular winch models to speed up installation and maintain strength.
- Low-Profile MAX Faceplate: Sleek design sits flush against grille guards reducing drag and enhancing truck aesthetics.
- Heavy-Duty Steel Construction: 11-gauge tubing with E-coated underbody protection and textured black powder coat resists corrosion and impacts.
- HDX Series Engineering: Built for Super Duty frames with reinforced brackets to handle extreme towing and winching demands.
Product Notes
- Special order item. lead time may apply based on stock.
- Verify winch dimensions before purchase for proper fit.
- Ships via ground freight due to size and weight.
Installation Notes
- Professional installation recommended.
- Bolts directly to factory frame holes. no drilling required on truck.

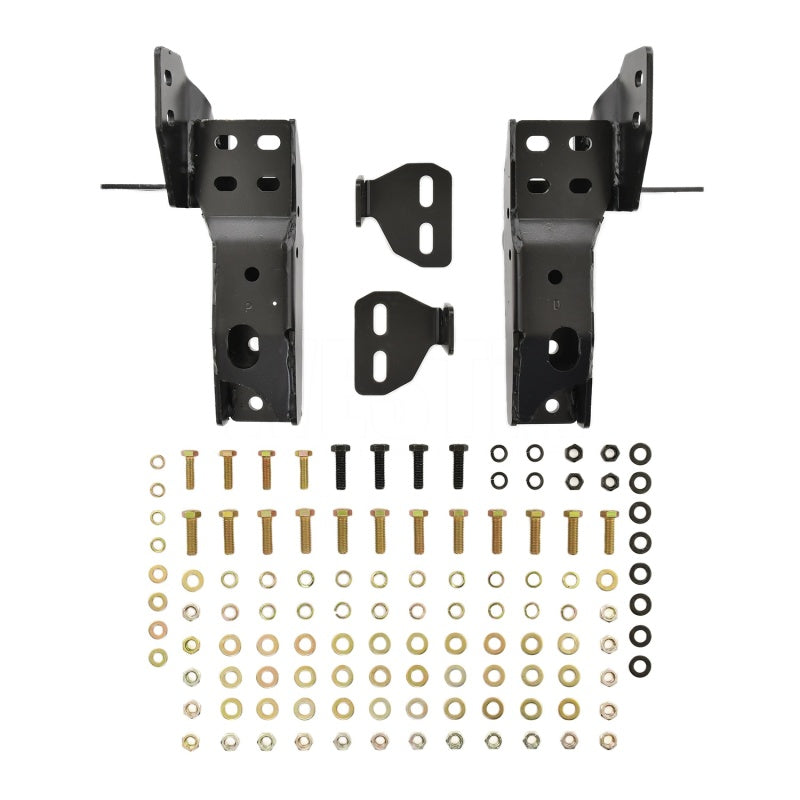

- Compatible with Westin HDX Grille Guards. includes all hardware.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2024 | Ford | F-250 Super Duty | King Ranch |
| 2017-2024 | Ford | F-250 Super Duty | Lariat |
| 2018-2024 | Ford | F-250 Super Duty | Limited |
| 2017-2024 | Ford | F-250 Super Duty | Platinum |
| 2017-2024 | Ford | F-250 Super Duty | XL |
| 2017-2024 | Ford | F-250 Super Duty | XLT |
| 2017-2024 | Ford | F-350 Super Duty | King Ranch |
| 2017-2024 | Ford | F-350 Super Duty | Lariat |
| 2018-2024 | Ford | F-350 Super Duty | Limited |
| 2017-2024 | Ford | F-350 Super Duty | Platinum |
| 2017-2024 | Ford | F-350 Super Duty | XL |
| 2017-2024 | Ford | F-350 Super Duty | XLT |
Why Choose Westin?
- Over 40 years crafting truck accessories for real-world durability.
- Precision-welded steel components tested for off-road abuse.
- Direct bolt-on fitment engineered for Ford Super Duty platforms.
Frequently Asked Questions
-
Q: Does it fit 2024 F-250 models?
A: Yes, confirmed fit for all 2017-2024 F-250 and F-350 Super Duty trims including King Ranch, Lariat, Limited, Platinum, XL and XLT. -
Q: What material and finish are used?
A: 11-gauge steel tubing with E-coat primer and textured black powder coat for rust resistance and long-lasting appearance. -
Q: What is the warranty and install time?
A: Limited lifetime warranty against defects. installs in 1-2 hours with basic tools when paired with HDX grille guard.
Shipping & Handling
- Method: Ground Freight
- Availability: In stock - ships same or next business day
- Packaging: Oversized box measures 42 x 14 x 10 inches
- Weight: 49 lbs (shipping weight 55 lbs)
