XK Glow Addressable Accent Light Strip Kit For Jeep - Case of 20

Total Jeep Body Lighting From Bumper to Tailgate

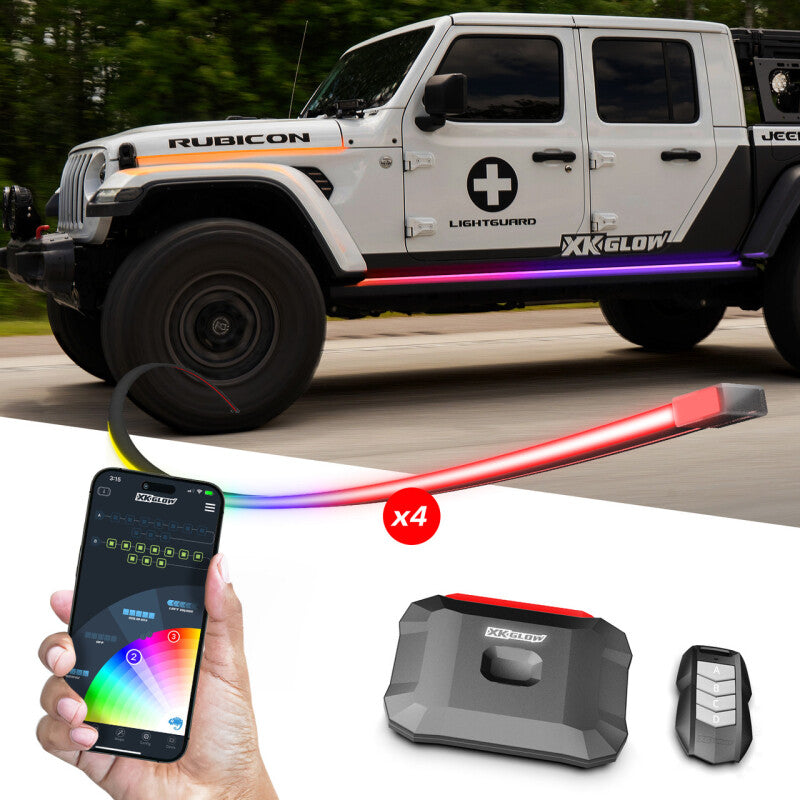

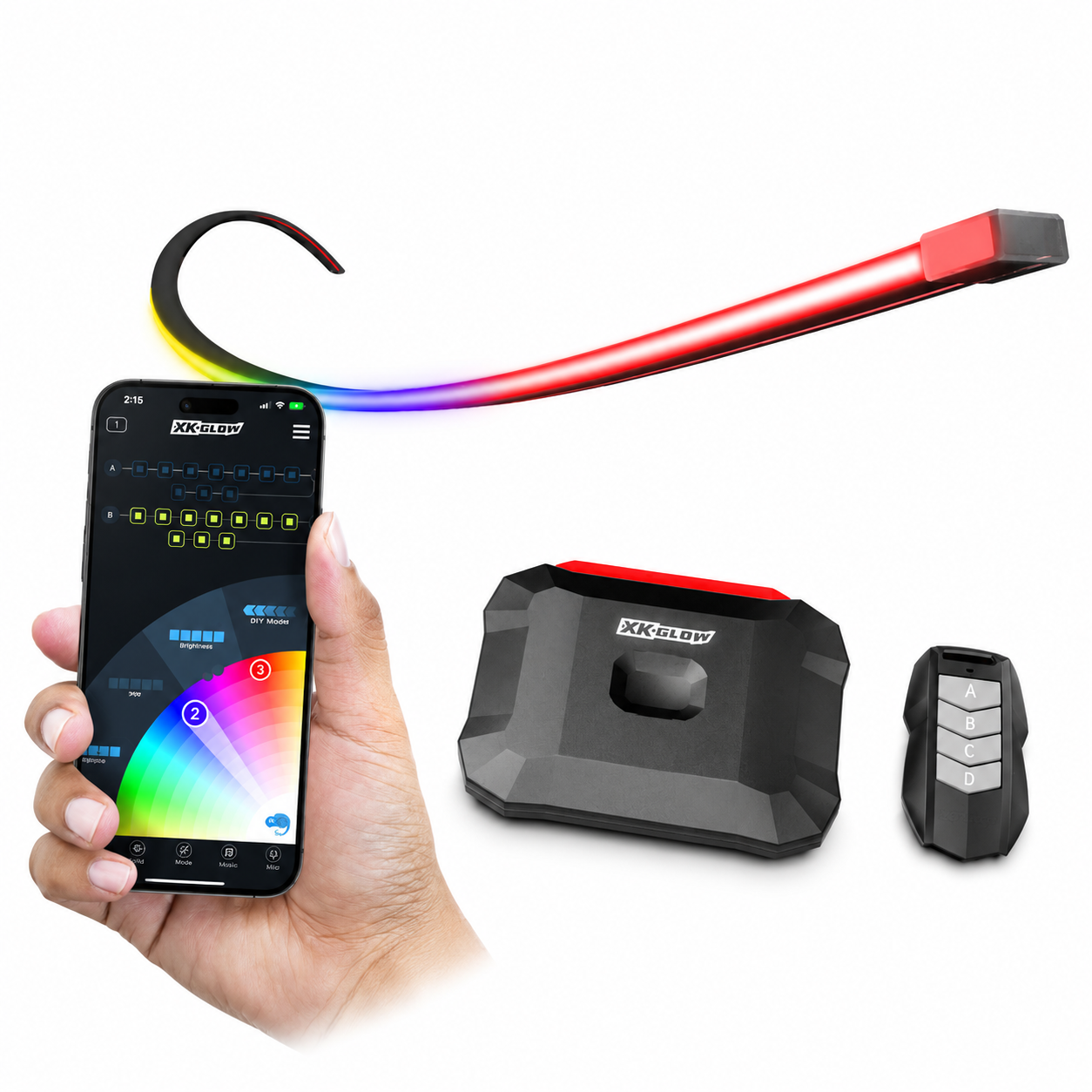

The XK Glow MX-BG-JP-ADV Addressable Accent Light Strip Kit is built specifically for Jeep Wrangler JK, JL, and Gladiator JT owners who want full-body LED coverage in a single kit. You get two 36-inch strips and two 80-inch strips driven by a 4-channel Bluetooth controller and an RF key fob for quick on-the-fly changes. Fifth-generation addressable LED technology delivers 16 million colors and flowing chasing effects across all four strips simultaneously. IP67 waterproofing keeps everything running through rain, mud, and stream crossings, and the XKmax Smartphone App on iOS and Android gives you total control from your phone. This listing is a case of 20 kits, ideal for resellers and installers stocking Jeep-specific lighting solutions.

Key Features

• Purpose-built for Jeep Wrangler JK, JL, and Gladiator JT body panel installation
• Two 36-inch strips and two 80-inch strips per kit for comprehensive body coverage
• 4-channel controller manages all four strips independently
• RF key fob included for hands-free wireless control
• 5th-generation addressable RGB LED technology with 16 million colors
• Dynamic chasing effects controlled via XKmax App (iOS and Android)
• IP67 waterproof rating for off-road and weather durability
• Bluetooth 4.0 Low Energy wireless connectivity
• 11-14V DC input, 5A per channel controller max load
• 3-year manufacturer warranty
• Case of 20 complete kits

Specifications

What's Included (per kit)

• 2x 36-inch addressable RGB LED strips
• 2x 80-inch addressable RGB LED strips
• 1x 4-channel Bluetooth 4.0 LE controller
• 1x RF key fob remote
• Wiring harness and connectors
• Mounting hardware and adhesive backing
• Quick-start installation guide

Frequently Asked Questions

The MX-BG-JP-ADV is purpose-built for Jeep Wrangler JK (2007-2018), Jeep Wrangler JL (2018-present), and Jeep Gladiator JT (2020-present). The strip lengths and mounting points are sized to match Jeep body panel dimensions on these platforms, making installation straightforward without cutting or splicing extra wire.

The ADV kit includes both 36-inch and 80-inch strips plus a 4-channel controller and an RF key fob, giving you coverage across the full body length from grille to tailgate. The base STA kit includes only two 36-inch strips on a 2-channel controller. If you want bumper-to-bumper coverage with independent zone control, the ADV configuration is the complete solution.

Yes. The 4-channel controller lets you assign different colors or effects to different strips at the same time. You can run a white static effect on the front strips while running a chasing color sequence on the rear strips, or sync them all to the same pattern, all from the XKmax App.

The strips and connections carry an IP67 waterproof rating, meaning they can withstand temporary submersion in up to one meter of water for up to 30 minutes. They handle rain, mud, and shallow water crossings without issue. The controller should be mounted in a sheltered location out of direct water spray for best reliability.

The RF key fob gives you quick on-off and basic color switching without needing to open your phone. It operates independently of the Bluetooth connection, so it works even if your phone is stowed. The XKmax App provides full access to color selection, effects programming, brightness control, and saved scene recall.

Installation requires routing the strips along the body panels using the included adhesive backing and mounting clips, then running the controller wiring to a fused 12V source and chassis ground. Basic familiarity with automotive wiring is helpful. Most Jeep owners complete the install in two to four hours without any cutting or drilling.

This product is offered as a case of 20 complete kits, which is a reseller and installer quantity. It allows shop owners, off-road outfitters, and Jeep dealers to stock multiple units for customer installations at a case price point. Individual kit availability may vary by retailer.

Yes. The XKmax App includes a music-reactive mode that uses your phone microphone to pulse the strip colors to the beat of whatever is playing through your stereo. You can also manually select from dozens of pre-programmed chasing and breathing effects that cycle independently of audio input.

XKGlow covers defects in materials and workmanship for three years from the date of purchase. Damage caused by improper installation, reversed polarity wiring, physical abuse, or use outside the rated voltage range is not covered. Retain your proof of purchase and contact XKGlow support directly to initiate a warranty claim.

Installation Overview

1. Clean all mounting surfaces on the body panels with isopropyl alcohol and allow to dry completely.
2. Dry-fit all four strips along the intended mounting paths to plan wire routing before peeling adhesive backing.
3. Peel the adhesive backing and press each strip firmly along the body panel channels, starting from the front and working toward the rear.
4. Route the controller wiring harness through existing grommets or along the firewall toward the battery.
5. Connect the four strip leads to the corresponding controller channels, matching polarity.
6. Connect the controller power lead to a fused 12V source and the ground lead to a chassis ground point.
7. Mount the controller in a sheltered location, keeping it away from direct water exposure.
8. Download the XKmax App, pair the controller via Bluetooth 4.0 LE, and verify all four strips respond correctly.
9. Test the RF key fob and confirm on-off and color functions work.
10. Secure all wiring with zip ties and verify no wires are near pinch points or moving components.
