Yukon Gear Carrier installation Kit For GM 8.5in Diff w/ HD Bearings

Yukon Gear CK GM8.5-HD Carrier Install Kit with HD Bearings for GM 8.5in Differential

The CK GM8.5-HD from Yukon Gear is a heavy-duty carrier installation kit engineered for the GM 8.5in rear differential when used with aftermarket posi or locker units that have large 1.562in carrier bearing journal diameters. Compatible with Yukon Dura Grip, Eaton Detroit Positraction, True Trac, ValueTrac, Auburn Pro-Series, and Detroit Locker units, the CK GM8.5-HD provides Timken HD bearings sized for the larger journals used by these performance differential units in an enormous range of GM trucks, SUVs, and cars from 1970 through 2000.

Features and Benefits

• Heavy-duty Timken carrier bearings sized for 1.562in OD carrier bearing journals on aftermarket posi and locker units
• Carrier bearing races matched to the HD bearings for proper seating and load distribution
• Complete shim kit for precise backlash adjustment during carrier installation
• Engineered specifically for use with large-journal aftermarket differentials in GM 8.5in applications
• Covers 1970-2000 GM trucks, SUVs, and cars equipped with the 10-bolt 8.5in rear axle
• Manufactured to Yukon Gear quality standards for reliable performance

Fitment

Specifications

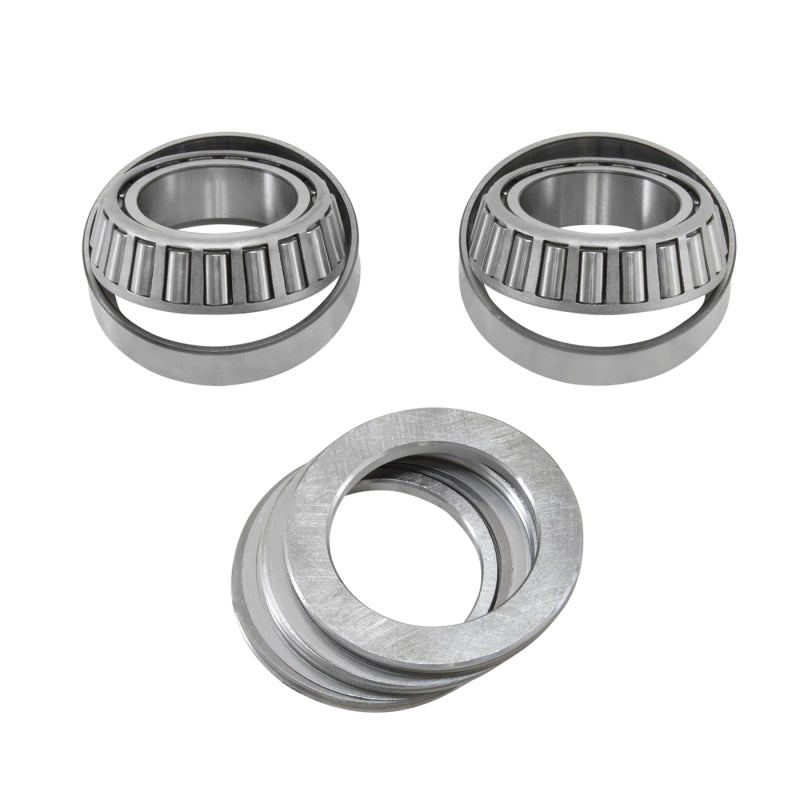

What's Included

• HD Timken carrier bearings (2) for 1.562in OD journals
• Carrier bearing races (2)
• Shim kit for backlash adjustment

Frequently Asked Questions

• What differential does CK GM8.5-HD fit? The CK GM8.5-HD fits the GM 8.5in 10-bolt rear differential when used with aftermarket posi or locker units that have large 1.562in carrier bearing journal diameters.
• Does CK GM8.5-HD include a pinion seal? No. The CK GM8.5-HD is a carrier-only installation kit and does not include pinion components or a pinion seal. If you need a complete pinion and carrier kit for the GM 8.5in, see Yukon's CK GM8.5.
• What is the difference between CK GM8.5 and CK GM8.5-HD? The CK GM8.5-HD uses heavy-duty carrier bearings sized for the larger 1.562in OD journals found on aftermarket posi and locker units. The standard CK GM8.5 uses OEM-size carrier bearings for stock carriers.
• Which aftermarket differentials require CK GM8.5-HD? The CK GM8.5-HD is designed for use with Yukon Dura Grip, Eaton Detroit Positraction, True Trac, ValueTrac, Auburn Pro-Series, and Detroit Locker units in the GM 8.5in housing.
• Does CK GM8.5-HD include a shim kit? Yes. The CK GM8.5-HD includes a complete shim kit for setting backlash during carrier installation.
• What year range does CK GM8.5-HD cover? The CK GM8.5-HD covers GM 8.5in applications from 1970 through 2000 in C/K trucks, Camaro, Blazer/Jimmy, Suburban, and other GM models equipped with the 10-bolt rear axle.
• Is this kit covered under the Magnuson-Moss Warranty Act? Yes. As a consumer product sold in the United States, the CK GM8.5-HD is subject to the provisions of the Magnuson-Moss Warranty Act. Yukon Gear provides a limited warranty against defects in materials and workmanship. Installation of aftermarket differential components does not void your vehicle manufacturer's warranty on unrelated systems under federal law.
• Can CK GM8.5-HD be used with OEM GM carriers? No. The CK GM8.5-HD is designed for aftermarket carriers with large 1.562in OD bearing journals. For standard OEM-size carrier journals, use the regular CK GM8.5 kit.

Installation Instructions

1. Safely raise and support the vehicle. Drain differential fluid from the GM 8.5in housing.
2. Remove the differential cover and drain remaining fluid.
3. Remove the carrier bearing caps, noting their original positions and marking them for reassembly.
4. Remove the differential carrier from the housing.
5. Press off original carrier bearings from the carrier using a bearing puller.
6. Install new HD Timken carrier bearings from the CK GM8.5-HD onto the carrier using a press.
7. Install the new carrier bearing races into the housing bores, fully seated.
8. Install the carrier into the housing. Use the shim kit from the CK GM8.5-HD to adjust backlash to specification.
9. Verify gear contact pattern with marking compound. Adjust shims as needed.
10. Reinstall bearing caps in original positions. Torque to manufacturer specification.
11. Reinstall differential cover with new gasket or RTV sealant. Fill with correct GM-spec differential fluid to the proper level. Lower vehicle.
