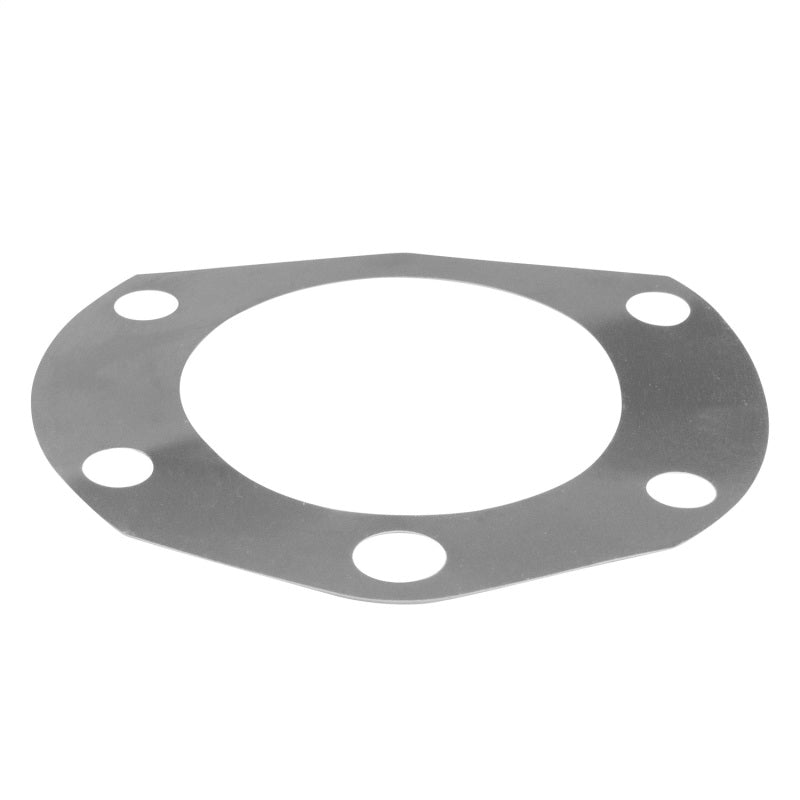

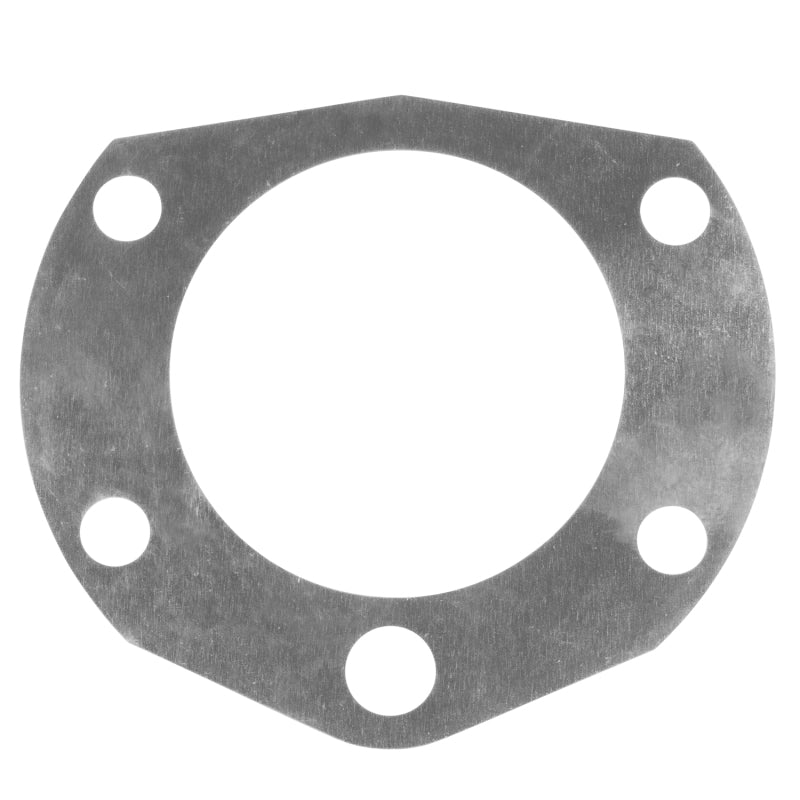

Yukon Gear Axle End Play Shim 0.005in Thick for AMC Model 20 Differential

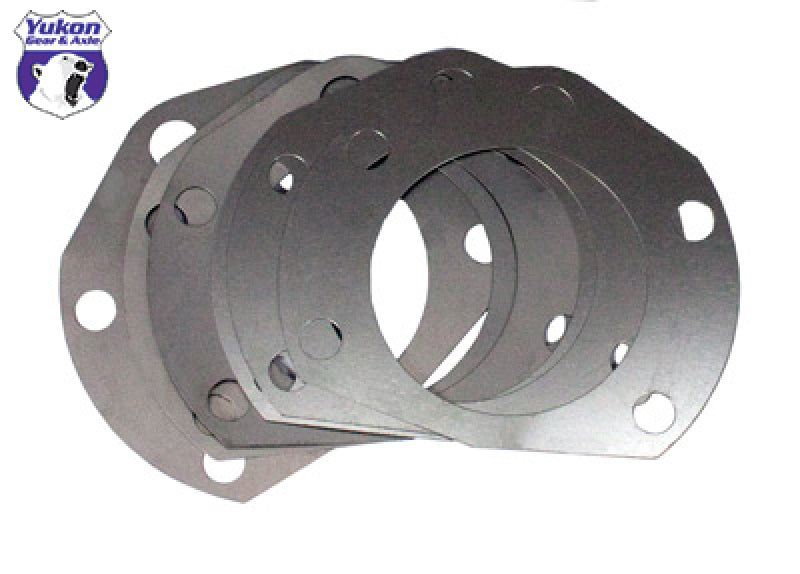

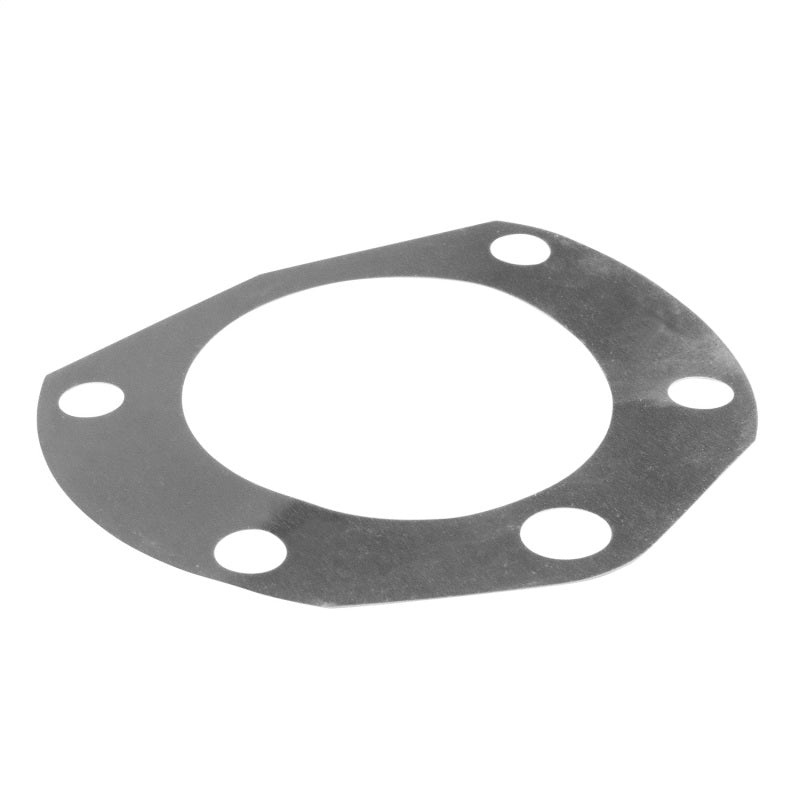

The SK M20-5 from Yukon Gear and Axle is an axle end play shim kit for the AMC Model 20 differential, featuring a primary shim thickness of 0.005in along with five additional thicknesses for complete end play adjustment capability. Part number SK M20-5 fits the same applications as its 0.003in counterpart: 1968-1986 AMC and Jeep vehicles equipped with the Model 20 rear axle, including the Jeep CJ5, CJ7, J10, Scrambler, and Wagoneer, AMC Hornet, Javelin, Matador, Pacer, and Concord, and the Hummer H1. The SK M20-5 includes 2 shims each of 0.003in, 0.005in, 0.010in, 0.015in, 0.020in, and 0.030in, giving the technician the full range needed to precisely set axle end play within factory specification in a single purchase.
Features and Benefits
- Designed for the AMC Model 20 differential axle end play adjustment
- Primary shim thickness: 0.005in
- Kit includes 2 shims each of 0.003, 0.005, 0.010, 0.015, 0.020, and 0.030in thicknesses
- Covers 1968-1986 AMC and Jeep CJ, J-series, and Wagoneer applications
- Compatible with the Hummer H1 AMC Model 20 axle
- Manufactured to Yukon Gear tolerances for accurate end play control
- Eliminates excessive axle shaft end play that leads to noise and premature wear
Fitment
| Year | Make | Model | Notes |
|---|---|---|---|
| 1972-1983 | Jeep | CJ5 | AMC Model 20 rear axle |
| 1976-1986 | Jeep | CJ7 | AMC Model 20 rear axle |
| 1981-1985 | Jeep | CJ8 Scrambler | AMC Model 20 rear axle |
| 1974-1987 | Jeep | J10 / J20 Truck | AMC Model 20 rear axle |
| 1974-1991 | Jeep | Wagoneer | AMC Model 20 rear axle |
| 1970-1977 | AMC | Hornet | AMC Model 20 rear axle |
| 1968-1978 | AMC | Javelin | AMC Model 20 rear axle |
| 1971-1978 | AMC | Matador | AMC Model 20 rear axle |
| 1975-1980 | AMC | Pacer | AMC Model 20 rear axle |
| 1978-1983 | AMC | Concord | AMC Model 20 rear axle |
| 1992-2006 | Hummer | H1 | AMC Model 20 axle configuration |
Specifications
| Specification | Detail |
|---|---|
| Part Number | SK M20-5 |
| UPC | 883584550617 |
| Differential | AMC Model 20 |
| Kit Type | Axle End Play Shim Kit |
| Primary Shim Thickness | 0.005in |
| Included Thicknesses | 0.003, 0.005, 0.010, 0.015, 0.020, 0.030in (2 each) |
| Warranty | Yukon Gear limited warranty |
What's Included
- 2x shims at 0.003in thickness
- 2x shims at 0.005in thickness
- 2x shims at 0.010in thickness
- 2x shims at 0.015in thickness
- 2x shims at 0.020in thickness
- 2x shims at 0.030in thickness
Frequently Asked Questions
Q: What differential does the SK M20-5 fit?
A: The SK M20-5 is designed for the AMC Model 20 rear differential used in 1968-1986 AMC and Jeep vehicles, as well as the Hummer H1.
Q: What shim thicknesses are included in the SK M20-5?
A: The SK M20-5 includes 2 shims each of 0.003in, 0.005in, 0.010in, 0.015in, 0.020in, and 0.030in for a complete range of end play adjustment capability.
Q: What is the difference between the SK M20-3 and the SK M20-5?
A: Both kits contain identical assortments. The SK M20-5 is the 0.005in primary thickness variant and the SK M20-3 is the 0.003in primary variant. Each kit includes the same six thickness options (2 each) for flexible shim stack building.
Q: Does SK M20-5 fit the Jeep CJ5?
A: Yes. The SK M20-5 fits 1972-1983 Jeep CJ5 models equipped with the AMC Model 20 rear differential.
Q: Is this kit compatible with the Hummer H1?
A: Yes. The SK M20-5 is compatible with the Hummer H1's rear axle configuration, which uses AMC Model 20 shim dimensions.
Q: Does this product come with a warranty?
A: Yes. Yukon Gear products are backed by a limited warranty. Under the Magnuson-Moss Warranty Act, using warranted Yukon Gear parts does not void your vehicle's factory warranty when correctly installed.
Q: When should I use SK M20-5 versus SK M20-3?
A: Select the SK M20-5 if your required end play correction needs a 0.005in starting increment, or if you want a kit where the 0.005in shim is the starting point for your stack calculation. Both kits provide the same full shim selection.
Q: Is professional installation recommended?
A: Yes. A dial indicator is required to accurately measure axle end play. Professional installation is recommended to ensure correct shim pack selection and proper end play within factory specification.
Installation Instructions
- Raise and support the vehicle safely. Remove the axle shaft(s) from the AMC Model 20 housing.
- Remove the existing axle end play shims from the axle tube end.
- Install the axle shaft back into the housing without any shims and measure axle end play with a dial indicator against the end of the shaft.
- Determine the required shim pack thickness by calculating the difference between the measured play and the factory minimum specification.
- Select shims from the SK M20-5 kit to build the correct pack thickness, starting with the 0.005in shim as the base increment.
- Install the selected shim pack on the axle tube, then reinstall the axle shaft.
- Recheck end play with the dial indicator and adjust shim selection as needed.
- Reinstall all retaining hardware, brake components, and wheels. Torque all fasteners to specification.
- Check for leaks and road-test before returning to service.
