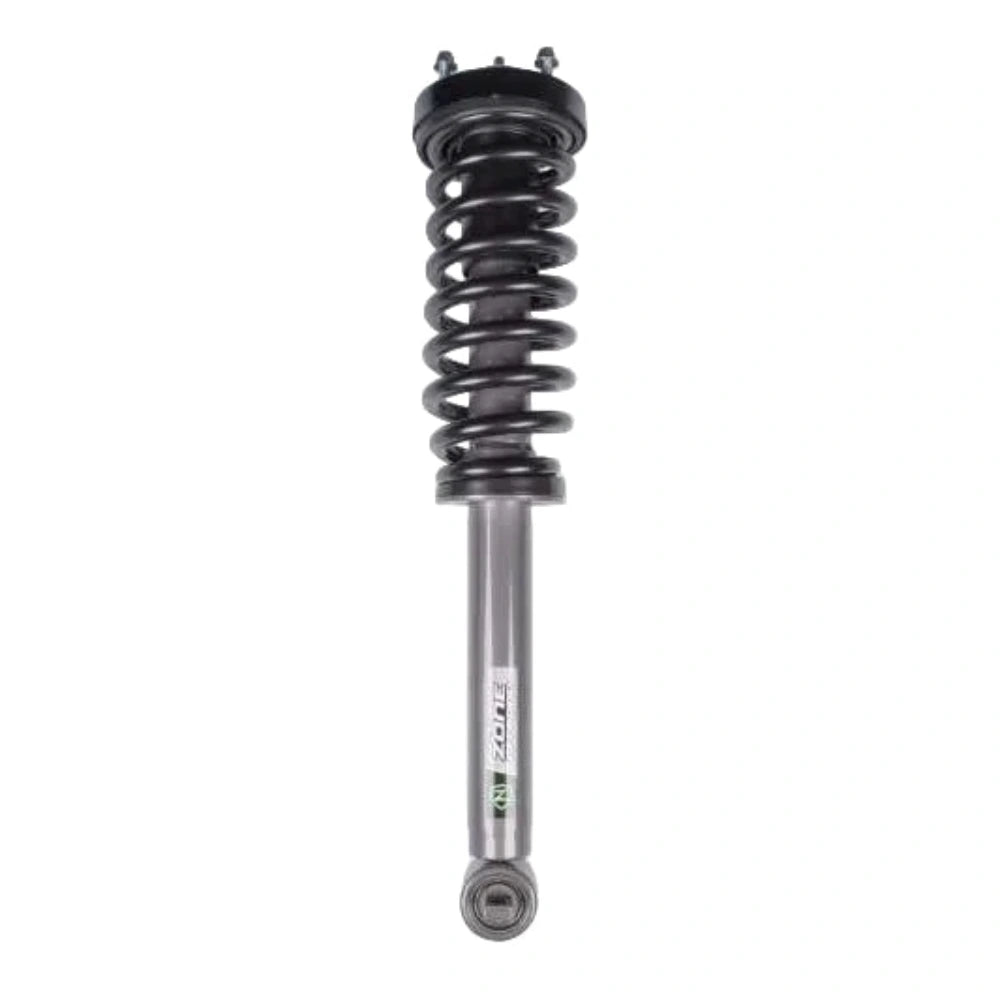

Level Your 2019-2026 RAM 1500 4WD with a Fresh Pre-Built Strut Using the Zone Offroad ZOND4202 2-Inch Loaded Strut
The Zone Offroad ZOND4202 is a pre-assembled 2-inch loaded front strut for the 2019-2026 RAM 1500 4WD. Rather than using a strut spacer to achieve a leveled stance, the ZOND4202 replaces the entire factory strut assembly with a purpose-built loaded unit that delivers 2 inches of front lift while maintaining proper ride height geometry and strut valving for the lifted position. The loaded construction brings the coil spring, upper mount, and strut body pre-assembled from the factory, eliminating the need for a spring compressor during installation. This is the lower-lift complement to the ZOND4402 4-inch strut, providing a more conservative level lift suited to trucks that will primarily see street and light off-road use. Zone Offroad includes Factory Protection Plus coverage on the ZOND4202, which provides a limited lifetime warranty and ESC system compliance. Sold as a single strut. Two units required for the complete front pair.
Key Features
- Pre-assembled loaded strut for 2019-2026 RAM 1500 4WD
- Delivers 2 inches of front lift for a leveled factory stance
- Replaces the entire factory strut for proper valving at the leveled ride height
- Loaded design eliminates need for spring compressor during installation
- Zone Factory Protection Plus: limited lifetime warranty and ESC compliance
- Single unit sold individually
Vehicle Fitment
| Year Range | Make | Model |
|---|---|---|
| 2019-2026 | Ram | 1500 |
Specifications
| Detail | Value |
|---|---|
| Part Number | ZOND4202 |
| Brand | Zone Offroad |
| Lift Height | 2 inches (front, leveling) |
| Type | Loaded strut (pre-assembled) |
| Quantity | Single strut |
| Fitment | 2019-2026 RAM 1500 4WD |
| Warranty | Factory Protection Plus Limited Lifetime Warranty |
| UPC | N/A |
What's Included
- 1x Zone Offroad ZOND4202 2-inch pre-assembled loaded strut (single)
About Zone Offroad
Zone Offroad engineers and manufactures suspension lift kits and components for full-size trucks covered by Factory Protection Plus, including a limited lifetime warranty, ESC system compliance testing, and a 5-year/100,000-mile drivetrain warranty. Zone Offroad builds systems that maintain factory ESC functionality, making them a trusted suspension brand for street-driven trucks.
Related Parts on Our Site
- Zone Offroad ZOND4402 2019-2026 RAM 1500 4-Inch Loaded Strut - Single - Higher lift option for the same RAM 1500 platform
- Zone Offroad ZOND5802 2025 RAM 1500 Front Bumper Spacer Kit - Adds bumper clearance for larger tire setups
Frequently Asked Questions
What is the Zone Offroad ZOND4202?The Zone Offroad ZOND4202 is a pre-assembled 2-inch loaded front strut for the 2019-2026 RAM 1500 4WD. It replaces the factory front strut with a purpose-built unit that levels the truck front to rear by adding 2 inches of front lift. It is sold as a single strut and is covered under Zone Offroad's Factory Protection Plus warranty program.
How many ZOND4202 struts do I need for my RAM 1500?This is a single strut listing. A complete front strut replacement requires two ZOND4202 units, one for each side. Order two to complete the driver and passenger front positions on your 2019-2026 RAM 1500.
What is the difference between the ZOND4202 and ZOND4402?Both are pre-assembled loaded struts for the 2019-2026 RAM 1500 4WD. The ZOND4202 delivers 2 inches of front lift for a leveled stance while the ZOND4402 delivers 4 inches for a more aggressive lifted profile. Choose based on your desired lift height and wheel and tire build goals.
Does the ZOND4202 require a spring compressor to install?No. The loaded strut comes fully assembled from the factory with the spring pre-compressed into the strut body. You do not need a spring compressor for installation, which simplifies the process and reduces the risk associated with spring compression work.
Will a 2-inch leveling kit on my RAM 1500 void my factory warranty?The Magnuson-Moss Warranty Act generally protects consumers from blanket dealer warranty denials related to aftermarket parts. However, if a dealer can demonstrate that the aftermarket suspension part directly caused a failure of a covered component, they may deny that specific claim. Zone Offroad's Factory Protection Plus and ESC system compliance reduce that risk, but consult with a legal or warranty specialist if warranty preservation is a priority for you.
What tires fit with a 2-inch level lift on the 2019-2026 RAM 1500?A 2-inch leveling lift on the 2019-2026 RAM 1500 typically accommodates 33 to 35-inch tires depending on wheel offset and backspacing. Refer to Zone Offroad's tire and wheel fitment recommendations for your exact year and trim configuration.
Is the Zone Offroad ZOND4202 compatible with the RAM 1500 eTorque hybrid?Confirm fitment for your specific configuration using Zone Offroad's fitment guide or by contacting Zone Offroad technical support with your VIN. eTorque and other special powertrain packages may have unique fitment considerations.
Is a front end alignment needed after installing the ZOND4202?Yes. A front end alignment is required after any front strut replacement to restore proper caster, camber, and toe settings at the new ride height. This ensures safe handling and prevents uneven tire wear.
Installation Instructions
- Safely lift and support the vehicle on jack stands at the frame rails with the front wheels hanging freely.
- Remove the wheel and tire on the side being serviced.
- Support the lower control arm or steering knuckle with a floor jack to avoid overextending the CV axle.
- Disconnect the sway bar end link and remove any brake line or ABS sensor wire brackets from the factory strut.
- From the engine bay, remove the upper strut tower mount nuts.
- Remove the lower strut-to-knuckle mounting bolt(s) and pull the factory strut assembly out of the vehicle.
- Insert the Zone Offroad ZOND4202 into the strut tower, aligning the upper mounting studs. Hand-thread the tower nuts.
- Insert the lower mounting bolt(s) through the steering knuckle and hand-thread.
- Torque all hardware to Zone Offroad specification per the included instruction sheet.
- Reinstall brake line and ABS brackets, and reconnect the sway bar end link.
- Reinstall the wheel and torque lug nuts to spec.
- Repeat on the opposite side, then perform a full front end alignment.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
