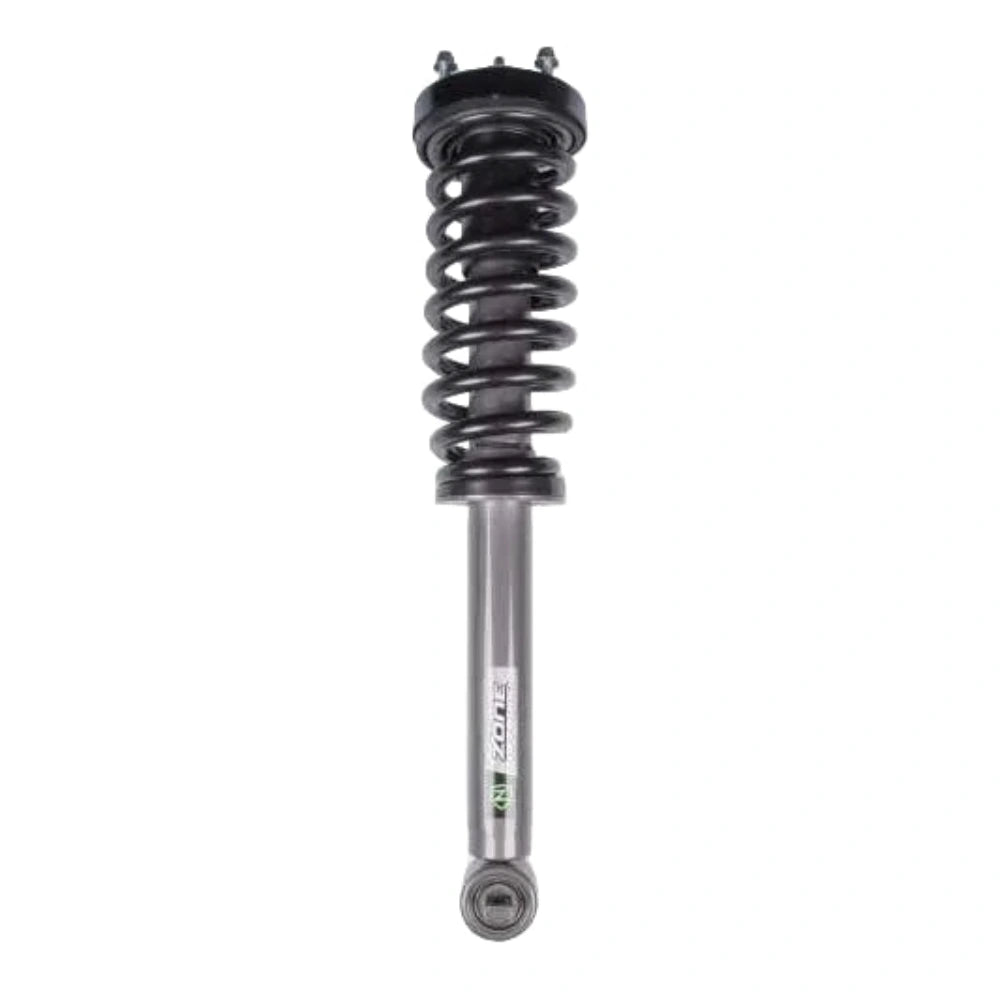

Lift Your 2019-2026 RAM 1500 4WD 4 Inches Up Front with the Zone Offroad ZOND4402 Pre-Assembled Loaded Strut
The Zone Offroad ZOND4402 is a pre-assembled loaded strut for the 2019-2026 RAM 1500 4WD that provides 4 to 5.5 inches of front lift. The factory RAM 1500 front suspension uses a coilover-style strut, and the ZOND4402 replaces the entire factory strut assembly with a purpose-built unit engineered for the lifted ride height. The loaded strut configuration means the coil spring, upper mount, and strut body come factory-assembled as a complete unit, requiring no spring compressor during installation. This approach eliminates the ride quality compromise of strut spacers, which stack on top of an existing factory strut, and instead provides a fresh, properly valved strut tuned for the additional lift. Zone Offroad covers the ZOND4402 under their Factory Protection Plus program, including a limited lifetime warranty and ESC system compliance. Sold as a single strut. Two units are required for a complete front strut pair.
Key Features
- Pre-assembled loaded strut for 2019-2026 RAM 1500 4WD front suspension
- Provides 4 to 5.5 inches of adjustable front lift height
- Replaces the complete factory strut assembly for optimal ride quality at the lifted height
- Loaded design: spring, mount, and strut body factory-assembled for tool-free spring handling
- Zone Factory Protection Plus: limited lifetime warranty and ESC system compliance testing
- Compatible with 35-inch tire fitment when paired with appropriate rear components
- Sold as a single unit
Vehicle Fitment
| Year Range | Make | Model |
|---|---|---|
| 2019-2026 | Ram | 1500 |
Specifications
| Detail | Value |
|---|---|
| Part Number | ZOND4402 |
| Brand | Zone Offroad |
| Lift Height | 4 to 5.5 inches (front, adjustable) |
| Type | Loaded strut (pre-assembled) |
| Quantity | Single strut |
| Fitment | 2019-2026 RAM 1500 4WD |
| Warranty | Factory Protection Plus Limited Lifetime Warranty |
| UPC | N/A |
What's Included
- 1x Zone Offroad ZOND4402 4-inch pre-assembled loaded strut (single)
About Zone Offroad
Zone Offroad is a US suspension manufacturer producing lift kits and components for full-size trucks backed by Factory Protection Plus, which includes a limited lifetime warranty, ESC system compliance testing to FMVSS 126, and a 5-year/100,000-mile drivetrain warranty. Zone Offroad lift systems are engineered to maintain factory electronic stability control function for legal, safe operation on public roads.
Related Parts on Our Site
- Zone Offroad ZOND4202 2019-2026 RAM 1500 2-Inch Loaded Strut - Single - Same platform, 2-inch lift option
- Zone Offroad ZOND5802 2025 RAM 1500 Front Bumper Spacer Kit - Bumper clearance kit for larger tire fitment
Frequently Asked Questions
What is the Zone Offroad ZOND4402?The Zone Offroad ZOND4402 is a pre-assembled 4 to 5.5-inch loaded front strut for the 2019-2026 RAM 1500 4WD. It replaces the entire factory front strut assembly with a purpose-built unit designed to deliver 4 inches of front lift as part of a Zone Offroad complete IFS lift system. It is sold as a single strut and covered under Factory Protection Plus.
Do I need two ZOND4402 struts for my RAM 1500?Yes. This listing is for a single strut. Two units are required to complete the front strut replacement on your 2019-2026 RAM 1500. Order two to equip both the driver and passenger sides.
How is a loaded strut different from a strut spacer?A strut spacer sits on top of the existing factory strut, raising ride height without replacing the factory shock valving. A loaded strut replaces the entire factory assembly, including the spring and strut body, with a unit tuned specifically for the lifted ride height. The loaded strut approach typically delivers better ride quality, more consistent performance, and longer service life at the lifted height compared to a strut spacer.
What size tires can I run with a 4-inch lift on the 2019-2026 RAM 1500?A 4-inch lift on the 2019-2026 RAM 1500 typically allows fitment of up to 35-inch tires, depending on wheel offset and backspacing. Refer to Zone Offroad's complete fitment guide for the ZOND4402 for verified wheel and tire combinations for your specific build.
Is the ZOND4402 compatible with the RAM 1500 eTorque or Rebel?Confirm fitment with Zone Offroad's application guide for your specific RAM 1500 configuration. Certain trim levels and powertrain combinations may have different fitment requirements. Use the Zone Offroad fitment tool or contact their technical support with your VIN before ordering.
Does the ZOND4402 require a front end alignment after installation?Yes. Any front suspension replacement on the RAM 1500 requires a front end alignment after installation to restore proper caster, camber, and toe settings for the lifted ride height. An alignment also ensures even tire wear and proper steering geometry.
What warranty comes with the Zone Offroad ZOND4402?The ZOND4402 is covered under Zone Offroad's Factory Protection Plus, which includes a limited lifetime warranty against defects in material and workmanship, ESC system compliance testing, and a 5-year/100,000-mile drivetrain warranty to the original retail purchaser.
Can the ZOND4402 be installed at home without a spring compressor?Yes. The loaded strut design comes fully assembled from the factory. No spring compressor is needed during installation. Standard hand tools, a floor jack, and a torque wrench are sufficient. A front end alignment is required after installation.
Installation Instructions
- Safely lift and support the vehicle on jack stands at the frame rails.
- Remove the wheel and tire on the side being serviced.
- Support the lower control arm or knuckle with a floor jack to prevent overextending the CV axle.
- Disconnect the sway bar end link and remove any brake line or ABS sensor brackets attached to the factory strut.
- Access the upper strut tower and remove the factory strut mount nuts.
- Remove the lower strut-to-knuckle bolt(s) and remove the factory strut assembly from the vehicle.
- Install the Zone Offroad ZOND4402 into the strut tower, aligning upper studs to the mounting holes. Hand-thread the upper nuts.
- Install the lower mounting bolt(s) and hand-thread.
- Torque all fasteners to Zone Offroad specification per the included instructions.
- Reinstall brake line brackets, ABS clips, and the sway bar end link.
- Reinstall the wheel and torque lug nuts to spec.
- Repeat on the opposite side and perform a full front end alignment before driving.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
