Blood Red Anodized Billet Control Arm Packages For Charger And Challenger

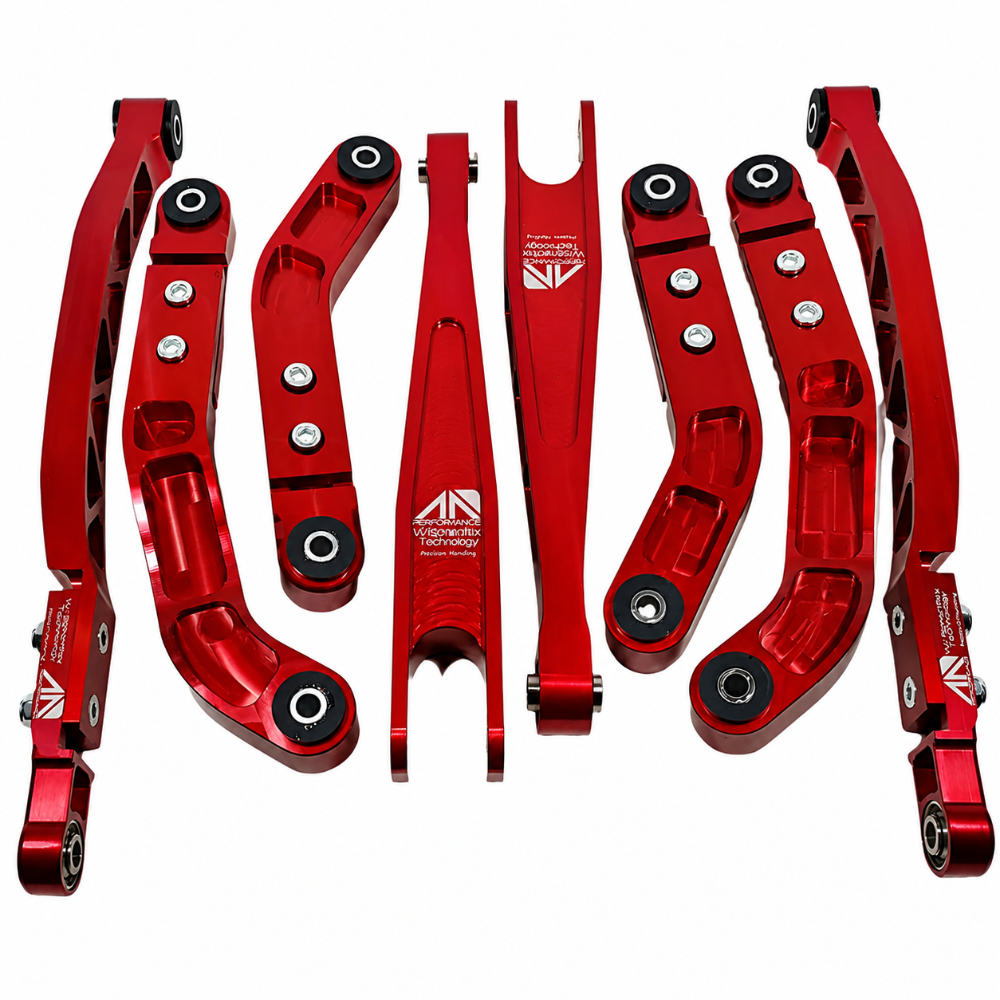

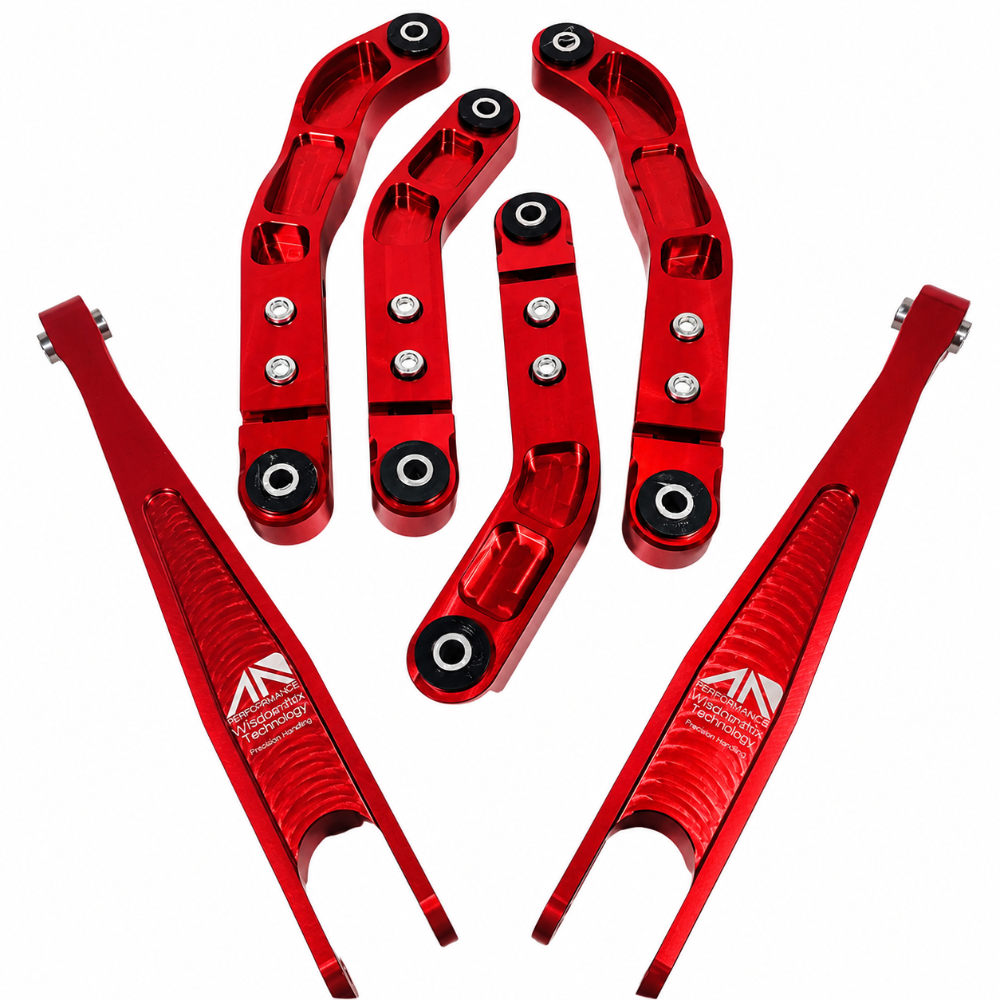

The AAD Performance Blood Red control arm kits bundle the company's billet suspension arms in Blood Red anodizing for the LX and LC Charger and Challenger. Three packages are offered: the C090-0000-R Wheel Hop Eliminator, the Drag Pak that adds adjustable toe links, and the complete front and rear Full Set. The manufacturer now offers the colour permanently rather than as a limited release.
Key Features
- Blood Red anodized 6061 billet aluminum arms throughout
- Wheel Hop Eliminator package: rear upper control arms plus rear lower trailing arms with Spheriflex
- Drag Pak package: rear upper control arms, rear lower trailing arms with Spheriflex and adjustable toe links

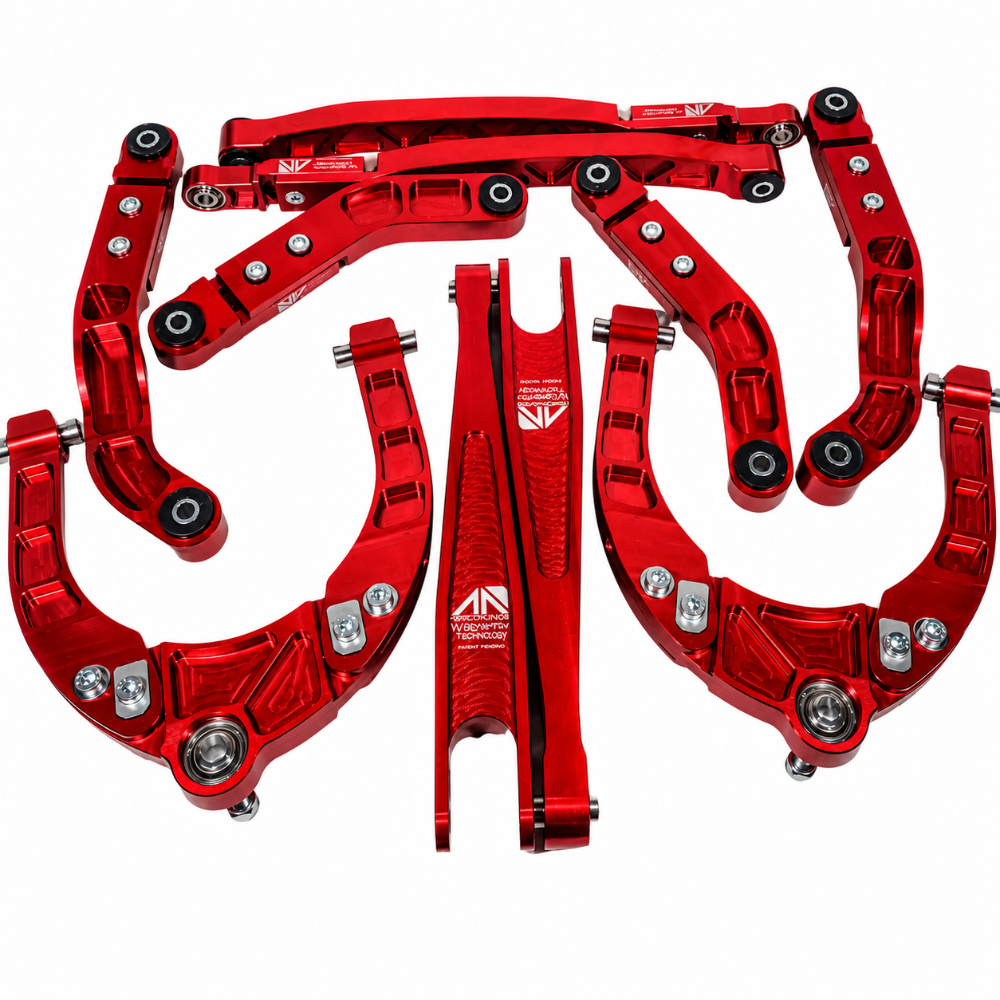

- Full Set package: the complete front and rear arm set in one order
- The C090-0000-R Wheel Hop Eliminator is the entry point in this colour
- Offered permanently, so the colour is no longer a limited edition
Fitment
| Make | Model | Years | Submodel |
|---|---|---|---|
| Dodge | Charger | 2006-2023 | All listed submodels |
| Dodge | Challenger | 2008-2023 | All listed submodels |
LX and LC platform Charger and Challenger. The retailer table lists 2015 to 2023 cars across most trims as a direct fit. Confirm the vehicle against this list before ordering the C090-0000-R.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part numbers | C090-0000-R Wheel Hop Eliminator, C091-0000-R Drag Pak, C093-0000-R Full Set |
| Material | 6061 billet aluminum |
| Finish | Blood Red anodize |
| Bearings | Spheriflex in the trailing arms |
| Availability | Offered permanently, not a limited run |
| Shipping weight | 30.0 lb |
| Lead time | 5 to 10 days |
| Country of manufacture | United States |
All specifications listed here are published by the manufacturer for the C090-0000-R.
What's Included
- Wheel Hop Eliminator: rear upper control arms and rear lower trailing arms with Spheriflex
- Drag Pak: rear upper control arms, rear lower trailing arms with Spheriflex and adjustable toe links
- Full Set: the complete front and rear arm package
- Mounting hardware, adjustment tabs and instructions with each kit
About AAD Performance
AAD Performance, also listed under the All Angles Design vendor name, designs and machines billet aluminum suspension, driveline and engine hardware in Kansas City, Missouri. The company is known for its patent pending Spheriflex bearing, its tab-lock adjustment system and OEM-CAD derived fitment, and it manufactures, assembles and packages its parts in the United States.
Warranty: AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Related Parts
- AAD Wheel Hop Eliminator Kit
- AAD Adjustable Billet Rear Toe Arms
- AAD Billet Front Upper Control Arms
FAQ
What is the C090-0000-R?It is the AAD Performance Blood Red Wheel Hop Eliminator package, the rear upper control arm and trailing arm kit in this colour.
How many packages are offered?Three: the Wheel Hop Eliminator, the Drag Pak and the complete front and rear Full Set.
What does the Drag Pak add?It adds adjustable toe links to the rear upper control arms and Spheriflex trailing arms.
What is in the Full Set?The complete front and rear arm package, described by the manufacturer as the do-it-once option.
Is Blood Red still a limited colour?No. The manufacturer states the colour is now offered permanently.
What is the finish?The arms are 6061 billet aluminum with Blood Red anodizing.
What is the lead time?The manufacturer quotes five to ten days for these kits.
Which cars do these fit?LX and LC platform Charger and Challenger models, with the retailer listing 2015 to 2023 cars across most trims.
Is an alignment needed?Yes. Any of these packages changes suspension geometry, so the car must be aligned afterwards.
What warranty applies?AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Installation Instructions
- Choose the package that matches the work being done and confirm the vehicle body style.
- Raise and safely support the vehicle and remove the affected wheels.
- Unload the suspension before loosening any arm hardware.
- Replace the rear lower trailing arms one side at a time.
- Replace the rear upper control arms and fit the required offset tabs.
- Fit the adjustable toe links if the Drag Pak or Full Set was ordered.
- Fit the front upper control arms if the Full Set was ordered.
- Torque all fasteners to factory specification at ride height.
- Align the vehicle and confirm camber and toe values against the manufacturer instruction sheets.
