Higher Clamp Load For Serious R34 GT-R Power

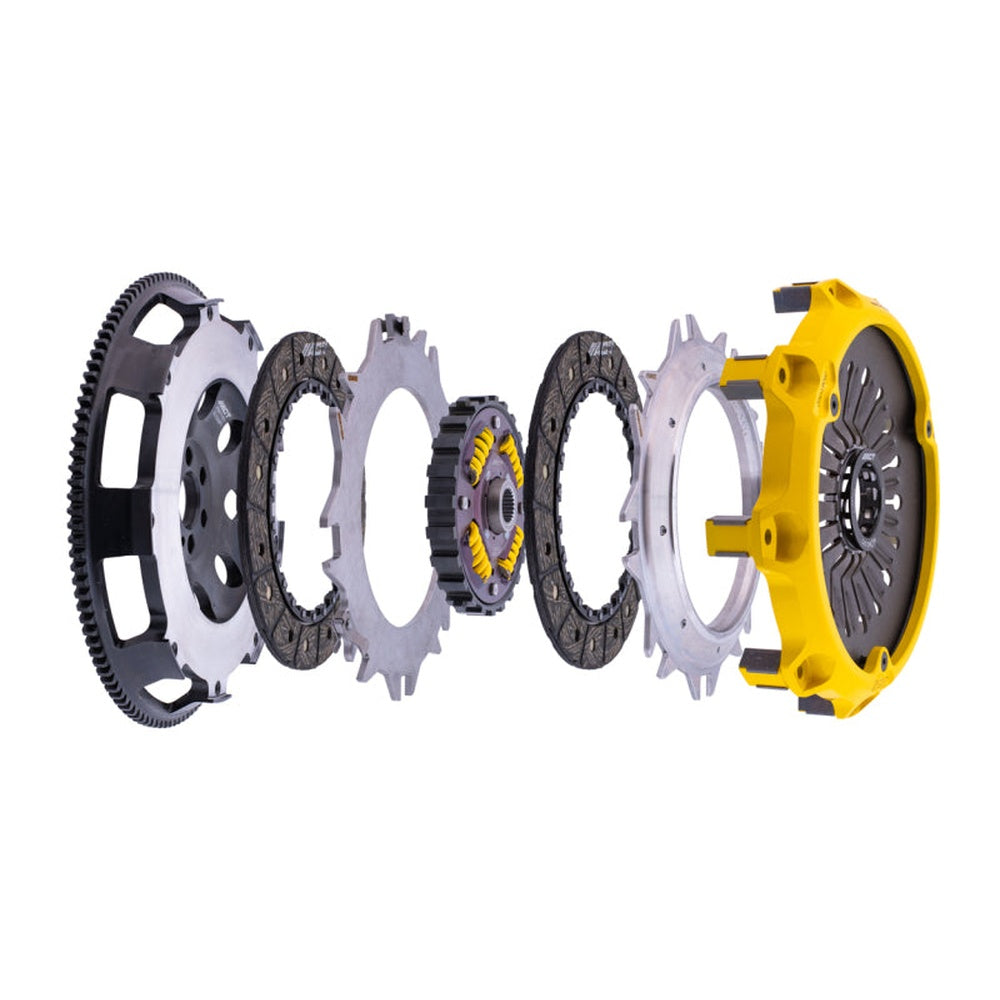

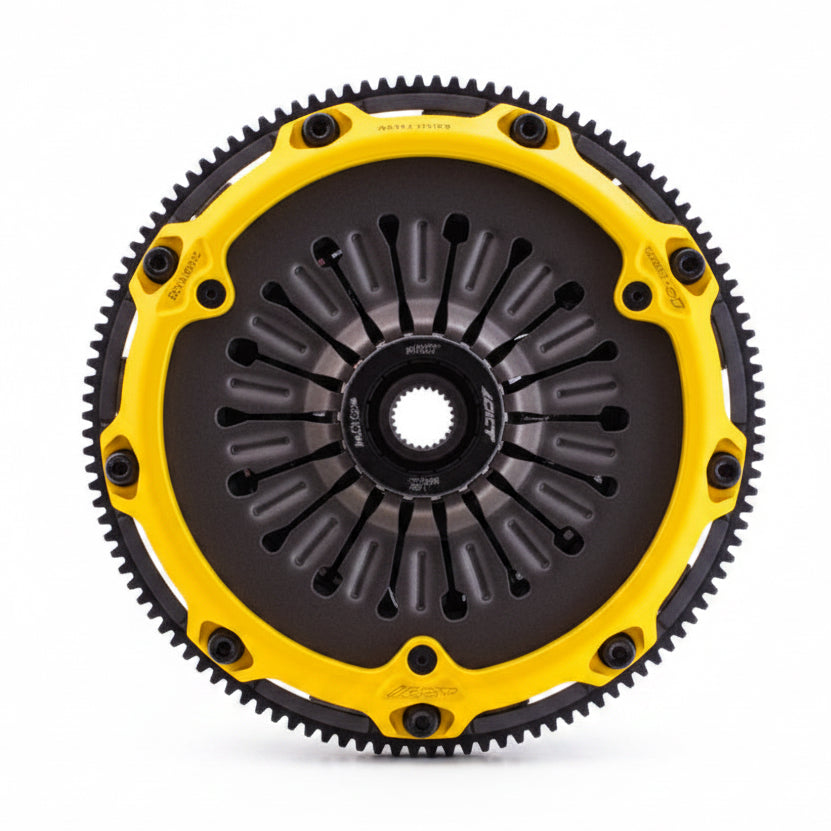

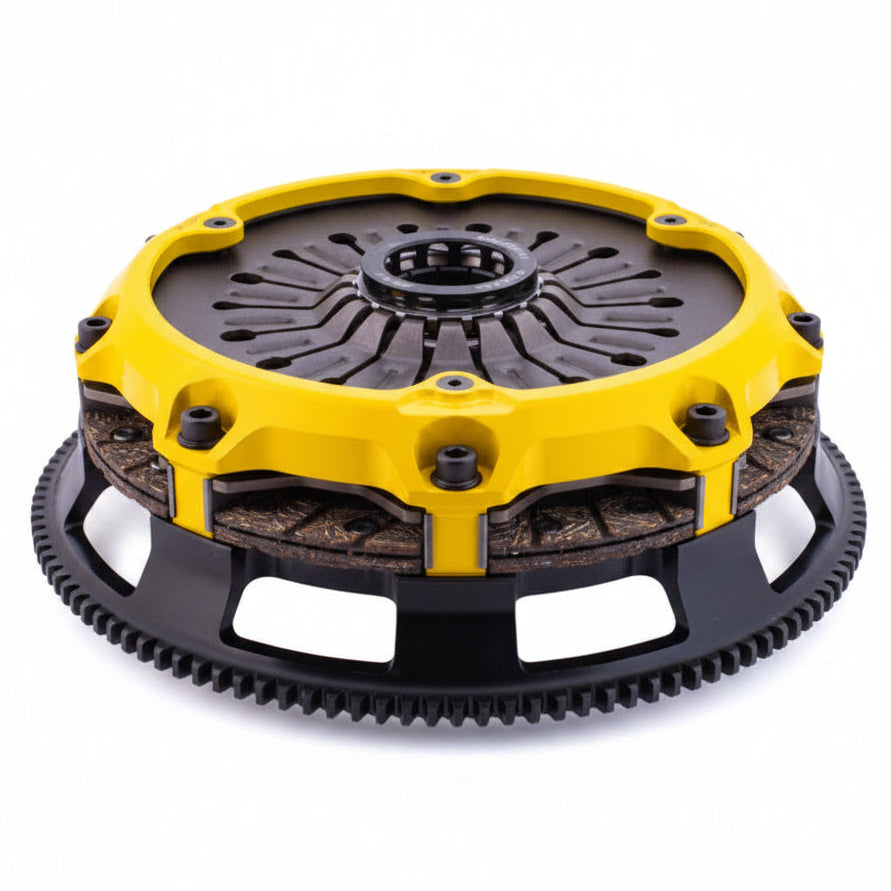

The ACT T2SS-N04 Mod-Twin 225 XT Sprung Street clutch kit steps up from the standard HD offering with an increased clamp load, giving RB26DETT-powered R34 GT-R owners more holding capacity for higher-output builds. Like other Mod-Twin kits, the T2SS-N04 doubles the organic friction surface area of a single-disc clutch, so it manages torque through the factory AWD driveline without the abrupt engagement typical of a full race clutch. The T2SS-N04 pressure plate uses ACT's four-stage heat-treated diaphragm springs, engineered to hold consistent clamp force through repeated high-load cycles. A chromoly XACT Streetlite flywheel ships as part of the T2SS-N04 kit, matched to the clutch assembly so the whole rotating system is balanced and ready to install together.
Key Features
- T2SS-N04 uses a 225mm Mod-Twin pull-type design rated up to 875 ft-lb of torque capacity
- Extreme Sprung Street clamp load, higher than the HD variant, for higher-output RB26DETT builds
- Doubled organic friction surface area for high-power AWD applications
- Four-stage heat-treated diaphragm springs for consistent clamp force

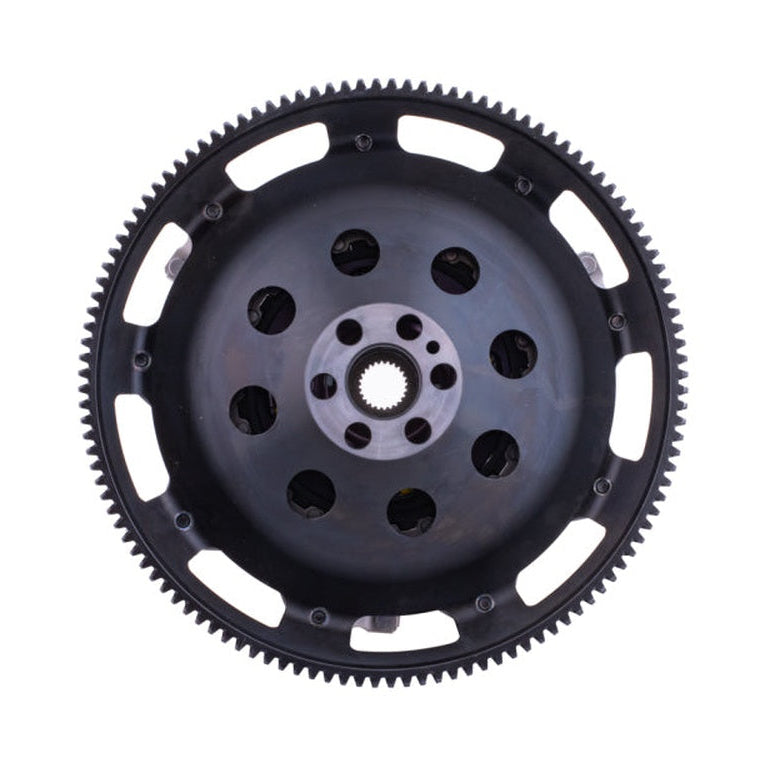

- Includes a chromoly XACT Streetlite flywheel matched to the T2SS-N04 kit
- Sprung Mono-Drive hub reduces driveline shock versus a rigid race disc
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 1999-2002 | Nissan | Skyline GT-R | R34 |
Specifications
| Detail | Value |
|---|---|
| MPN | T2SS-N04 |
| Clutch Diameter | 225mm |
| Design | Mod-Twin pull-type, sprung disc, Extreme clamp load |
| Torque Capacity | Up to 875 ft-lb |
| Hub Type | Sprung Mono-Drive |
| Flywheel Included | Chromoly XACT Streetlite |
| Engine Application | 2.6L Twin Turbo RB26DETT |
| Transmission | 6-speed manual |
What's Included
- 1x T2SS-N04 Mod-Twin 225 XT Sprung Street clutch disc set and pressure plate assembly
- 1x Chromoly XACT Streetlite flywheel
- Clutch hardware, release bearing, pilot bearing, and alignment tool
About ACT
Advanced Clutch Technology (ACT) builds its Mod-Twin lineup, including the T2SS-N04, around modular twin-disc assemblies that let R34 GT-R owners select the clamp load matched to their power level. ACT's heat-treating process is designed to keep the T2SS-N04 clamp force stable through extended high-load use on the street or at the track.
Related Parts
- ACT 07-11 Mazdaspeed 3 Performance Street Sprung Disc
- ACT 2006 Mazda 6 Perf Street Sprung Disc
FAQ
What is the T2SS-N04?The T2SS-N04 is an ACT Mod-Twin 225 XT Sprung Street clutch kit for the 1999-2002 Nissan Skyline GT-R (R34), using a higher clamp load than the HD version and rated up to 875 ft-lb of torque capacity.
What is the difference between the T2SS-N04 and the T1SS-N04?The T2SS-N04 uses ACT's Extreme clamp load setting, which provides higher holding capacity than the T1SS-N04's HD clamp load, while both share the same 225mm Mod-Twin sprung disc design and flywheel.
Does the T2SS-N04 include a flywheel?Yes, the T2SS-N04 kit includes a chromoly XACT Streetlite flywheel matched to the clutch assembly, along with hardware, release bearing, pilot bearing, and alignment tool.
Is the T2SS-N04 street driveable?The T2SS-N04 is part of ACT's Sprung Street line, engineered to keep engagement manageable for street driving despite its higher clamp load and torque capacity.
What torque capacity does the T2SS-N04 support?The T2SS-N04 Mod-Twin design is rated to handle up to 875 ft-lb of torque, suitable for heavily built RB26DETT engines with significant power increases.
Does the T2SS-N04 fit the R34 GT-R 6-speed transmission?Yes, the T2SS-N04 is designed to bolt in to the factory 6-speed manual transmission used in the 1999-2002 Nissan Skyline GT-R (R34).
Why choose the T2SS-N04 over a single-disc clutch?The T2SS-N04 uses two friction discs to double the available friction surface area versus a single-disc clutch, allowing it to handle more torque without the pedal effort increasing as dramatically.
Will the T2SS-N04 fit an R32 or R33 GT-R?No, the T2SS-N04 is engineered specifically for the R34 GT-R's factory bellhousing and flywheel bolt pattern and is not listed as a direct fit for R32 or R33 chassis.
Install Instructions
- Remove the transmission from the vehicle following the factory service procedure for the R34 GT-R.
- Remove the factory flywheel, pressure plate, and clutch disc from the crankshaft flange.
- Install the T2SS-N04 chromoly XACT Streetlite flywheel and torque the mounting bolts to factory specifications.
- Center the T2SS-N04 clutch disc using the supplied alignment tool, then bolt on the pressure plate assembly.
- Install the new pilot bearing and release bearing included with the T2SS-N04 kit.
- Reinstall the transmission, reconnect the hydraulic clutch line, and bleed the clutch system before test driving.
