ACT EVO 8/9 5-Speed Only Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

ACT
ACTT1S-M03
842385025328
Clutch Kits - Multi
2 Units In Stock - Ships Next Business Day
$ 2,409.00 $ 1,951.00
FREE Ground Shipping!
$ 1,951.00

ACT Mod-Twin 225 HD Rigid Street: T1S-M03. Excellence in Performance, backed by the best one-year warranty in the industry!

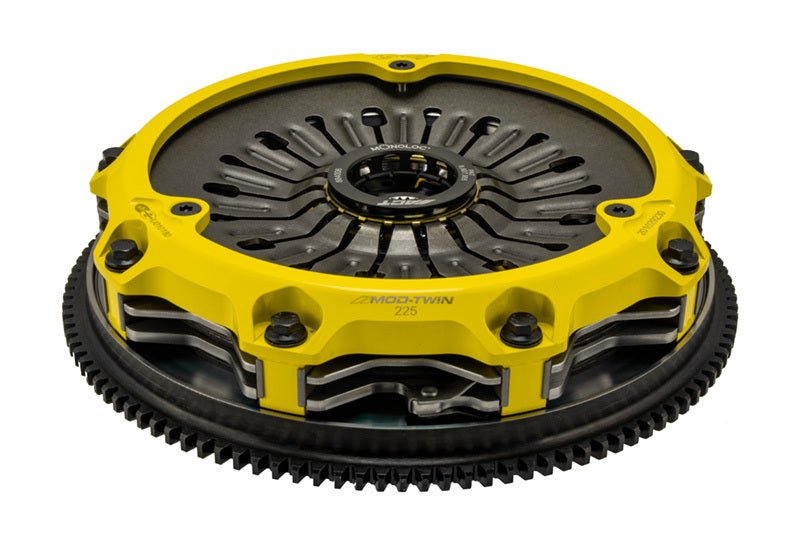

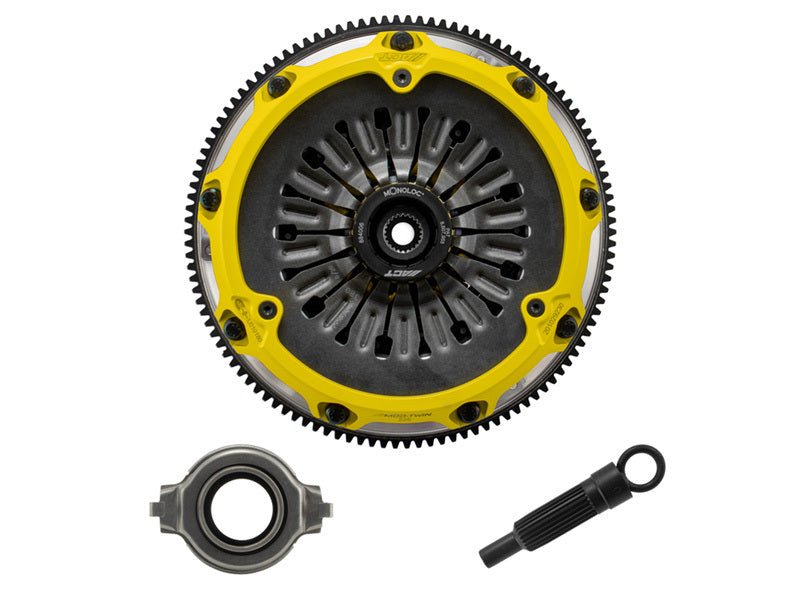

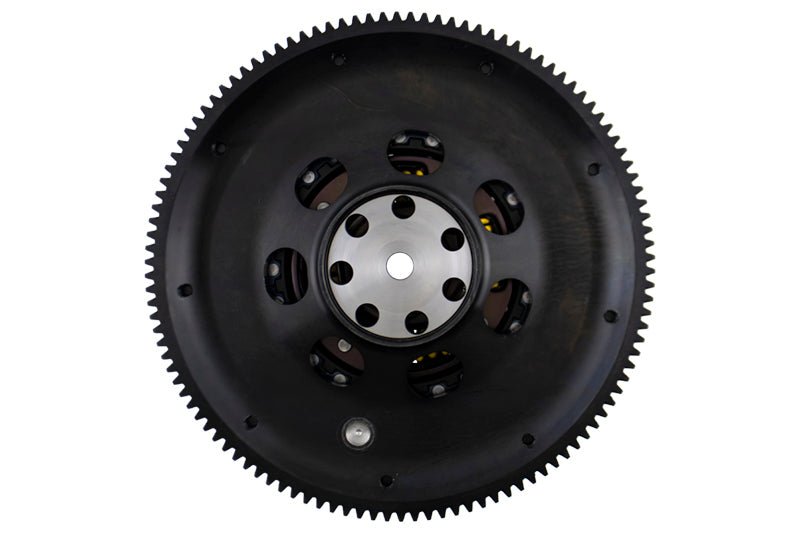

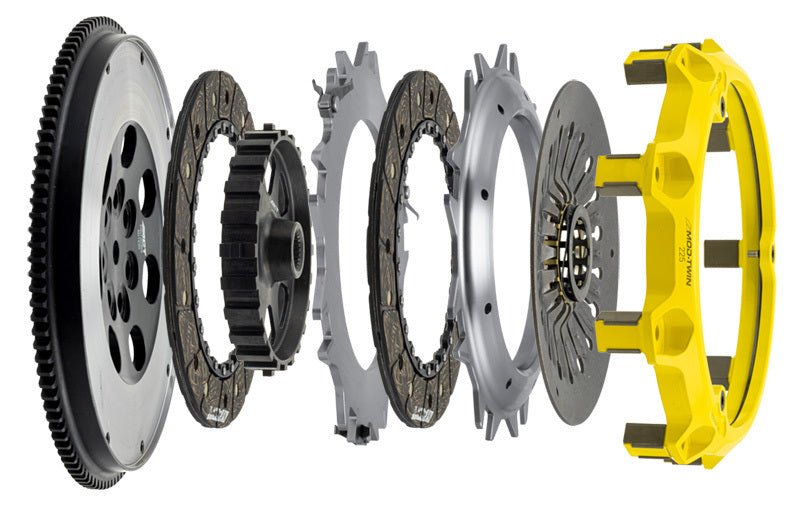

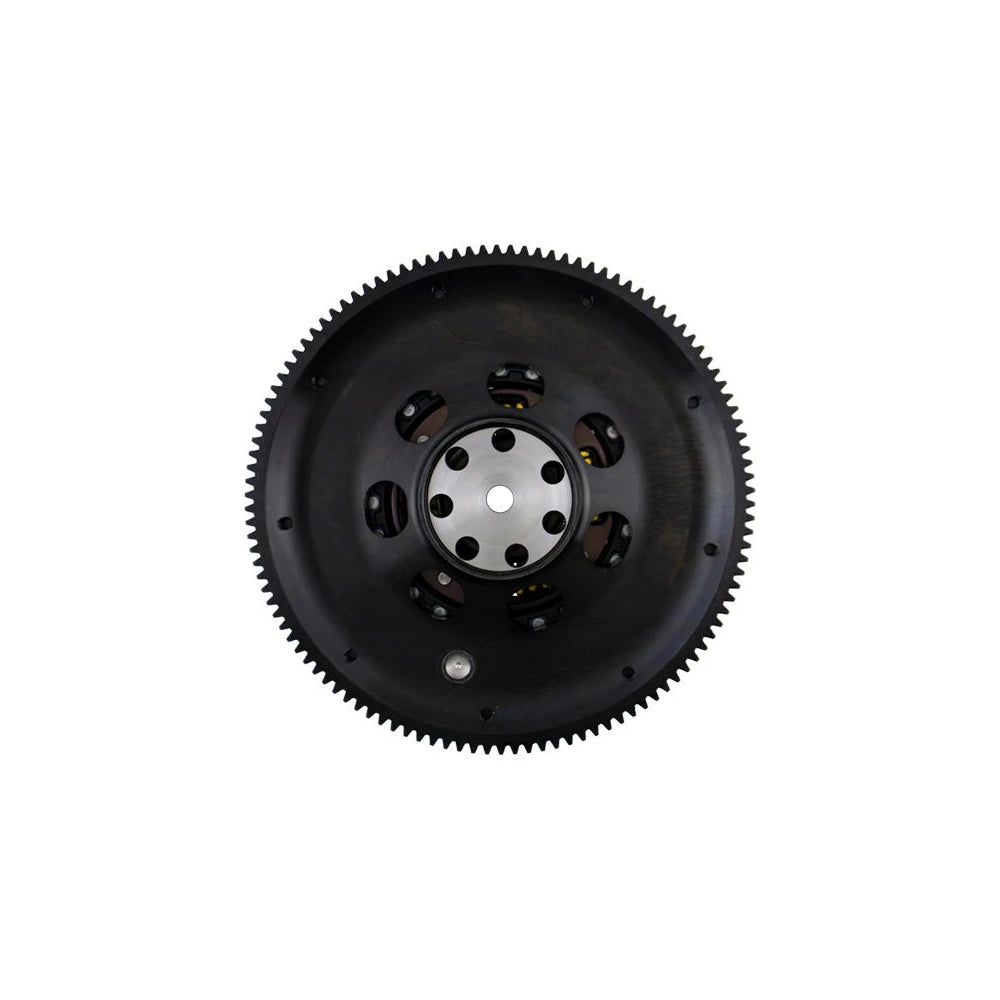

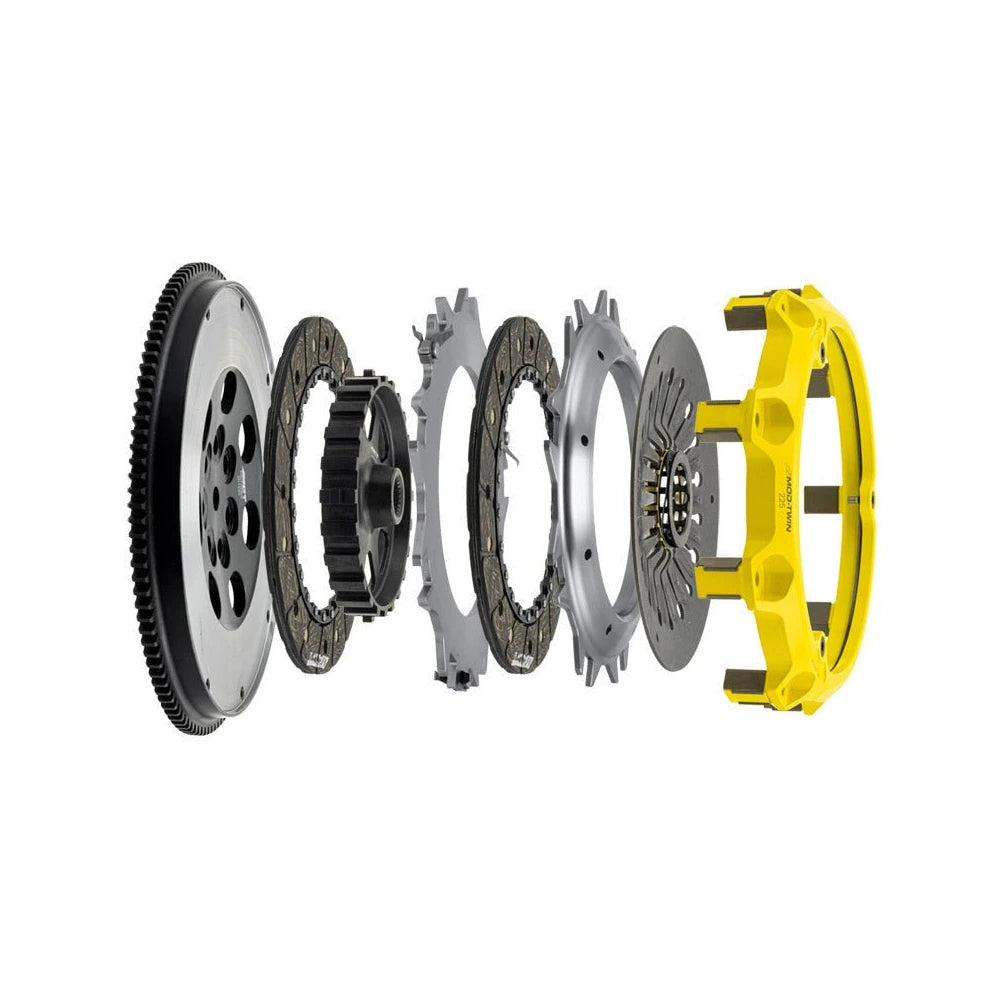

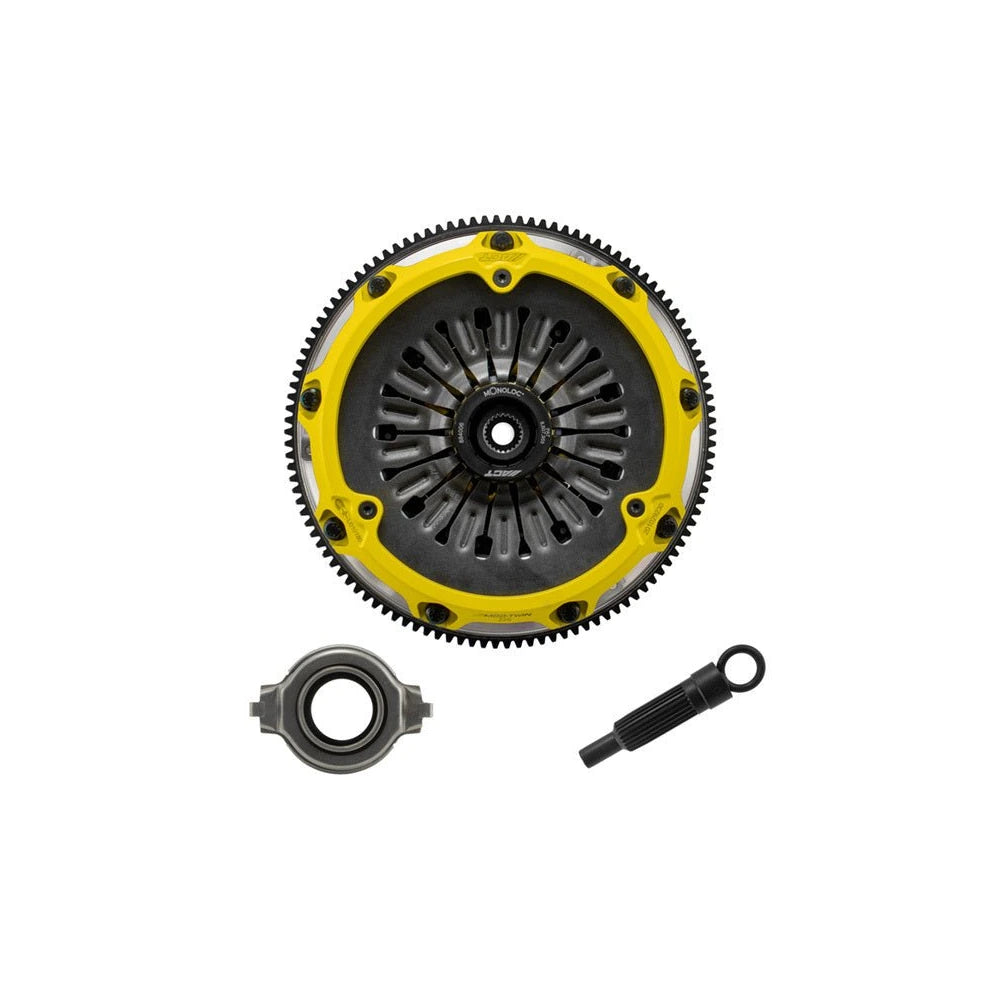

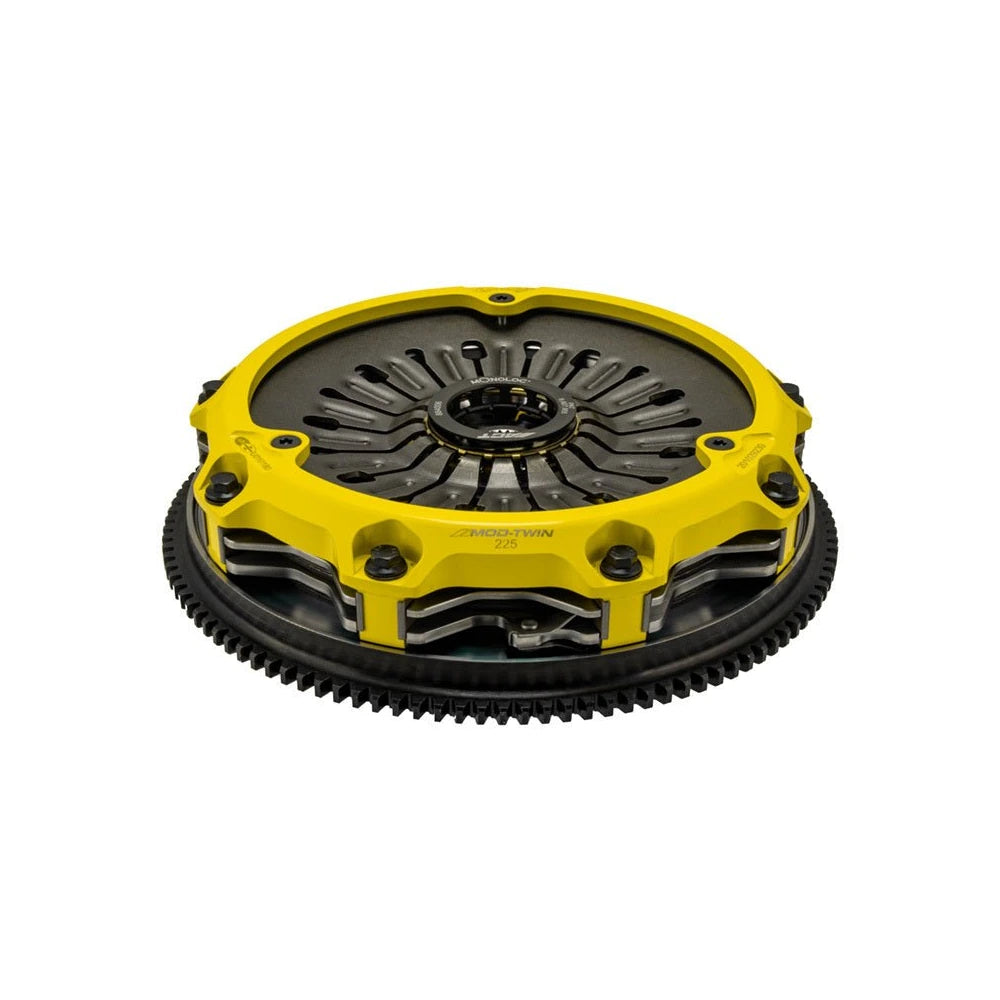

T1S-M03 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

  • Clutch Master Cylinder Included:No
  • Grease Included:Yes
  • Grade Type:Performance
  • Flywheel Included:Yes
  • Pressure Plate Type:Heavy Duty
  • Release Bearing Included:Yes
  • Clutch Disc Diameter:8.8 IN
  • Disc Material:Organic
  • Input Spline Quantity:23
  • Input Shaft Diameter:1 IN
  • Alignment Tool Included:Yes
  • Disc Type Sprung Solid:Solid
  • New Or Remanufactured Clutch:New
  • Clutch Slave Cylinder Included:No
  • Flywheel Bolts Included:No
  • Product Weight (lbs.):28.1
  • Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
  • Prop 65 Yes/No:Yes
  • SFI:1.2
  • Title:ACT Mod-Twin 225 HD Rigid Street
  • Torque Capacity (ft/lbs.):700
  • Torque Capacity Over OE:97%
  • Clutch Disc Diameter:225 mm
