BorgWarner SuperCore Assembly SX-E S300SX-E 72mm 9180 - Black Ops Auto Works
Click to zoom in

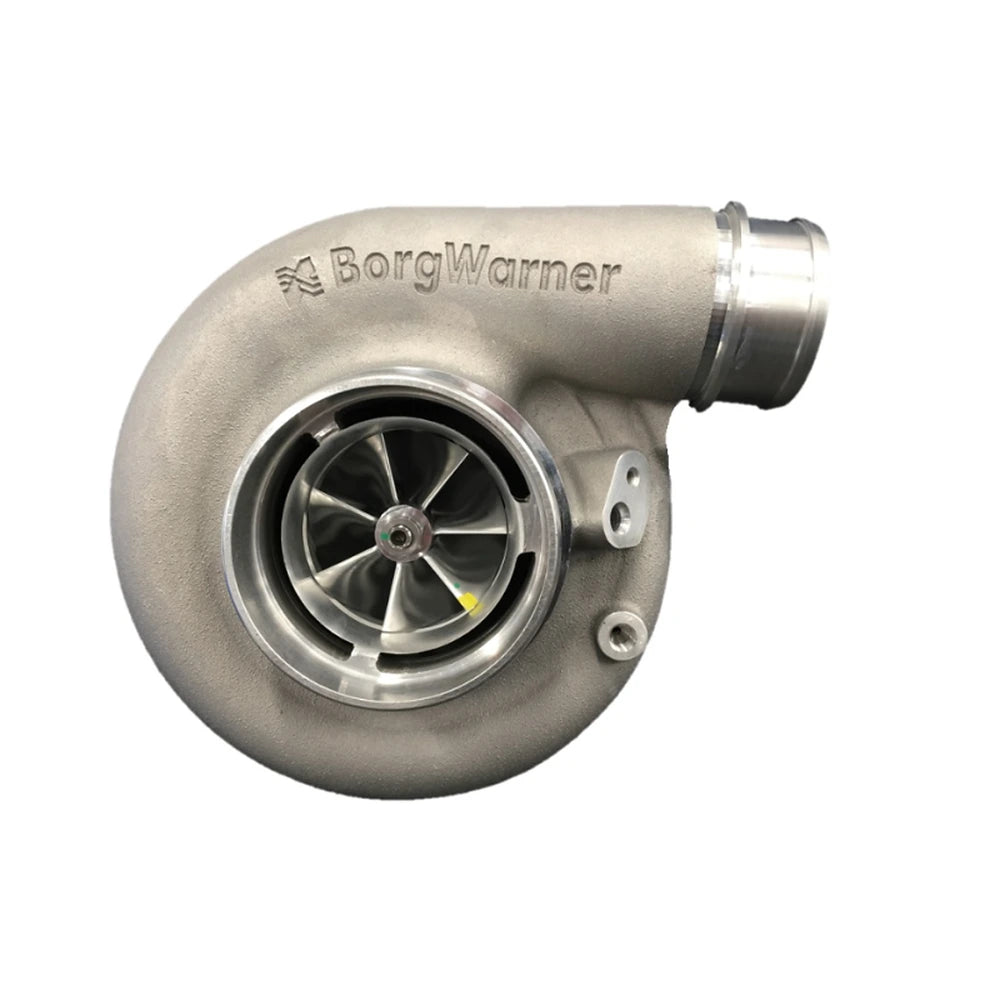

BorgWarner SuperCore Assembly SX-E S300SX-E 72mm 9180

BorgWarner
BWA13009095091
840232715750
Super Core Assemblies
7 Units In Stock - Ships Next Business Day
$ 1,528.19 $ 1,222.55
$ 1,222.55

SKU: 13009095091 | UPC: 840232715750

BorgWarner SuperCore Assembly SX-E S300SX-E 72mm 9180 for 2003-2007 Ram Cummins 5.9L

The BorgWarner SuperCore Assembly SX-E S300SX-E 72mm 9180 forms the center section of S300 frame turbochargers for diesel performance builds. It bolts into T4 manifolds on 2003-2007 Ram 2500/3500 5.9L Cummins and similar applications with matching housings. This core delivers high airflow and quick response for power gains beyond 800 HP.

Key Features

  • 72mm Billet Compressor Wheel: 72mm inducer 96mm exducer 10-blade extended tip design flows 90+ lb/min for strong mid-range torque and top-end power
  • 80mm Inconel Turbine Wheel: 80mm inducer 74mm exducer forged wheel handles 1600F+ exhaust temps with efficient energy transfer
  • Dual Ball Bearing CHRA: Journal and thrust bearings reduce friction for 25% faster spool-up and 50K+ mile durability
  • SX-E External Wastegate Ready: Compact housing design pairs with 9180 T4 divided 0.91 A/R turbine housing for precise boost control
  • SuperCore Build Flexibility: Bare rotating assembly mates with stock or aftermarket compressor turbine housings for custom turbo setups

Product Notes

  • Requires separate turbine and compressor housings for complete turbo assembly
  • Oil feed line and coolant ports match factory S300 specifications
  • Securely packaged to prevent damage during transit

Installation Notes

  • Professional installation recommended.
  • Prime oil system and verify clearances before startup
  • Bolts directly to S300 T4 divided housings and manifolds

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 Pickup 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 Pickup 5.9L Cummins Diesel
1998.5-2002 Dodge Ram 2500 Pickup 5.9L Cummins Diesel
1998.5-2002 Dodge Ram 3500 Pickup 5.9L Cummins Diesel
2007.5-2018 Dodge Ram 2500 Pickup 6.7L Cummins Diesel
2007.5-2018 Dodge Ram 3500 Pickup 6.7L Cummins Diesel

Why Choose BorgWarner?

  • Engineered for OE Cummins applications and NHRA Pro Street racing
  • High-temperature materials ensure consistent performance under boost
  • Machined to micron tolerances for balance and reliability

Frequently Asked Questions

  • Q: Will this SuperCore fit my 2004 Ram 2500 5.9L Cummins?
    A: Yes it matches the factory S300 frame and T4 manifold bolt pattern with 9180 housing
  • Q: What materials are used in construction?
    A: Billet aluminum compressor wheel Inconel turbine wheel 347SS bearing housing for heat resistance
  • Q: What warranty coverage applies?
    A: Backed by BorgWarner 12-month unlimited mileage warranty when properly installed

Shipping & Handling

  • Method: Standard ground shipping
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected in 15in x 15in x 15in box
  • Weight: 20 lbs
