BorgWarner SuperCore Assembly SX-E S300SX-E 62mm Inducer 8776 - Black Ops Auto Works
Click to zoom in

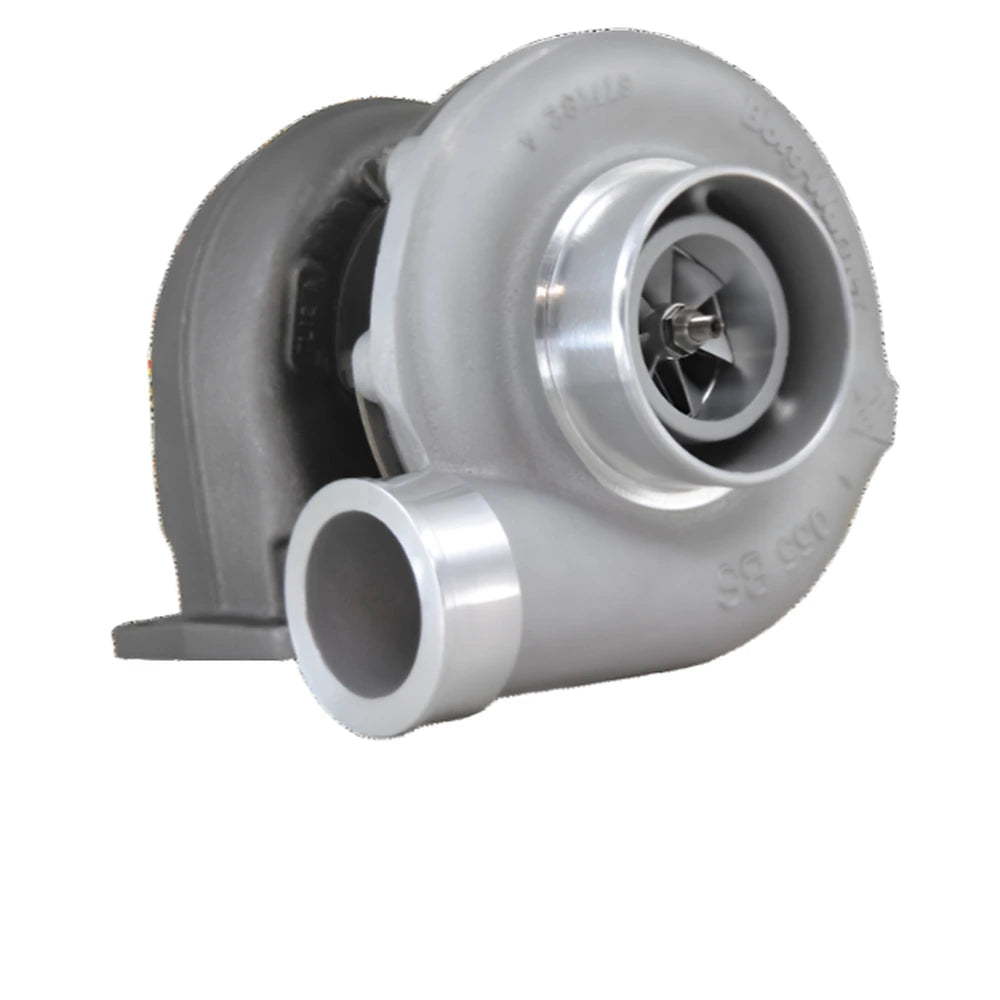

BorgWarner SuperCore Assembly SX-E S300SX-E 62mm Inducer 8776

BorgWarner
BWA13009097006
840232716207
Super Core Assemblies
7 Units In Stock - Ships Next Business Day
$ 1,319.49 $ 1,055.60
$ 1,055.60

SKU: 13009097006 | UPC: 840232716207

Universal BorgWarner SuperCore Assembly SX-E S300SX-E 62mm Inducer 8776

BorgWarner SuperCore Assembly SX-E S300SX-E 62mm Inducer 8776 is the complete rotating group for building high performance S300SX-E frame turbos. This ball bearing CHRA fits custom turbo setups on 5.9L/6.7L Cummins, 6.6L Duramax, and 6.7L Powerstroke engines for 900-1100 HP power levels. Pair it with T4 turbine housings and compressor covers for massive airflow in diesel and gas applications.

Key Features

  • 62mm Billet Compressor Wheel: 62.0mm inducer and 83.0mm exducer with 57 trim delivers 110+ lbs/min flow for quick spool and top end power
  • 80/67.5mm Inconel Turbine Wheel: 80.0mm inducer 67.5mm exducer 71 trim withstands 1400+ degree EGT for extreme endurance
  • Dual Ceramic Ball Bearing Cartridge: Supports 170,000+ RPM with low friction for faster transient response and longer life
  • Factory Balanced Assembly: Precision machined shaft and thrust components ensure vibration-free operation at high boost
  • SuperCore Design: Modular setup bolts into any S300SX-E housing combo including T4 divided 0.91 1.00 1.15 A/R

Product Notes

  • Requires separate compressor cover and turbine housing for complete turbo assembly
  • Designed for performance applications over 800 HP with proper fueling and tuning
  • Packaged in protective foam insert within sturdy cardboard box

Installation Notes

  • Professional installation recommended.
  • Requires VSR balancing confirmation post housing assembly
  • Compatible with T4 turbine housings and S300SX-E compressor covers

This Part Fits

Year Make Model Submodel
2003-2007 Dodge/Ram 2500/3500 5.9L Cummins
2007.5-2022 Dodge/Ram 2500/3500 6.7L Cummins
2011-2016 Chevrolet/GMC 2500HD/3500HD 6.6L LML Duramax
2017-2022 Chevrolet/GMC 2500HD/3500HD 6.6L L5P Duramax
2011-2019 Ford F-250/F-350/F-450 6.7L Powerstroke

Why Choose BorgWarner?

  • Leading turbo supplier to OE and racing teams worldwide
  • Proven components in NHRA PDRA and diesel sled pulling
  • Exact engineering tolerances for consistent boost response

Frequently Asked Questions

  • Q: What vehicles does the S300SX-E 62mm super core fit?
    A: Builds for 2003-2022 Cummins 5.9L/6.7L Ram trucks, 2011-2022 6.6L Duramax Silverado/Sierra, and 2011-2019 6.7L Powerstroke Super Duty with matching housings
  • Q: What materials are used in construction?
    A: 2618 billet aluminum compressor wheel, 400+ degree Inconel turbine wheel, and ceramic hybrid ball bearings for heat and speed resistance
  • Q: What is the warranty and install process?
    A: 1 year unlimited mileage warranty with professional install. Assemble housings, oil feed/drain lines, and tune ECU for boost targets

Shipping & Handling

  • Method: Standard ground via UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected in 14x14x14 inch box
  • Weight: 13.8 lbs net, 16 lbs shipping
