SKU: 13009097051 | UPC: 840232716924

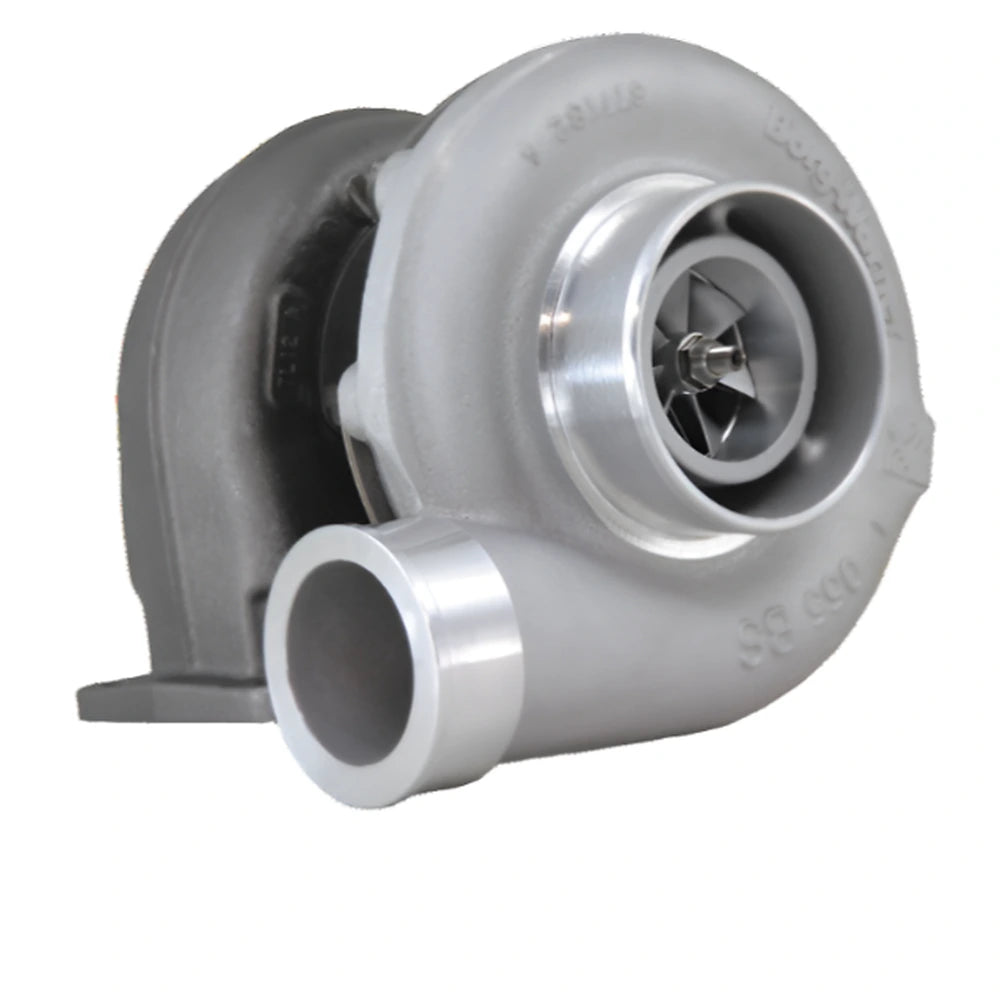

BorgWarner SuperCore Assembly SX-E S300SX-E 9180 (69mm Ind. / 91mm Exd.) for 2003-2023 Dodge Ram Cummins Ford Powerstroke GM Duramax
The BorgWarner SuperCore Assembly SX-E S300SX-E 9180 delivers massive airflow with its 69mm inducer and 91mm exducer compressor wheel. This super core fits S300SX-E turbine and compressor housings for custom turbo builds in high-horsepower diesel trucks like Dodge Ram Cummins Ford Powerstroke and GM Duramax. Supports 1000-1400HP applications with quick spool and top-end power.
Key Features
- Compressor Wheel: 69mm inducer 91mm exducer billet extended-tip design flows 110+ lb/min air for extreme power gains
- Turbine Wheel: 91mm exducer matched to S300SX-E frame provides fast response and high exhaust flow handling
- Bearing System: Dual hydrodynamic journal bearings with 360-degree thrust surface support 170000+ RPM operation
- Center Housing: Oil-cooled cartridge ready for integration into T4 T5 V-band housings
- Construction: Inconel turbine wheel and billet compressor endure high heat and boost levels
Product Notes
- Super core only requires separate S300SX-E housings turbine scroll compressor cover and oil lines
- Designed for performance builds verify housing compatibility before purchase
- Heavy-duty component handle with care during assembly
Installation Notes
- Professional installation recommended.
- Match with S300SX-E T4 divided or open housings and V-band clamps
- Prime oil system and use high-quality synthetic oil for longevity
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins Diesel |
| 2007.5-2023 | Ram | 2500 | 6.7L Cummins Diesel |
| 2007.5-2023 | Ram | 3500 | 6.7L Cummins Diesel |
| 2011-2023 | Ford | F-250 Super Duty | 6.7L Powerstroke Diesel |
| 2011-2023 | Ford | F-350 Super Duty | 6.7L Powerstroke Diesel |
| 2006-2010 | Chevrolet | 2500HD | 6.6L Duramax Diesel |
| 2006-2010 | GMC | 2500HD | 6.6L Duramax Diesel |
Why Choose BorgWarner?
- Racing teams rely on it for drag strip and sled pulling victories
- Components built to OEM standards with performance enhancements
- Engineered for durability in 1000HP+ street and track use
Frequently Asked Questions
-
Q: What vehicles can use this S300SX-E super core?
A: Compatible with S300SX-E housings on 2003+ Cummins Dodge Rams Ford 6.7L Powerstroke and GM Duramax trucks confirm housing match for your setup -
Q: What materials are used in the wheels?
A: Billet aluminum compressor wheel with extended tips and Inconel turbine wheel for heat resistance up to 1050C -
Q: What is the warranty coverage?
A: BorgWarner provides 1-year limited warranty against defects when installed and maintained properly by certified technicians
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 14 x 14 x 14 inches
- Weight: 28 lbs
