BorgWarner SuperCore Assembly SX-E S400SX-E 76mm 100/87 - Black Ops Auto Works
Click to zoom in

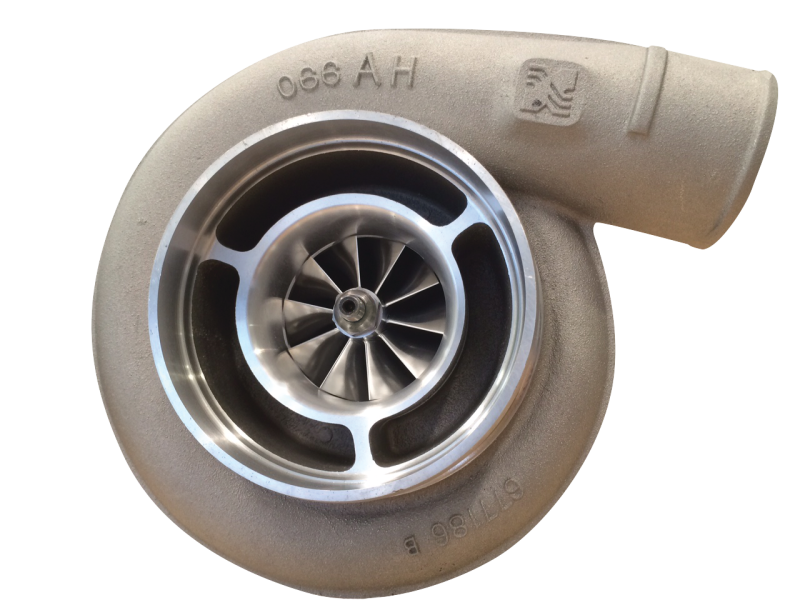

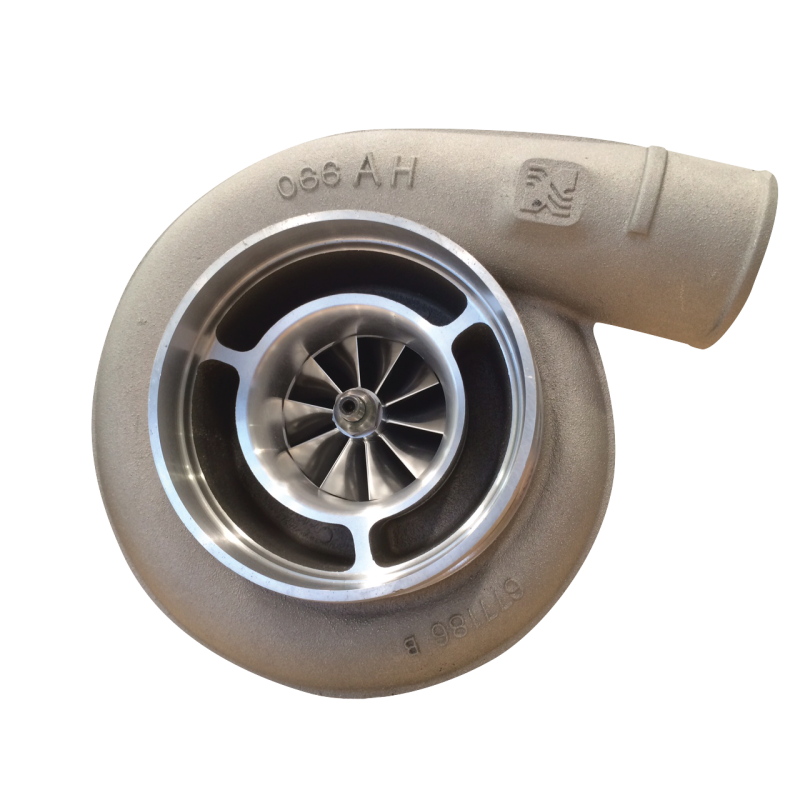

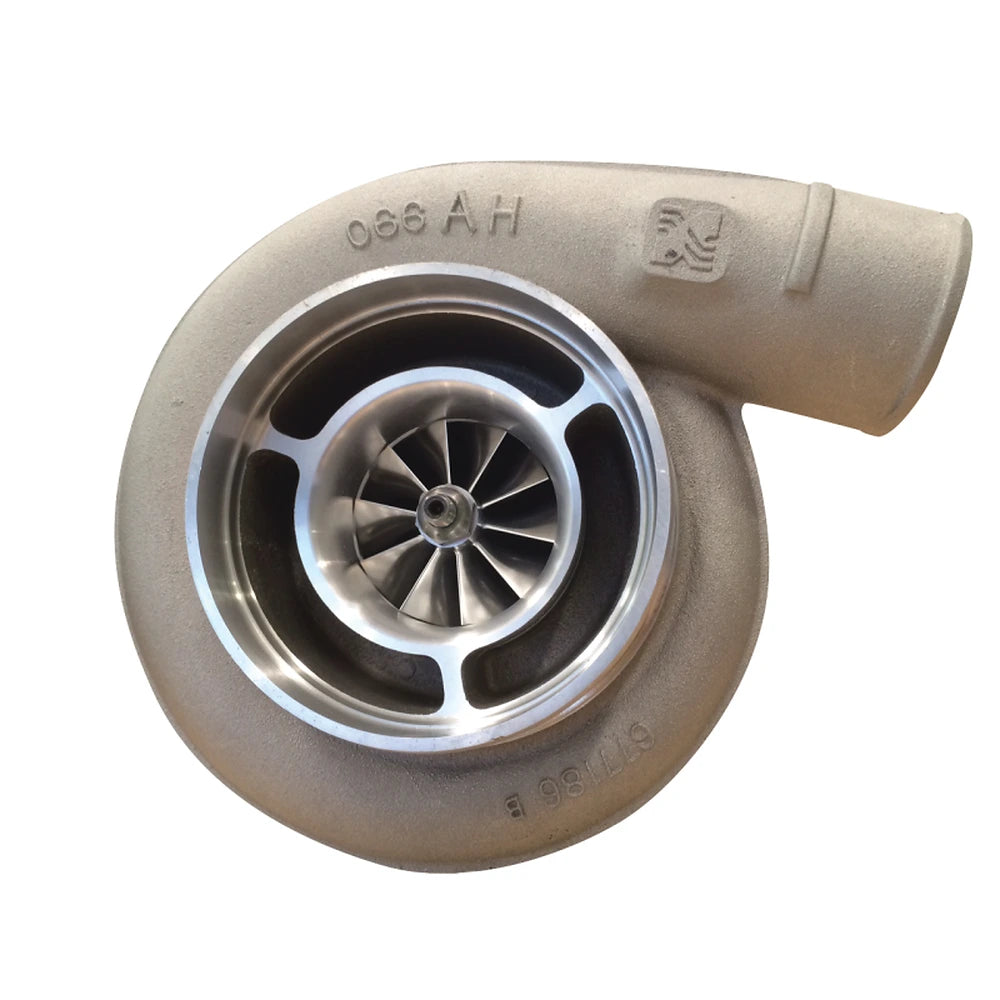

BorgWarner SuperCore Assembly SX-E S400SX-E 76mm 100/87

BorgWarner
BWA14009097014
840232702804
Super Core Assemblies
6 Units In Stock - Ships Next Business Day
$ 2,267.70 $ 1,800.55
$ 1,800.55

SKU: 14009097014 | UPC: 840232702804

BorgWarner SuperCore Assembly SX-E S400SX-E 76mm 100/87 Universal Fit

The BorgWarner SuperCore Assembly SX-E S400SX-E 76mm 100/87 is a complete CHRA for building high-output turbos in S400SX-E frames. It suits custom applications on diesel trucks like Dodge Cummins Ford Powerstroke and GM Duramax. This assembly handles 1100+ HP with efficient airflow and fast response.

Key Features

  • 76mm Billet Compressor Wheel: 76.8mm inducer 100mm exducer 14-blade design flows 110+ lbs/min air for massive power gains.
  • Extended Tip Technology: Improves surge resistance and broadens efficiency map for street and track use.
  • 99/87mm Turbine Wheel: 99mm inducer 87mm exducer 13-blade inconel construction supports high exhaust volumes with low backpressure.
  • Factory Balanced: Precision VSR balanced assembly ensures vibration-free operation at extreme RPMs.
  • High HP Capacity: Rated for 1150 HP maximum in properly matched housings for demanding diesel builds.

Product Notes

  • SuperCore only requires separate S400SX-E compressor and turbine housings to complete turbo.
  • Inspect oil feed lines and ensure proper clearances before assembly.
  • Heavy item ships via freight or ground with signature confirmation.

Installation Notes

  • Professional installation recommended.
  • Assemble with matching T4 or V-band housings using new gaskets and hardware.
  • Compatible with .88/.96 A/R turbine housings verify manifold flange match.

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 5.9L Cummins Diesel
2007.5-2022 Dodge Ram 2500 6.7L Cummins Diesel
2007.5-2022 Dodge Ram 3500 6.7L Cummins Diesel
2003-2010 Ford F-250 Super Duty 6.0L Powerstroke Diesel
2008-2010 Ford F-350 Super Duty 6.4L Powerstroke Diesel
2011-2022 Ford F-250 Super Duty 6.7L Powerstroke Diesel
2004.5-2022 Chevrolet/GMC 2500HD/3500HD 6.6L Duramax Diesel

Why Choose BorgWarner?

  • Supplies OEM turbos to leading truck manufacturers worldwide.
  • Components built for endurance in racing and heavy-duty service.
  • Advanced engineering from decades of turbo innovation.

Frequently Asked Questions

  • Q: Does this SuperCore fit my Cummins truck?
    A: Yes for custom S400SX-E builds on 2003+ Ram 2500/3500 Cummins select matching housings for your manifold and A/R needs.
  • Q: What materials are used in the wheels?
    A: Compressor wheel is billet 2618 aluminum turbine wheel is Inconel 713C for heat resistance up to 1050C.
  • Q: What warranty is included?
    A: 1-year limited manufacturer warranty covers defects in materials and workmanship when installed correctly.

Shipping & Handling

  • Method: Standard ground or freight
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-filled box 16 x 16 x 16 inches
  • Weight: 28 lbs
