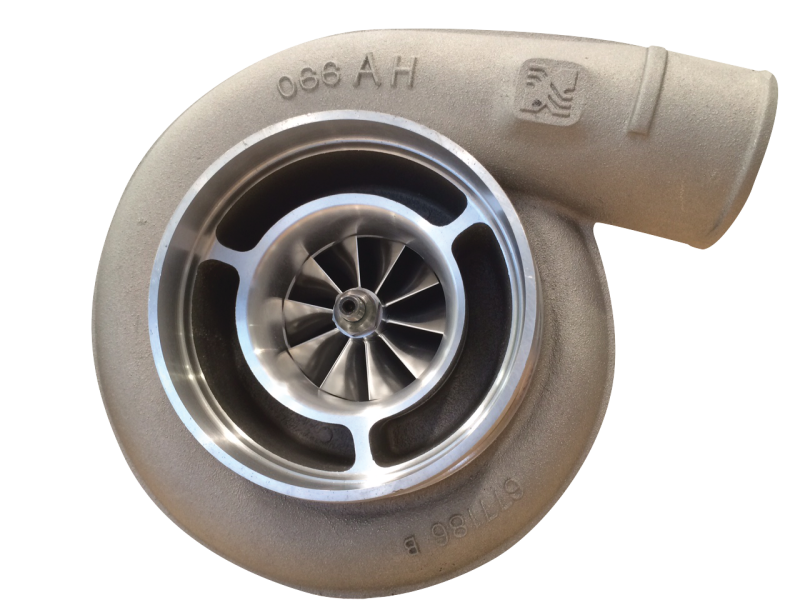

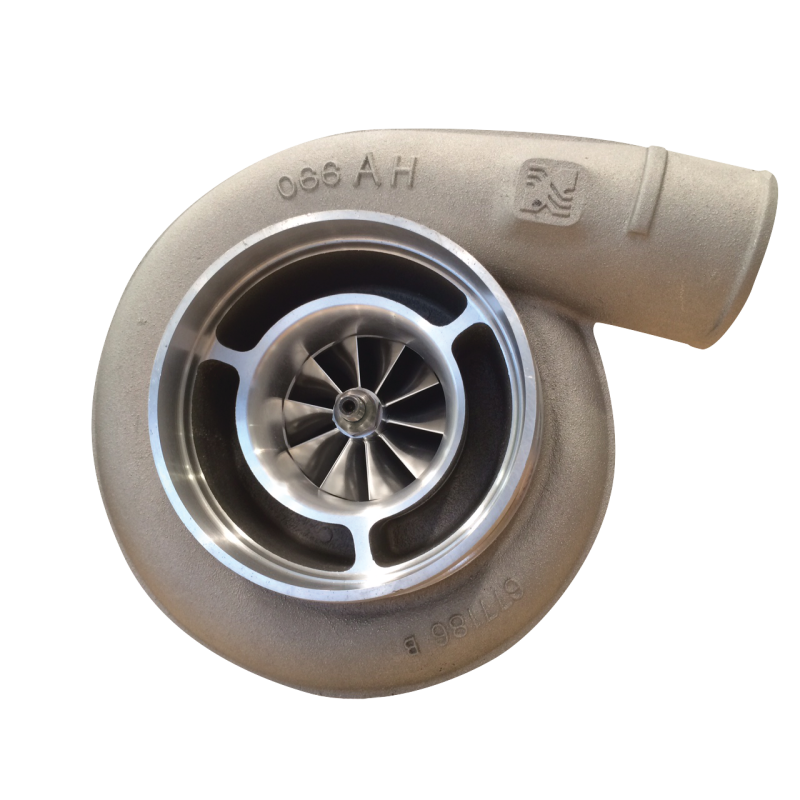

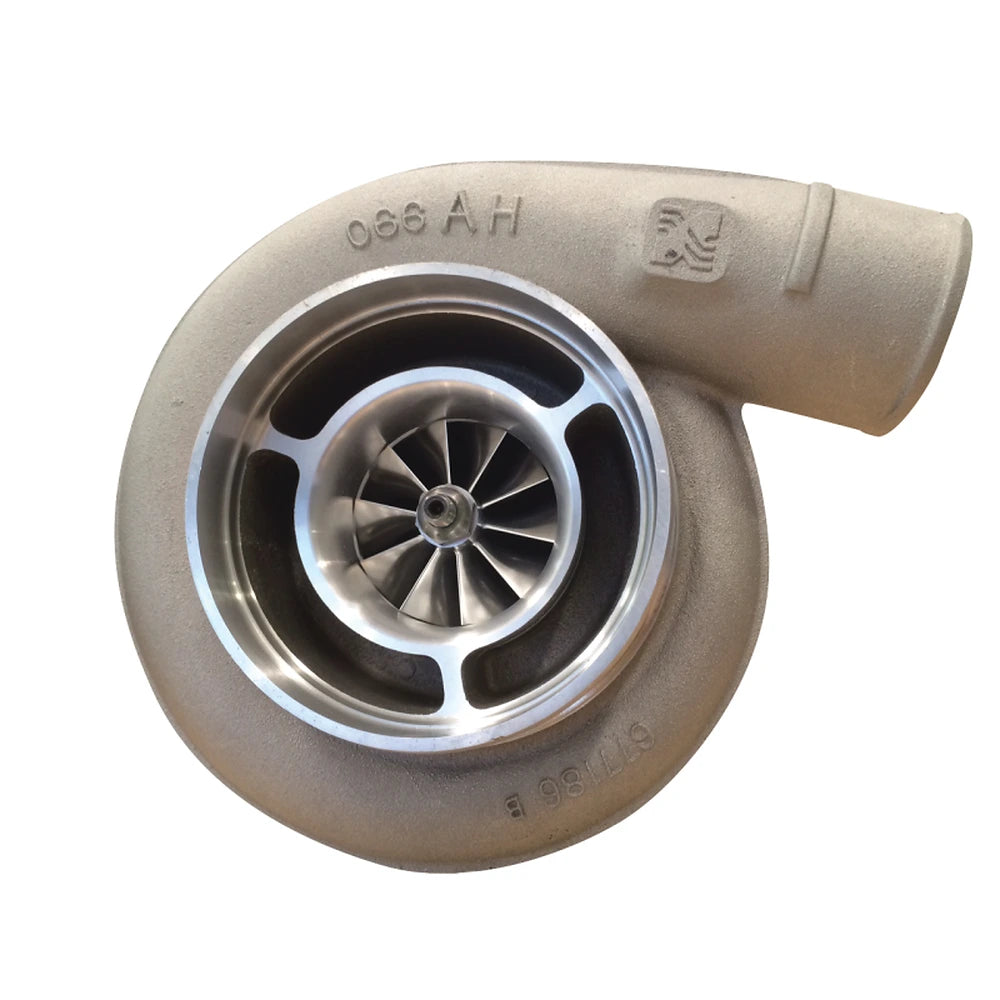

BorgWarner SuperCore Assembly SX-E S400SX-E 80mm 110/96 - Black Ops Auto Works
Click to zoom in

BorgWarner SuperCore Assembly SX-E S400SX-E 80mm 110/96

BorgWarner
BWA14009097010
840232702446
Super Core Assemblies
Out of stock
$ 2,632.49 $ 2,092.39

SKU: 14009097010 | UPC: 840232702446

BorgWarner SuperCore Assembly SX-E S400SX-E 80mm 110/96 for 2010-2022 Cummins 6.7L

The BorgWarner SuperCore Assembly SX-E S400SX-E 80mm 110/96 is the center heart of high-performance S400 frame turbochargers. This ball-bearing CHRA fits custom turbo builds on 2010-2022 Dodge Ram Cummins 6.7L Ford Powerstroke 6.7L and GM Duramax 6.6L trucks. It supports 1000-1200 HP with rapid spool-up and massive airflow for street and track dominance.

Key Features

  • 80mm Billet Compressor Wheel: 80.35mm inducer 110.5mm exducer 60 trim design flows 110+ lbs/min for dyno-crushing boost
  • 96mm Inconel Turbine Wheel: 99.65mm inducer 96.55mm exducer 88 trim withstands 1600+ degrees F for reliability under extreme power
  • Dual Ceramic Ball Bearing Cartridge: Cuts friction by 60% enables 15000 RPM/s acceleration for instant throttle response
  • Investment Cast Center Housing: Oil-cooled journal backup with water ports prevents coking in long-haul diesel duty
  • Pre-Balanced Assembly: Factory VSR balanced to 120000 RPM supports drop-in core swaps with zero vibration

Product Notes

  • Super core only compressor turbine housings oil lines sold separately
  • Inspect bearings during assembly use high-quality assembly lube
  • Ships ready for 9cm2 10cm2 or 12cm2 housings standard UPS ground

Installation Notes

  • Professional installation recommended.
  • Match with S400SX-E compressor A/R .88 turbine A/R 1.00-1.32 housings
  • Requires -4AN oil feed -10AN drain lines T4 flange compatible

This Part Fits

Year Make Model Submodel
2010-2022 Dodge/Ram 2500/3500 6.7L Cummins
2011-2022 Ford F-250/F-350/F-450 Super Duty 6.7L Powerstroke
2006-2019 Chevrolet/GMC 2500HD/3500HD 6.6L Duramax
2007.5-2022 Dodge/Ram 3500/4500/5500 6.7L Cummins Chassis Cab

Why Choose BorgWarner?

  • Direct OEM supplier to Cummins Ford GM for proven diesel reliability
  • Endurance-tested in NHRA Pro Stock and NASCAR for zero failures
  • Precision CNC machined in USA with aerospace tolerances

Frequently Asked Questions

  • Q: Does this super core bolt directly into stock turbo housings?
    A: Designed for S400SX-E frame housings common on aftermarket kits for Cummins 6.7L verify flange match
  • Q: What is the turbine wheel material?
    A: Inconel 713C withstands extreme EGTs ideal for tuned diesels over 1000 HP
  • Q: What warranty applies?
    A: 1-year unlimited mileage when installed by certified shop covers defects in materials workmanship

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective foam-lined box 16 x 16 x 16 inches
  • Weight: 28 lbs
