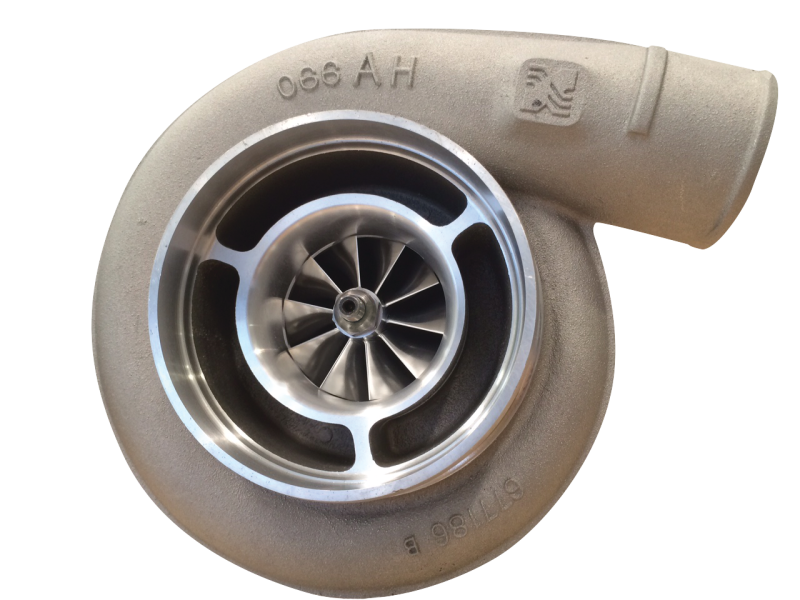

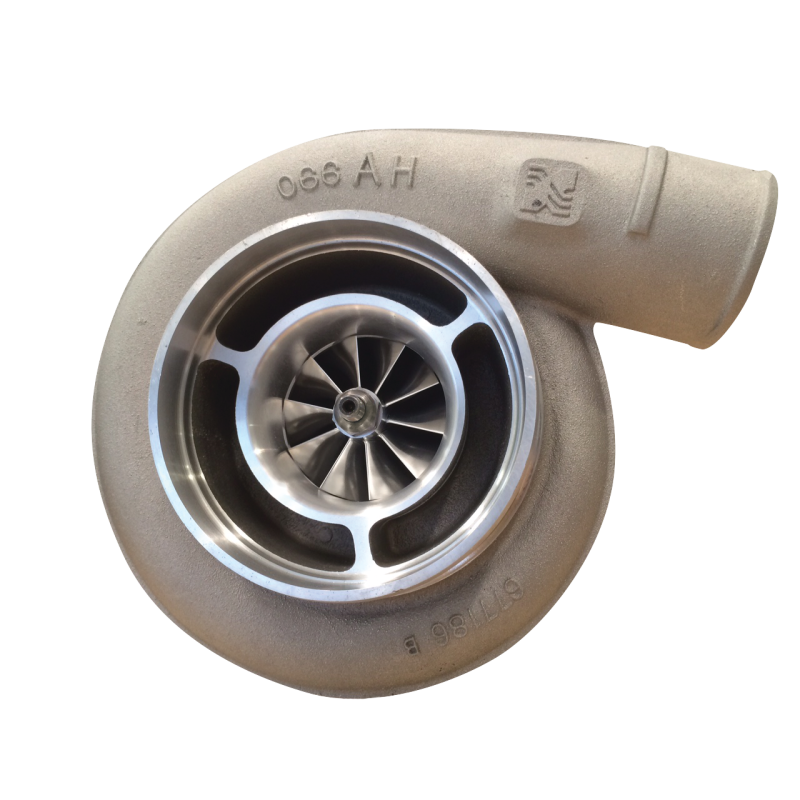

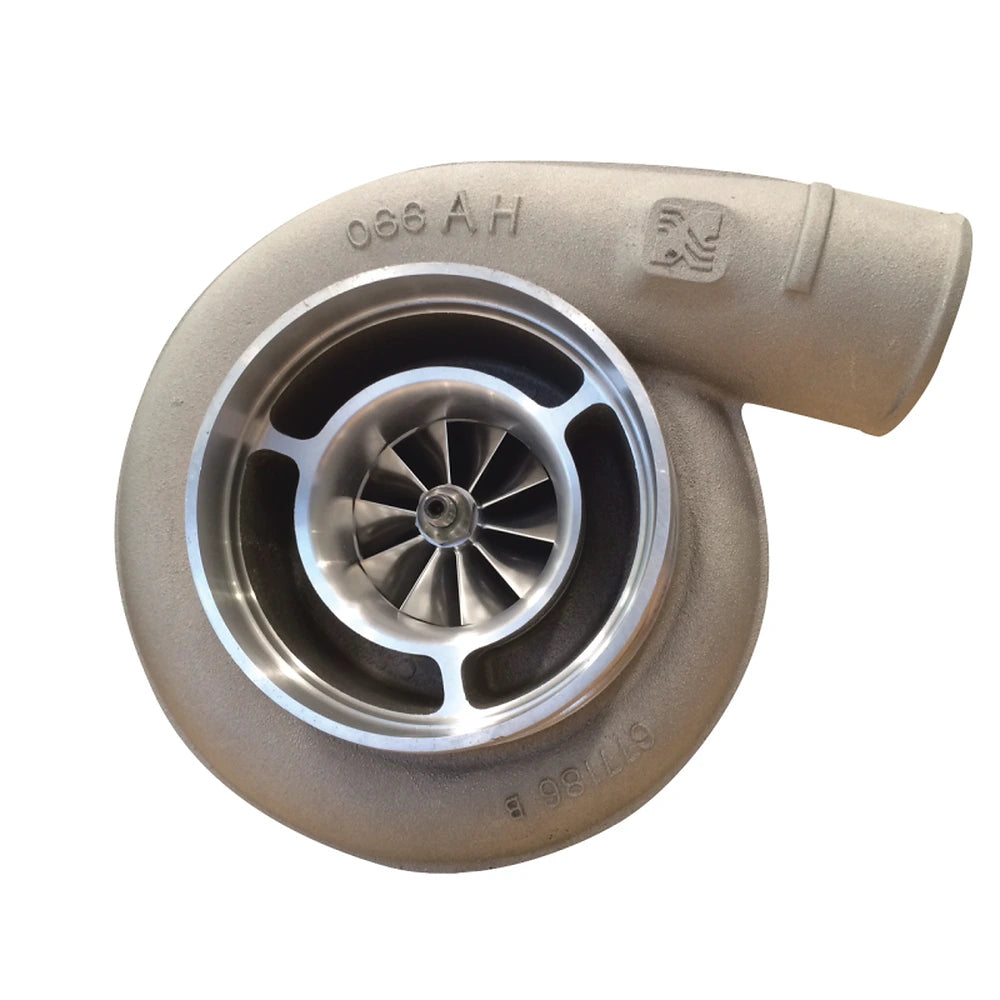

This BorgWarner SuperCore assembly is selected by exact manufacturer part number 14009097013 and complete turbo-system specifications. Confirm every wheel, housing, flange, A/R, connection, orientation, and wastegate requirement before ordering.
Key Features
- 100/96mm Turbine Wheel: Inconel construction handles extreme EGTs over 1700°F while enabling fast exhaust flow and low-end response.
- 76mm SX-E Compressor Wheel: 7+7 blade billet design with extended tips delivers 110+ lbs/min airflow for peak power in 1000-1600 HP setups.
- Dual Ball Bearing CHRA: Ceramic hybrid bearings reduce friction for 25% quicker spool-up and 30K+ mile service life under boost.
- Requires 40-80 PSI regulated oil supply at 10-15 PSI over boost pressure.
- Universal SuperCore Design: Compatible with T6 turbine housings A/R.91-1.32 and 4" compressor inlets for custom turbo configurations.
- Dual ceramic ball bearings with Inconel turbine wheel and 2618 billet compressor for heat and fatigue resistance.
Fitment
| Fitment Basis | Universal by exact BorgWarner dimensions and turbo-system interface |
|---|---|
| Required Check | Confirm turbo family, wheel sizes, housing A/R, flanges, inlet and outlet geometry, bearing housing, wastegate configuration, oil and coolant connections, rotation, and clearance |
Specifications
| Manufacturer | BorgWarner |
|---|---|
| Manufacturer Part Number | 14009097013 |
| Product Type | Super Core Assemblies |
| Turbo Family | S400SX-E |
| Wheel Size | 76mm |
| Fitment Type | Universal by exact dimensions and turbo-system interface |
What's Included
One new BorgWarner product in the exact configuration identified by manufacturer part number 14009097013. Gaskets, lines, clamps, housings, actuators, sensors, hardware, and companion components are included only when expressly stated for this part number.
About BorgWarner
BorgWarner develops original-equipment and performance turbocharging systems, including EFR, AirWerks, S-Series, K-Series, SuperCore assemblies, housings, cartridges, actuators, and service components.
Related BorgWarner Products
- BorgWarner SuperCore Assembly SX-E S400SX-E 76mm 100/87
- BorgWarner SuperCore Assembly SX-E S400SX-E 72mm 96/87
- BorgWarner SuperCore Assembly SX-E S400SX-E 80mm 110/96
Browse the BorgWarner collection for related turbochargers, housings, assemblies, actuators, and service components.
Frequently Asked Questions
How do I confirm this BorgWarner part matches my turbo system?
Match the exact BorgWarner part number, turbo family, compressor and turbine wheel sizes, housing A/R, flange, inlet and outlet geometry, bearing housing, wastegate configuration, and every connection before ordering.
Is this BorgWarner SuperCore assembly a direct replacement?
Only when the exact part number, dimensions, housings, flanges, rotation, wastegate configuration, oil and coolant connections, and vehicle or system application all match. Similar turbo families are not automatically interchangeable.
What supporting parts should be inspected during installation?
Inspect or replace the oil feed and drain, coolant lines, gaskets, fasteners, intake and charge piping, intercooler, exhaust connections, wastegate hardware, and filtration components. Correct the cause of the previous turbo failure before startup.
Installation Instructions
Follow BorgWarner's current instructions and the vehicle or system service information for this exact part number. Verify every interface before disassembly, correct the cause of any prior turbo failure, prime the oil system, keep debris out of all passages, use new required seals and fasteners, confirm free rotation and line routing, and check for leaks before load. Professional turbo-system installation and calibration are recommended.
