BorgWarner SuperCore Assembly SX-E S400SX-E 88mm 110/96 - Black Ops Auto Works
Click to zoom in

BorgWarner SuperCore Assembly SX-E S400SX-E 88mm 110/96

BorgWarner
BWA14009097008
840232702262
Super Core Assemblies
4 Units In Stock - Ships Next Business Day
$ 3,512.31 $ 2,797.38
$ 2,797.38

SKU: 14009097008 | UPC: 840232702262

BorgWarner SuperCore Assembly SX-E S400SX-E 88mm 110/96 for Cummins 5.9L 6.7L

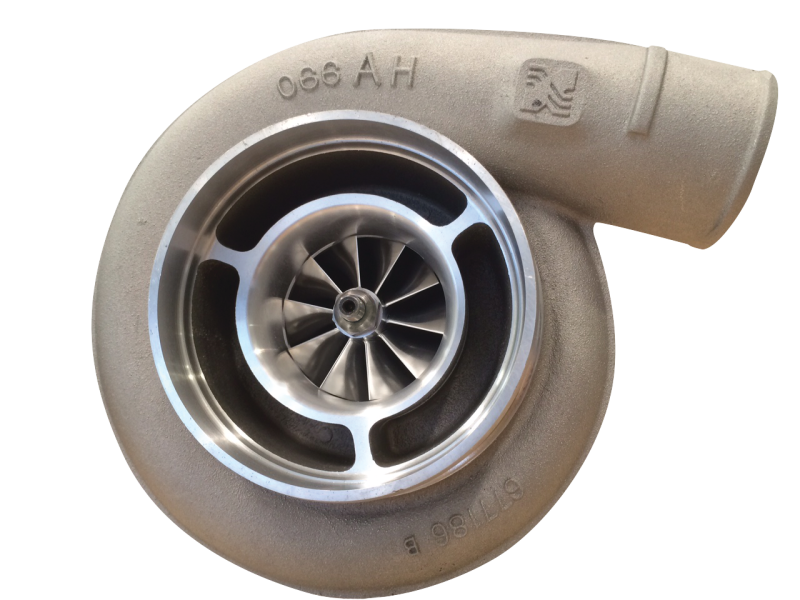

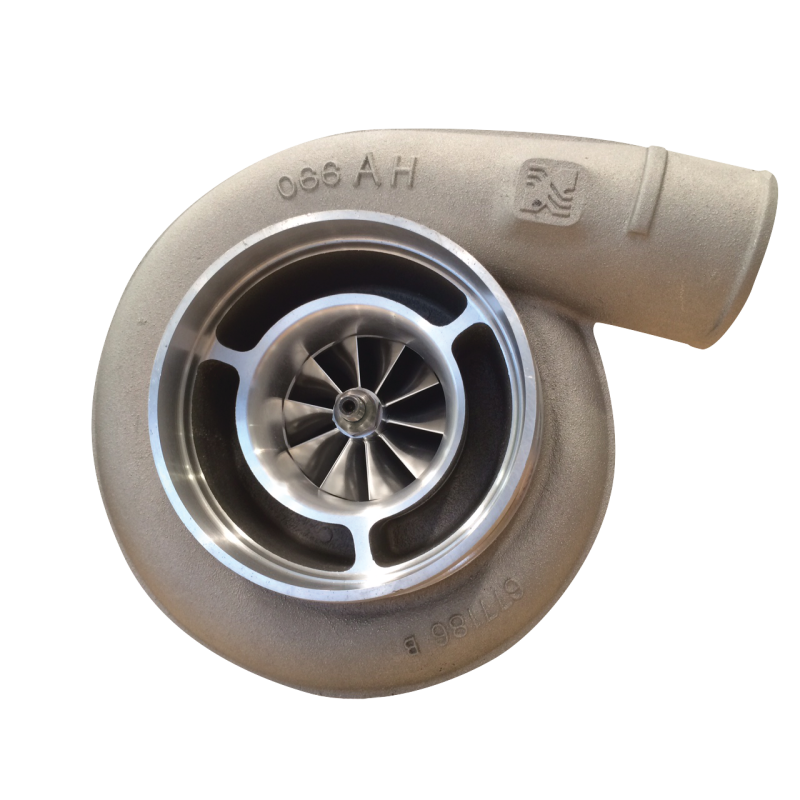

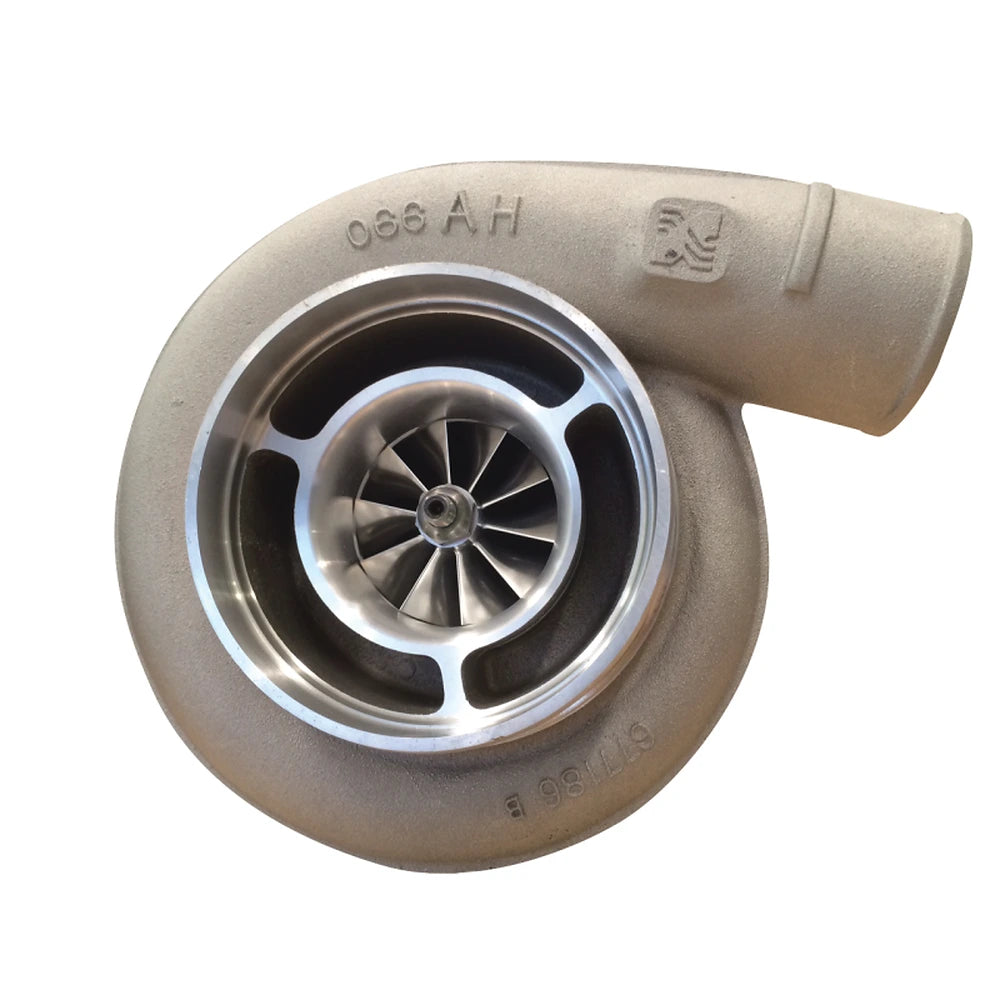

This BorgWarner SuperCore Assembly powers S400SX-E turbo builds with an 88mm billet compressor inducer and 96mm Inconel turbine exducer for massive airflow in high-horsepower diesel applications. Designed for Cummins 5.9L and 6.7L engines in Ram trucks it delivers quick spool and sustained power above 1200HP when matched with T6 divided housings. Precision-assembled for reliability in drag racing and heavy-duty towing.

Key Features

  • 88mm Billet Compressor Wheel: Extended-tip design flows 140+ lbs/min for rapid boost response and top-end power in 1000HP+ setups
  • 96mm Inconel Turbine Wheel: Heat-resistant alloy handles 1600+ degrees F EGTs with 110mm inducer for low-backpressure exhaust flow
  • Dual Ball Bearing CHRA: Low-friction ceramic-hybrid bearings reduce spool time by 25% over journal designs and support 200K+ RPM
  • SX-E Frame Compatibility: Fits standard S400SX-E housings with 1.10 A/R turbine option for balanced street-strip performance
  • Factory-Balanced Assembly: Vibration-free operation from 20K-180K RPM ensures long-term durability without field balancing

Product Notes

  • Super core requires separate compressor cover and turbine housing for complete turbo assembly
  • Oil-cooled with optional water ports for extended bearing life in daily-driven trucks
  • Special order item ships freight or ground with adult signature required due to size and value

Installation Notes

  • Professional installation recommended.
  • Prime oil system and restrict oil feed to 80psi max during break-in
  • Compatible with T4 or T6 divided turbine housings and 4" or 5" compressor inlets

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins
2003-2009 Dodge Ram 3500 5.9L Cummins
2007.5-2018 Ram 2500/3500 6.7L Cummins
2019-2023 Ram 2500/3500 6.7L Cummins HO
2011-2023 Ford F-250/350 Super Duty 6.7L Power Stroke
2011-2019 GM 2500HD/3500HD 6.6L Duramax LML

Why Choose BorgWarner?

  • Global leader supplying turbos to Cummins and Ford OEM engines
  • Proven in NHRA Pro Stock and million-mile truck fleets
  • Dynamic balancing to ISO 1940 G2.5 standards for zero vibration

Frequently Asked Questions

  • Q: Will this super core fit my 2015 Ram 6.7L Cummins stock turbo location?
    A: Yes it drops into S400SX-E frames with matching T6 1.10 A/R housing for delete pipe or custom piping setups
  • Q: What materials are used in the turbine and compressor?
    A: Inconel 713C turbine wheel and 2618 billet aluminum compressor wheel resist creep and fatigue at extreme boost levels
  • Q: What warranty coverage applies?
    A: 12-month unlimited mileage warranty covers defects when installed by certified shop with proper oiling

Shipping & Handling

  • Method: Standard Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-protected in 16x16x16 inch double-wall box
  • Weight: 29 lbs
