BorgWarner Turbocharger S S410SX CAT A/R 1.32 - Black Ops Auto Works
Click to zoom in

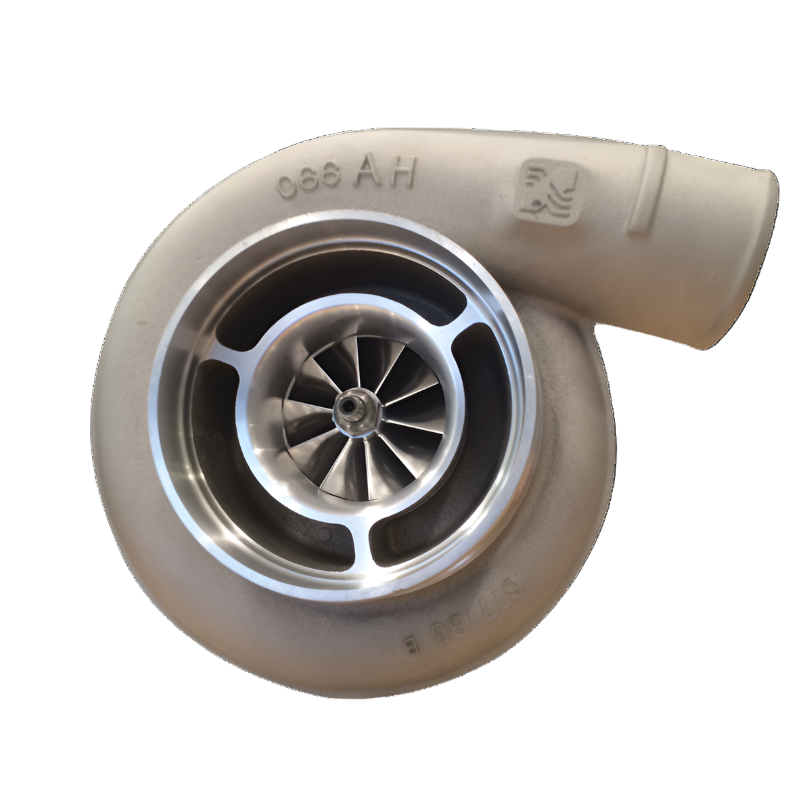

BorgWarner Turbocharger S S410SX CAT A/R 1.32

BorgWarner
BWA14969880000
840232707571
Turbochargers
13 Units In Stock - Ships Next Business Day
$ 2,873.91 $ 2,299.13
$ 2,299.13

SKU: 14969880000 | UPC: 840232707571

BorgWarner Turbocharger S S410SX CAT A/R 1.32 for Ram Cummins 5.9L 6.7L 1994-2024

This BorgWarner S410SX turbocharger features a 1.32 A/R CAT T6 turbine housing and delivers massive airflow for high-horsepower Cummins diesel builds in Dodge Ram trucks. It supports 1000-1200+ HP applications with quick spool and low backpressure thanks to its 80/110mm compressor wheel. Ideal for drag racing, sled pulling, and street/strip modified 5.9L or 6.7L engines.

Key Features

  • Compressor Wheel: 80mm inducer 110mm exducer billet aluminum with extended-tip aero design flows 110+ lbs/min for extreme boost levels
  • Turbine Wheel: 99mm inducer 87mm exducer Inconel construction handles EGTs over 1600F in competition environments
  • Turbine Housing: T6 CAT open volute 1.32 A/R provides fast spool and high exhaust flow for big single turbo setups
  • Compressor Housing: 4-inch anti-surge inlet 5-inch outlet supports large intercooler piping and high-volume air intake
  • Center Section: Oil-cooled journal bearing cartridge ensures reliable operation under sustained high boost

Product Notes

  • Requires custom exhaust manifold adapter for T6 flange compatibility
  • Pair with upgraded injectors fuel system and intercooler for full potential
  • Ships fully assembled ready for professional tuning and break-in

Installation Notes

  • Professional installation recommended.
  • Uses standard T6 mounting bolts verify manifold flange alignment
  • Compatible with aftermarket oil feed drain lines 7/16-24 UNF fittings

This Part Fits

Year Make Model Submodel
1994-2002 Dodge Ram 2500 5.9L Diesel
1994-2002 Dodge Ram 3500 5.9L Diesel
2003-2007 Dodge Ram 2500 5.9L Diesel
2003-2007 Dodge Ram 3500 5.9L Diesel
2007.5-2009 Dodge Ram 2500 6.7L Diesel
2007.5-2009 Dodge Ram 3500 6.7L Diesel
2010-2018 Ram 2500 6.7L Cummins Diesel
2010-2018 Ram 3500 6.7L Cummins Diesel
2019-2024 Ram 2500 6.7L Diesel
2019-2024 Ram 3500 6.7L Diesel

Why Choose BorgWarner?

  • Supplies turbos to major OEMs and dominates diesel racing classes
  • Builds with high-temperature alloys for long life in harsh conditions
  • Engineers every component for balanced response and power delivery

Frequently Asked Questions

  • Q: Will this turbo bolt onto a stock Ram Cummins manifold?
    A: No it requires a T6 manifold adapter or aftermarket T6 manifold common in high HP Cummins builds
  • Q: What is the compressor wheel material?
    A: 2618 billet aluminum with 7+2 extended blades for surge resistance and efficiency up to 65% peak
  • Q: What warranty applies?
    A: 12-month unlimited mileage warranty when installed by certified shop with proper break-in and maintenance

Shipping & Handling

  • Method: Standard ground UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Oversized box with foam inserts 24x20x20 inches
  • Weight: 32 lbs

Request For Information

Have questions about BorgWarner Turbocharger S S410SX CAT A/R 1.32? Fill out the form below and we'll get back to you by the next business day.
