Purpose-Built Lighting and Load-Ready Rack for Tacoma, Colorado, and Canyon Short Beds
The Diode Dynamics DIODD8724 IBEX A1 Bed Rack brings together the structural engineering of Kuat's proven IBEX platform and the lighting expertise of Diode Dynamics in a complete kit tailored for the 2005-2025 Toyota Tacoma and 2004-2025 Chevrolet Colorado and GMC Canyon with short beds. The DIODD8724 ships with the SS10 Chase Light, four Stage Series Rock Lights with white and amber lenses, and all wiring harnesses so you can mount, wire, and load in a single afternoon. The result is a 1,200-lb-rated rack with integrated tail lighting that works from the factory floor of the trail.
Key Features
- Diode Dynamics x Kuat collaboration: DIODD8724 merges overland rack strength with integrated trail lighting
- Static weight capacity: 1,200 lbs; dynamic weight capacity: 300 lbs
- SS10 Chase Light with 21 programmable strobing patterns and CHMSL 3rd brake light compliance
- Four Stage Series Rock Lights included: IP69K waterproof, 960 lm white / 220 lm amber, 4.5W each
- Powdercoated aluminum construction resists corrosion in all trail and weather conditions
- Full-height (19") and mid-height (11.875") configurations available at assembly
- Adjustable telescopic crossbars with T-channel slots for accessories and cargo tie-downs
- Tonneau cover compatible with optional IBEX Tonneau Adapter for Retrax, BAK, and LineX covers
- Bed length: 63", bed width range: 37.5" to 50.375" for short-bed Tacoma, Colorado, and Canyon
- Limited Lifetime Warranty
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2005-2025 | Toyota | Tacoma (Short Bed) |
| 2004-2025 | Chevrolet | Colorado (Short Bed) |
| 2004-2025 | GMC | Canyon (Short Bed) |
Specifications
| Detail | Value |
|---|---|
| Part Number | DIODD8724 |
| UPC | 851728008724 |
| Kit Type | A1 |
| Full Cab Height | 19 in |
| Mid Cab Height | 11.875 in (11 7/8") |
| Bed Length | 63 in |
| Bed Width Range | 37.5 in to 50.375 in |
| Static Weight Capacity | 1,200 lbs |
| Dynamic Weight Capacity | 300 lbs |
| SS10 Chase Light Output (White) | 960 lumens |
| SS10 Chase Light Output (Amber) | 220 lumens |
| Rock Light Power | 4.5W per lamp |
| Rock Light Rating | IP69K |
| Chase Light Patterns | 21 strobing modes |
| Material | Powdercoated aluminum |
| Warranty | Limited Lifetime |

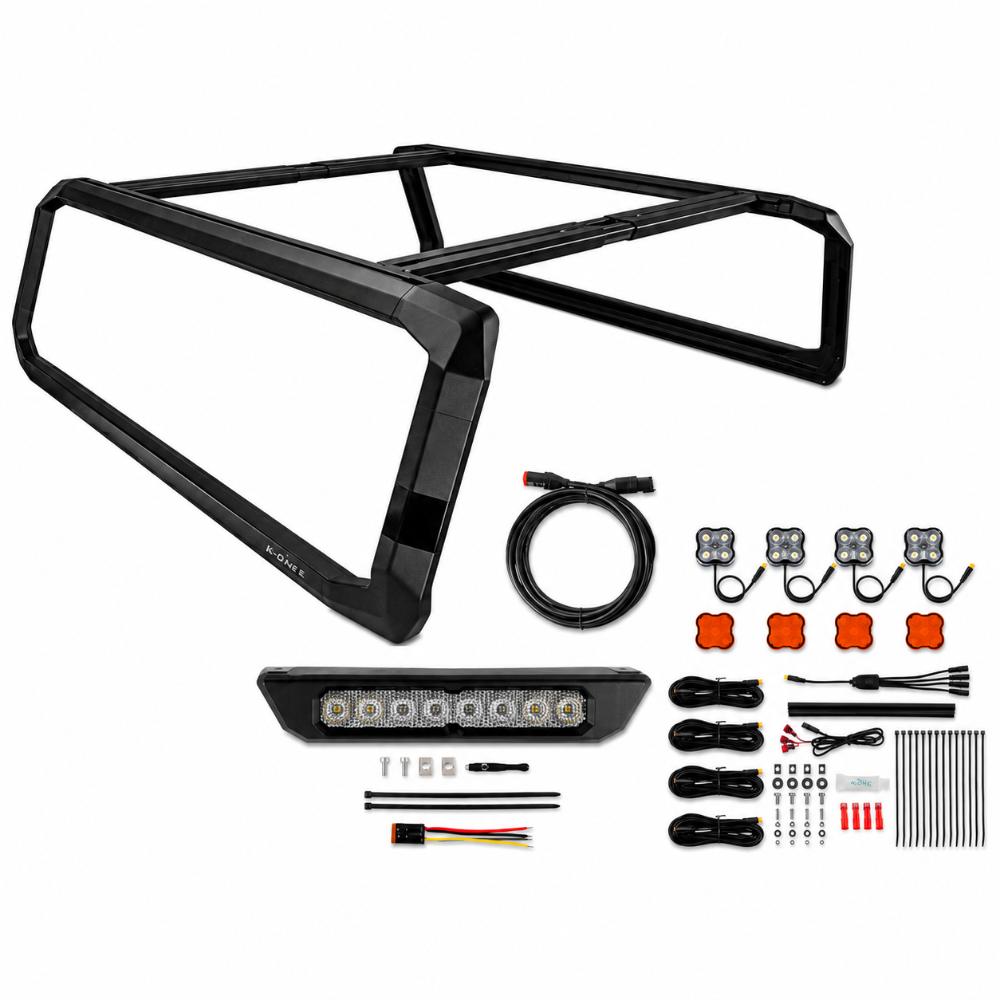

What's Included
- 1x Diode Dynamics Kuat IBEX A1 Bed Rack (DIODD8724)
- 1x SS10 Chase Lightbar
- 1x Magnetic Programming Tool
- 4x Stage Series Rock Lights
- 4x White Diffused Rock Light Lenses
- 4x Amber Rock Light Lenses
- 1x DT 4-Pin 3M Extension Wire
- 4x 5M M8 Extension Wires
- 1x M8 4-Way Splitter
- 1x DT 4-Pin Pigtail
- 1x T-Tap Harness
- 4x T-Taps
- 16x Zip Ties
- Wire Retention Strip
- Mounting Hardware
- Installation Guide
About Diode Dynamics
Diode Dynamics is based in St. Charles, Missouri and designs high-performance LED lighting for the automotive and off-road market. Their engineering team developed the Stage Series lighting platform to deliver professional-grade output in weather-sealed housings, and the IBEX partnership with Kuat extends that philosophy to a complete overland rack solution. Every DIODD8724 kit is designed, tested, and assembled to Diode Dynamics' standards before reaching the customer.
Related Parts on Our Site
- Diode Dynamics IBEX A2 Bed Rack for Jeep Gladiator
- Diode Dynamics IBEX A3 Bed Rack for Ford Ranger and Nissan Frontier Short Bed
Frequently Asked Questions
What is the DIODD8724?The DIODD8724 is the Diode Dynamics x Kuat IBEX A1 Bed Rack kit designed for the 2005-2025 Toyota Tacoma, 2004-2025 Chevrolet Colorado, and 2004-2025 GMC Canyon with short beds. The kit includes an integrated SS10 Chase Light, four Stage Series Rock Lights, and all wiring in one bolt-on package.
Does the DIODD8724 fit both the 2nd and 3rd gen Tacoma?Yes. The DIODD8724 is confirmed to fit the 2005-2025 Toyota Tacoma short bed, which spans the 2nd generation (2005-2015) and 3rd generation (2016-2023) as well as the current 4th generation (2024-2025), as long as the vehicle has the 5-foot short bed configuration.
What is the weight limit of the DIODD8724 rack?The DIODD8724 IBEX rack supports up to 1,200 lbs of static weight and 300 lbs of dynamic weight while driving. This is sufficient for rooftop tents, overland storage containers, and heavy recovery tools.
Can I run a tonneau cover with the DIODD8724?Yes. The IBEX system on the DIODD8724 is compatible with retractable tonneau covers from Retrax, BAK, and LineX using the optional IBEX Retractable Tonneau Adapter sold separately.
What lighting is included with the DIODD8724?The DIODD8724 includes the SS10 Chase Light with 21 strobing patterns and CHMSL brake light compliance, plus four Stage Series Rock Lights rated at 4.5W each with white (960 lm) and amber (220 lm) output, all IP69K waterproof rated.
Does the DIODD8724 require drilling or modifications to the truck bed?No. The DIODD8724 uses a clamp-on installation system that attaches to the bed rail caps without drilling or cutting. The kit ships with all necessary mounting hardware.
What height configurations are available on the DIODD8724?The DIODD8724 IBEX A1 rack can be configured at full cab height (19 inches above the bed rail) or mid cab height (11.875 inches) depending on your clearance and accessory needs. Both configurations are achievable with the included hardware.
How does the SS10 chase light in the DIODD8724 program?The SS10 Chase Light in the DIODD8724 uses the included magnetic programming tool. Hold the magnet over the sensor on the light housing to cycle through 21 available strobing modes. The selected pattern is saved until you change it.
What warranty is included with the DIODD8724?The DIODD8724 IBEX A1 Bed Rack is covered by Diode Dynamics' Limited Lifetime Warranty against defects in materials and workmanship on both the rack and integrated lighting components.
Installation Instructions
- Measure your truck bed length and width to confirm A1 fitment: 63" length, 37.5" to 50.375" width.
- Lay out all DIODD8724 kit components and review the included installation guide.
- Assemble the IBEX rack frame, connecting all telescopic crossbars to the side rails.
- Select your preferred height configuration (full 19" or mid 11.875") before tightening crossbar locks.
- Lower the assembled rack onto the bed rail caps and tighten all rail clamps securely with included hardware.
- Attach the SS10 Chase Light to the rear crossbar bracket using the provided fasteners.
- Route wiring harnesses from the SS10 along the rack side rails, using the wire retention strip and zip ties.
- Install the four Stage Series Rock Lights in the mount positions on the rack frame.
- Connect the wiring to the vehicle's brake light circuit for CHMSL function and a switched power source for rock lights.
- Program the SS10 using the magnetic programming tool to select your preferred strobe pattern.
- Test brake light activation, rock light function, and all clamp torque before loading gear on the DIODD8724.
WARNING: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
