Integrated Lighting and Maximum Capacity Converge in the Ultimate Jeep Gladiator Bed Rack
The Diode Dynamics DIODD8725 IBEX A2 Bed Rack is the result of a collaboration between Diode Dynamics and Kuat, combining a battle-tested aluminum bed rack with a fully integrated lighting suite purpose-built for the 2020-2025 Jeep Gladiator. Whether you are running a remote trail or hauling gear across open terrain, the DIODD8725 delivers 1,200 lbs of static load capacity, a programmable chase light with 21 strobing patterns, and CHMSL-compliant 3rd brake light functionality in a single bolt-on package.
Key Features
- Diode Dynamics x Kuat collaboration delivering purpose-built integrated lighting in the DIODD8725 kit
- Static weight capacity: 1,200 lbs; dynamic weight capacity: 300 lbs
- SS10 Chase Light with 21 programmable strobing patterns and CHMSL-compliant 3rd brake light
- Stage Series Rock Lights included: 960 lm white / 220 lm amber, IP69K waterproof, 4.5W each
- Powdercoated aluminum construction for corrosion resistance in all weather conditions
- Full-height (21.69") and mid-height (12.125") configurations available out of the box
- Adjustable telescopic crossbars with multiple T-channels for gear and accessory mounting
- Tonneau cover compatible with Retrax, BAK, and LineX using optional adapter
- Bed length: 63", bed width range: 37.5" to 50.5" fits 2020-2025 Gladiator
- Limited Lifetime Warranty
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2020-2025 | Jeep | Gladiator |
Specifications
| Detail | Value |
|---|---|
| Part Number | DIODD8725 |
| UPC | 851728008725 |
| Kit Type | A2 |
| Full Cab Height | 21.6875 in (21 11/16") |
| Mid Cab Height | 12.125 in (12 1/8") |
| Bed Length | 63 in |
| Bed Width Range | 37.5 in to 50.5 in |
| Static Weight Capacity | 1,200 lbs |
| Dynamic Weight Capacity | 300 lbs |
| SS10 Chase Light Output (White) | 960 lumens |
| SS10 Chase Light Output (Amber) | 220 lumens |
| Rock Light Power | 4.5W per lamp |
| Rock Light Rating | IP69K |
| Chase Light Patterns | 21 strobing modes |
| Material | Powdercoated aluminum |
| Warranty | Limited Lifetime |

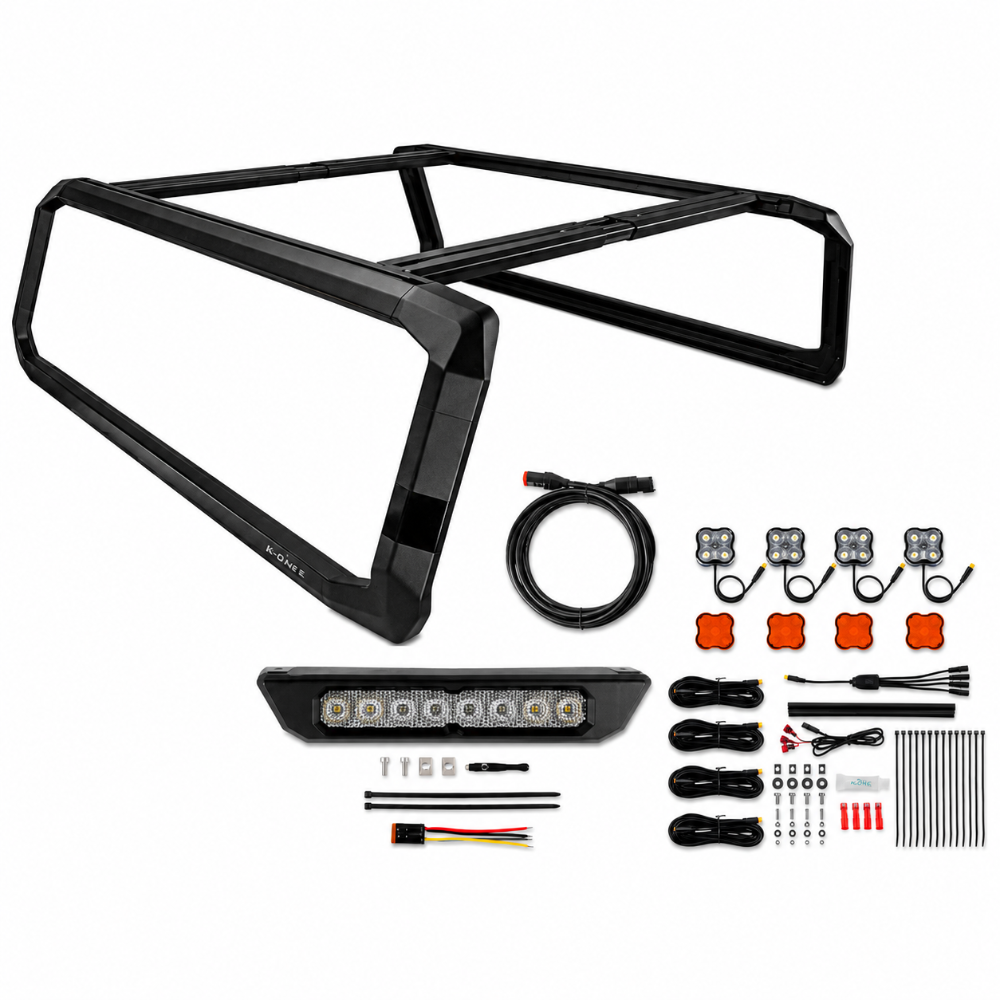

What's Included
- 1x Diode Dynamics Kuat IBEX A2 Bed Rack (DIODD8725)
- 1x SS10 Chase Lightbar
- 1x Magnetic Programming Tool
- 4x Stage Series Rock Lights
- 4x White Diffused Rock Light Lenses
- 4x Amber Rock Light Lenses
- 1x DT 4-Pin 3M Extension Wire
- 4x 5M M8 Extension Wires
- 1x M8 4-Way Splitter
- 1x DT 4-Pin Pigtail
- 1x T-Tap Harness
- 4x T-Taps
- 16x Zip Ties
- Wire Retention Strip
- Mounting Hardware
- Installation Guide
About Diode Dynamics
Diode Dynamics is a St. Charles, Missouri-based manufacturer specializing in high-performance LED lighting for automotive and off-road applications. Known for their Stage Series light bars, rock lights, and chase lights, Diode Dynamics engineers every product in-house with a focus on output, durability, and clean OEM-style integration. The IBEX collaboration with Kuat represents their expansion into full overland rack systems with factory-level lighting integration.
Related Parts on Our Site
- Diode Dynamics IBEX A1 Bed Rack for Colorado, Canyon, and Tacoma Short Bed
- Diode Dynamics IBEX A3 Bed Rack for Ford Ranger and Nissan Frontier Short Bed
Frequently Asked Questions
What is the DIODD8725?The DIODD8725 is the Diode Dynamics x Kuat IBEX A2 Bed Rack kit designed for the 2020-2025 Jeep Gladiator. It combines a high-capacity powdercoated aluminum bed rack with an integrated SS10 Chase Light, Stage Series Rock Lights, and all necessary wiring harnesses in a single bolt-on package.
What is the weight capacity of the DIODD8725 IBEX A2 rack?The DIODD8725 has a static weight capacity of 1,200 lbs and a dynamic (moving) weight capacity of 300 lbs, making it suitable for heavy overland gear, rooftop tents, and recovery equipment.
Does the DIODD8725 work with a tonneau cover?Yes. The IBEX rack on the DIODD8725 is compatible with retractable tonneau covers from Retrax, BAK, and LineX when used with the optional IBEX Tonneau Adapter sold separately.
Is the SS10 Chase Light in the DIODD8725 kit DOT compliant?Yes. The SS10 Chase Light included with the DIODD8725 is CHMSL-compliant and functions as a legal 3rd brake light in addition to its 21 programmable strobing patterns for trail visibility.
What are the SS10 and rock light specs in the DIODD8725?The SS10 Chase Light outputs 960 lumens in white and 220 lumens in amber. The four included Stage Series Rock Lights each produce 4.5W of output and are IP69K waterproof rated for submersion and high-pressure washing.
Does the DIODD8725 fit the Jeep Gladiator Mojave or Rubicon?The DIODD8725 is designed for all 2020-2025 Jeep Gladiator models including JT variants such as the Rubicon, Mojave, Sport, and Overland, as long as the vehicle has the standard 5-foot Gladiator bed.
How difficult is the DIODD8725 installation?The DIODD8725 is designed for bolt-on installation without cutting or welding. The rack mounts to the bed rails of the Jeep Gladiator and the integrated lighting routes through included wiring harnesses. Most installers complete the job in 2 to 4 hours with basic hand tools.
What warranty comes with the DIODD8725?The DIODD8725 IBEX A2 Bed Rack is backed by a Limited Lifetime Warranty from Diode Dynamics covering defects in materials and workmanship.
Can I use the DIODD8725 with a rooftop tent?Yes. With a static load rating of 1,200 lbs, the DIODD8725 IBEX rack can support most rooftop tents when properly distributed across the crossbars. Always verify the tent manufacturer's installation recommendations and observe the 300-lb dynamic weight limit while driving.
Installation Instructions
- Park on a level surface and gather all included hardware from the DIODD8725 kit box.
- Measure your Gladiator bed width and height to confirm A2 fitment before assembly.
- Assemble the IBEX rack frame per the included installation guide, connecting telescopic crossbars.
- Set the rack to your desired height configuration: full height (21.69") or mid-height (12.125").
- Lower the assembled rack onto the Gladiator bed rails and secure all rail clamps with included hardware.
- Mount the SS10 Chase Light bar to the rear crossbar of the DIODD8725 rack using the provided brackets.
- Route the SS10 wiring harness along the rack frame using the wire retention strips and zip ties.
- Install the four Stage Series Rock Lights in the included mount positions on the rack frame.
- Connect the wiring harnesses to the vehicle's brake light circuit for CHMSL function and power source for rock lights.
- Use the magnetic programming tool to configure the SS10 Chase Light strobing pattern of your choice.
- Test all lights and verify all mounting clamps are torqued before loading gear.
WARNING: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
