Diode Dynamics19-25 Ford Ranger/ Nissan Frontier IBEX A3 Bed Rack - Short Bed

Built for the Ranger and Frontier: Lighting-Integrated Aluminum Bed Rack with Chase Light and Rock Lights

The Diode Dynamics DIODD8726 IBEX A3 Bed Rack is a collaboration between Diode Dynamics and Kuat engineered specifically for the short beds of the 2019-2025 Ford Ranger and 2022-2025 Nissan Frontier. The DIODD8726 delivers the same 1,200-lb static capacity and modular T-channel accessory system as the full IBEX line, but with the A3 kit geometry tuned for a 60-inch bed length and 37.75" to 50.375" width range. Every kit ships complete with the SS10 Chase Light, four Stage Series Rock Lights, and all wiring harnesses for a true plug-and-play install.

Key Features

• Diode Dynamics x Kuat collaboration: DIODD8726 integrates lighting at the manufacturing level
• Static weight capacity: 1,200 lbs; dynamic weight capacity: 300 lbs
• SS10 Chase Light with 21 programmable strobing patterns and CHMSL 3rd brake light compliance
• Stage Series Rock Lights included: IP69K waterproof, 960 lm white / 220 lm amber, 4.5W
• Powdercoated aluminum frame built for corrosion resistance in all conditions
• Full-height (19") and mid-height (11.875") configurations available
• Adjustable telescopic crossbars with multiple T-channel slots for accessories and tie-downs
• Tonneau cover compatible using optional IBEX Retractable Tonneau Adapter
• Bed length: 60", bed width range: 37.75" to 50.375" for short-bed Ranger and Frontier
• Limited Lifetime Warranty

Fitment

Specifications

What's Included

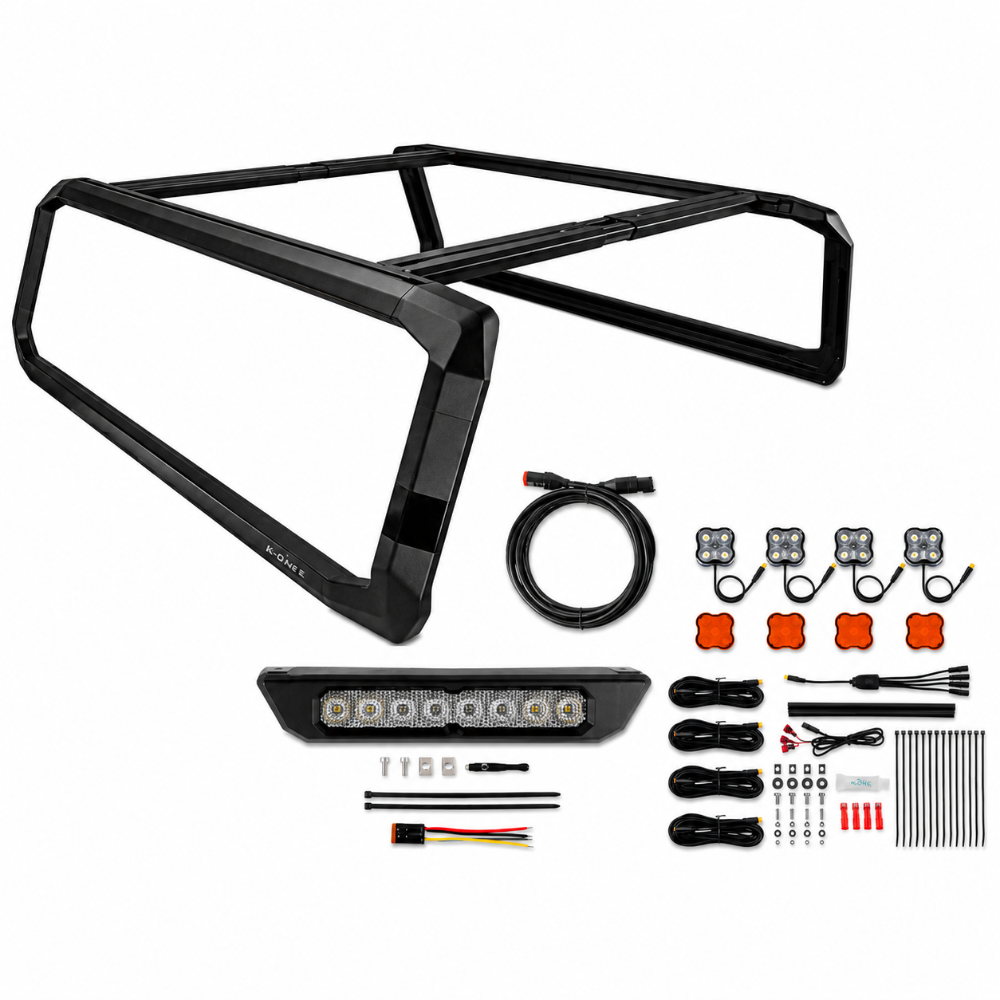

• 1x Diode Dynamics Kuat IBEX A3 Bed Rack (DIODD8726)
• 1x SS10 Chase Lightbar
• 1x Magnetic Programming Tool
• 4x Stage Series Rock Lights
• 4x White Diffused Rock Light Lenses
• 4x Amber Rock Light Lenses
• 1x DT 4-Pin 3M Extension Wire
• 4x 5M M8 Extension Wires
• 1x M8 4-Way Splitter
• 1x DT 4-Pin Pigtail
• 1x T-Tap Harness
• 4x T-Taps
• 16x Zip Ties
• Wire Retention Strip
• Mounting Hardware
• Installation Guide

About Diode Dynamics

Diode Dynamics is based in St. Charles, Missouri and designs high-performance LED lighting for the automotive and off-road market. Their engineering team developed the Stage Series lighting platform to deliver professional-grade output in weather-sealed housings, and the IBEX partnership with Kuat extends that philosophy to a complete overland rack solution. Every DIODD8726 kit is designed, tested, and assembled to Diode Dynamics' standards before reaching the customer.

Related Parts on Our Site

• Diode Dynamics IBEX A1 Bed Rack for Colorado, Canyon, and Tacoma Short Bed
• Diode Dynamics IBEX A2 Bed Rack for Jeep Gladiator

Frequently Asked Questions

The DIODD8726 is the Diode Dynamics x Kuat IBEX A3 Bed Rack kit designed for the 2019-2025 Ford Ranger and 2022-2025 Nissan Frontier with short beds. The kit integrates an SS10 Chase Light, four Stage Series Rock Lights, and all necessary wiring into a single bolt-on overland rack system.

Yes. The DIODD8726 A3 kit geometry covers the short-bed configuration of the 2019-2025 Ford Ranger and the 2022-2025 Nissan Frontier. The adjustable telescopic crossbars accommodate bed widths from 37.75 inches to 50.375 inches.

The DIODD8726 supports up to 1,200 lbs of static weight and 300 lbs of dynamic weight while the vehicle is in motion. This makes it capable of carrying rooftop tents, overland containers, recovery equipment, and other heavy gear.

Yes. The IBEX rack platform supports retractable tonneau covers from Retrax, BAK, and LineX with the optional IBEX Retractable Tonneau Adapter, sold separately from the DIODD8726 kit.

The SS10 Chase Light included in the DIODD8726 is CHMSL-compliant and functions as a legal center high-mounted stop light, meaning the brake light function is street legal. Strobing patterns are intended for off-road use in accordance with local laws.

The DIODD8726 includes four Stage Series Rock Lights, each rated at 4.5W with 960 lumens white and 220 lumens amber output. All four are IP69K waterproof rated for trail and washing conditions.

The DIODD8726 is a bolt-on installation with no drilling or cutting required. Most installers complete the full rack and lighting integration in 2 to 4 hours using basic hand tools and following the included guide.

Diode Dynamics backs the DIODD8726 IBEX A3 Bed Rack with a Limited Lifetime Warranty against defects in materials and workmanship on the rack structure and lighting components.

Yes. The DIODD8726 is confirmed to fit the 2019 through 2025 Ford Ranger short bed, including the current-generation models, as confirmed by Diode Dynamics' official fitment guide using bed length and width measurements.
