fifteen52 Alpen SV 17x8 6x130 BP 40mm ET 6.08 BS 84.1 Bore Desert Bronze Wheel

Cast A356-T6 Sprinter Van Wheel in Desert Bronze for 6x130 Applications

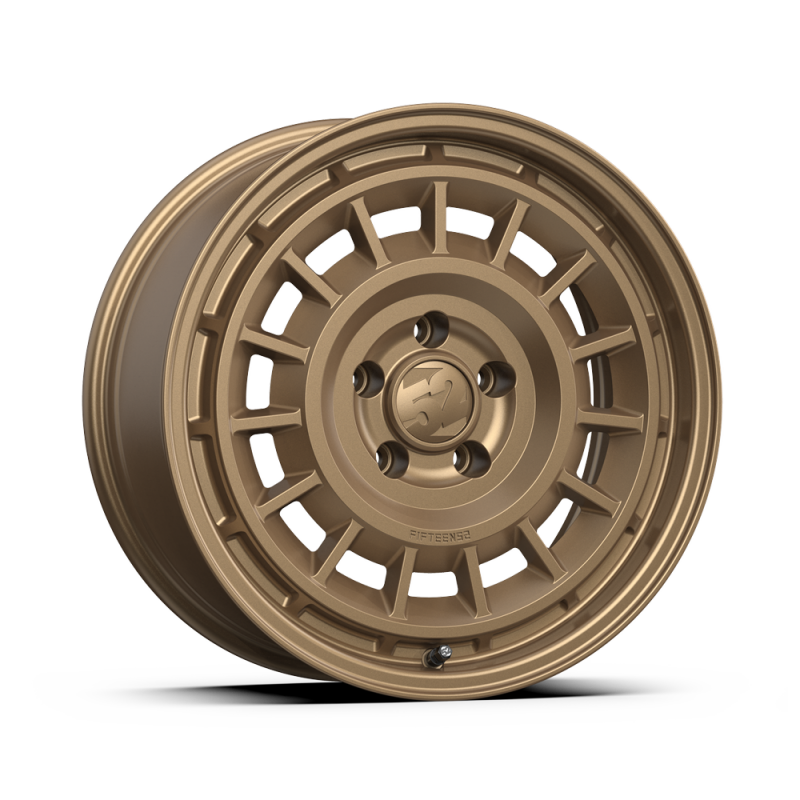

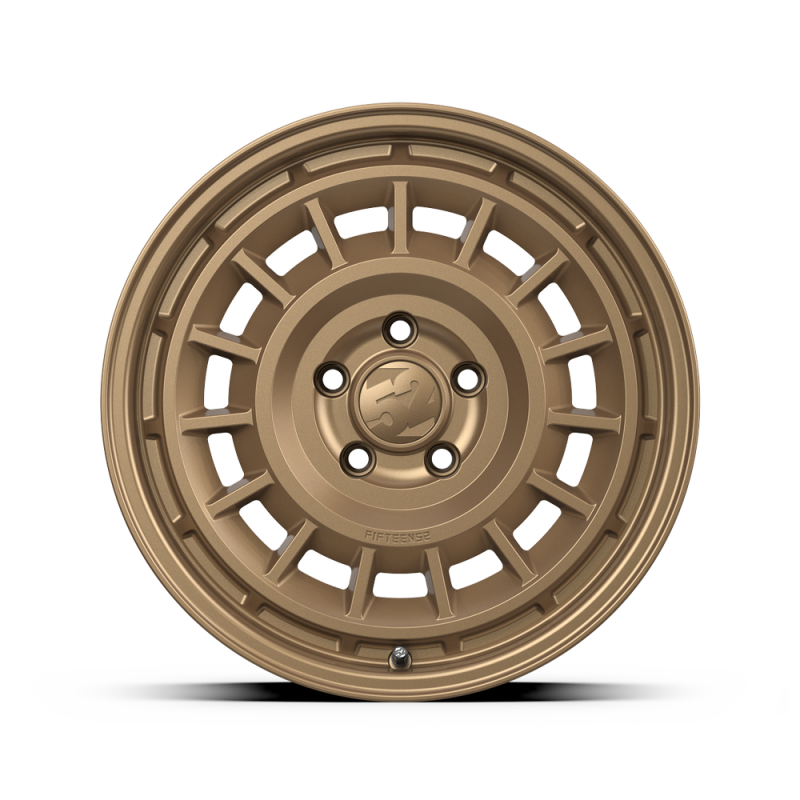

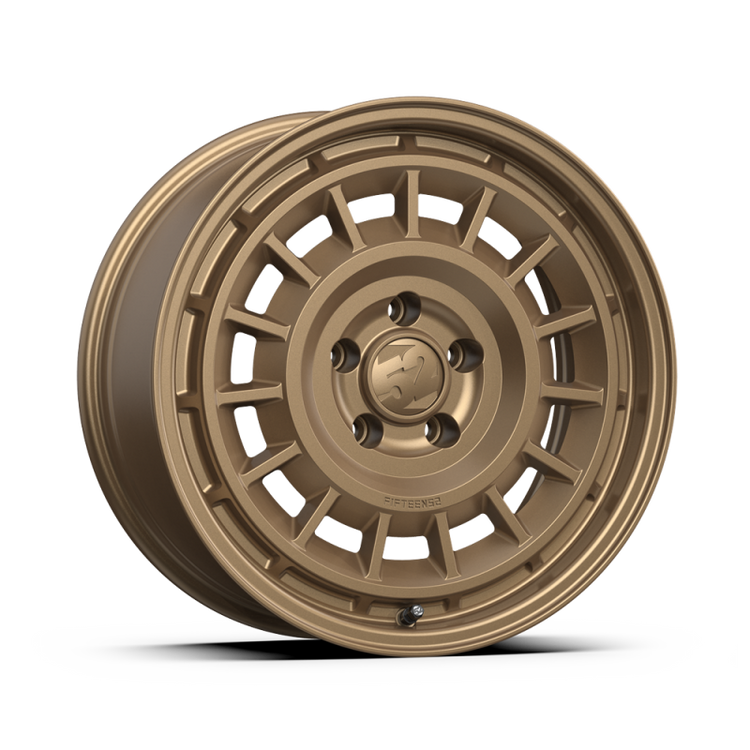

The fifteen52 Alpen SV NSVDB-78063+40 is the Desert Bronze variant of the Alpen SV, designed specifically for the 6x130 bolt pattern on the Mercedes-Benz Sprinter van and Volkswagen Crafter. Cast in A356-T6 aluminum alloy in a 17x8 size with a 40mm offset and an 84.1mm center bore, NSVDB-78063+40 fits Sprinter 2500 and 3500 models directly without spacers or adapters. The Desert Bronze finish is a warm matte bronze powder coat that pairs naturally with overland and adventure van builds. Load rating is 1,834 lbs per wheel. TPMS compatible. Sold individually with a color-coded center cap.

This Part Fits

Key Features

• Cast A356-T6 aluminum alloy, one-piece construction for the 6x130 Sprinter bolt pattern
• 84.1mm center bore matches the Mercedes-Benz Sprinter hub bore directly
• Desert Bronze matte finish complements overland and adventure van aesthetics
• 1,834 lb load rating per wheel suitable for loaded cargo and camper van configurations
• TPMS compatible with Sprinter OEM and aftermarket TPMS sensors
• 17x8 footprint accepts 245/70R17 and 265/65R17 all-terrain tires
• MPN: NSVDB-78063+40

What is Included

• 1 x fifteen52 Alpen SV 17x8 6x130 40mm Desert Bronze wheel (NSVDB-78063+40)
• 1 x color-coded fifteen52 center cap
• Lug hardware sold separately; Sprinter uses M14x1.5 lug bolts

Installation Instructions

1. Confirm your Mercedes-Benz Sprinter uses the 6x130 bolt pattern and 84.1mm hub bore (applies to NCV3 2007 to 2018 and VS30 2019 and newer).
2. Use the correct M14x1.5 Sprinter lug bolts; do not substitute generic lug nuts.
3. Torque lug bolts to 180 Nm (133 ft-lbs) in a star pattern per Mercedes-Benz specification.
4. Verify TPMS sensor compatibility prior to installation.
5. Re-torque after 50 miles of initial driving.
6. Inspect NSVDB-78063+40 finish periodically and touch up any chips to prevent corrosion at the alloy surface.

Specifications

Frequently Asked Questions

Q: How does NSVDB-78063+40 differ from NSVFG-78063+40?
A: Both are the fifteen52 Alpen SV in 17x8 6x130 40mm with identical specs. NSVDB-78063+40 has the Desert Bronze (matte bronze) finish, while NSVFG-78063+40 has the Frosted Graphite (satin grey) finish.

Q: Will this fit a Mercedes-Benz Sprinter 3500 dual rear wheel configuration?
A: The Alpen SV NSVDB-78063+40 is designed for single rear wheel Sprinter configurations. Dual rear wheel setups require dedicated inner and outer wheel fitments.

Q: Is the Desert Bronze finish durable for daily van use?
A: Yes. The matte bronze powder coat is designed for regular use. Clean with a pH-neutral wheel cleaner and avoid pressure washing directly at the finish from close range to preserve the matte texture.

Q: What lug bolts are required for the Sprinter?
A: Mercedes-Benz Sprinter vans use M14x1.5 lug bolts torqued to 180 Nm. Do not use standard aftermarket lug nuts, as Sprinters are bolt-style, not stud-style.

Q: Can NSVDB-78063+40 handle heavy overland loads?
A: The 1,834 lb per wheel load rating and four-wheel combined capacity of 7,336 lbs exceeds the GVWR of most Sprinter 2500 models. Loaded 3500 models with heavier payloads should verify axle loads against the per-wheel rating.

Q: Does this wheel pair well with an all-terrain tire for overlanding?
A: Yes. The 17x8 size accepts popular all-terrain tires in 245/70R17 and 265/65R17 sizes, both widely available in Sprinter-specific load ratings (SL and XL).

Q: Is the Alpen SV TUV certified?
A: The Evolution MX and other fifteen52 models confirm SAE testing; TUV certification for select models is available in European markets. Confirm with fifteen52 for the latest certification status on the Alpen SV.

Q: Will the 40mm offset cause any tire-to-fender contact on a stock Sprinter?
A: The stock Sprinter offset is 50 to 62mm. At 40mm, the NSVDB-78063+40 sits slightly more outboard than stock. Most standard tire sizes clear the Sprinter fender at this offset; verify with your specific Sprinter body configuration and tire width.
