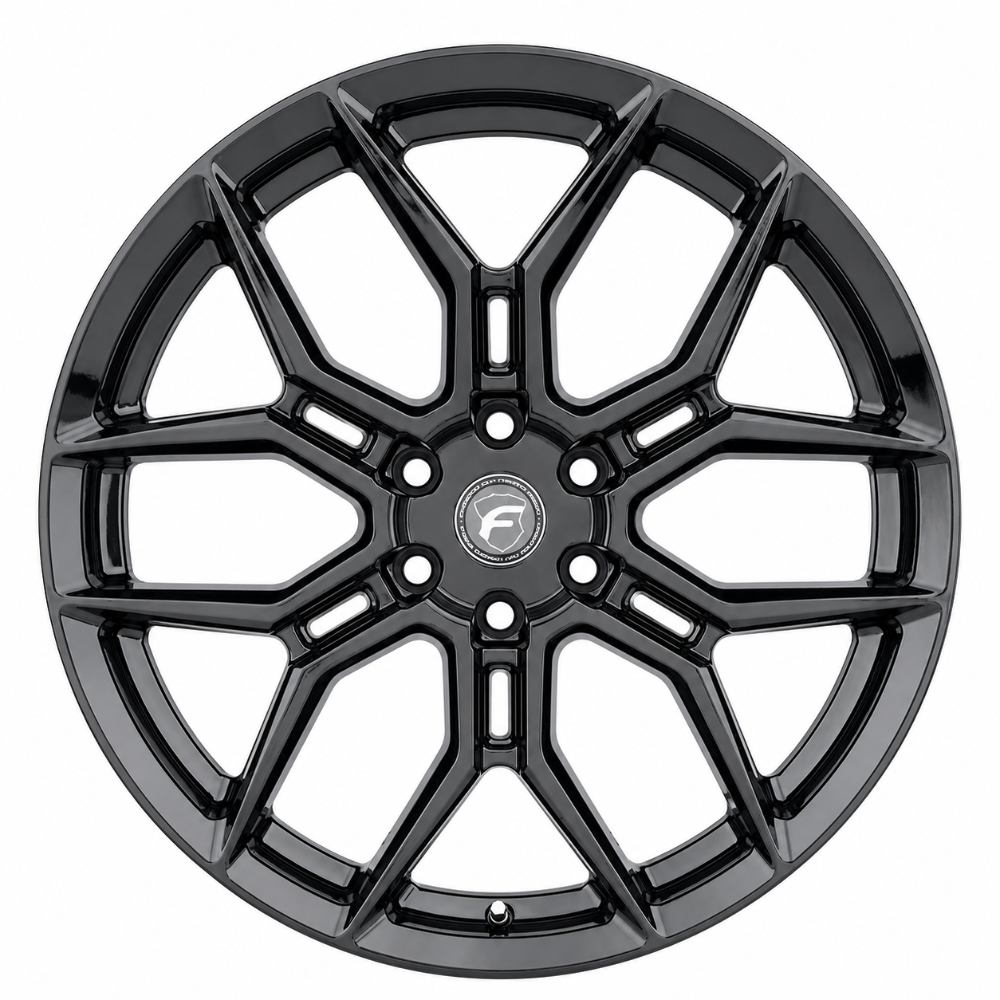

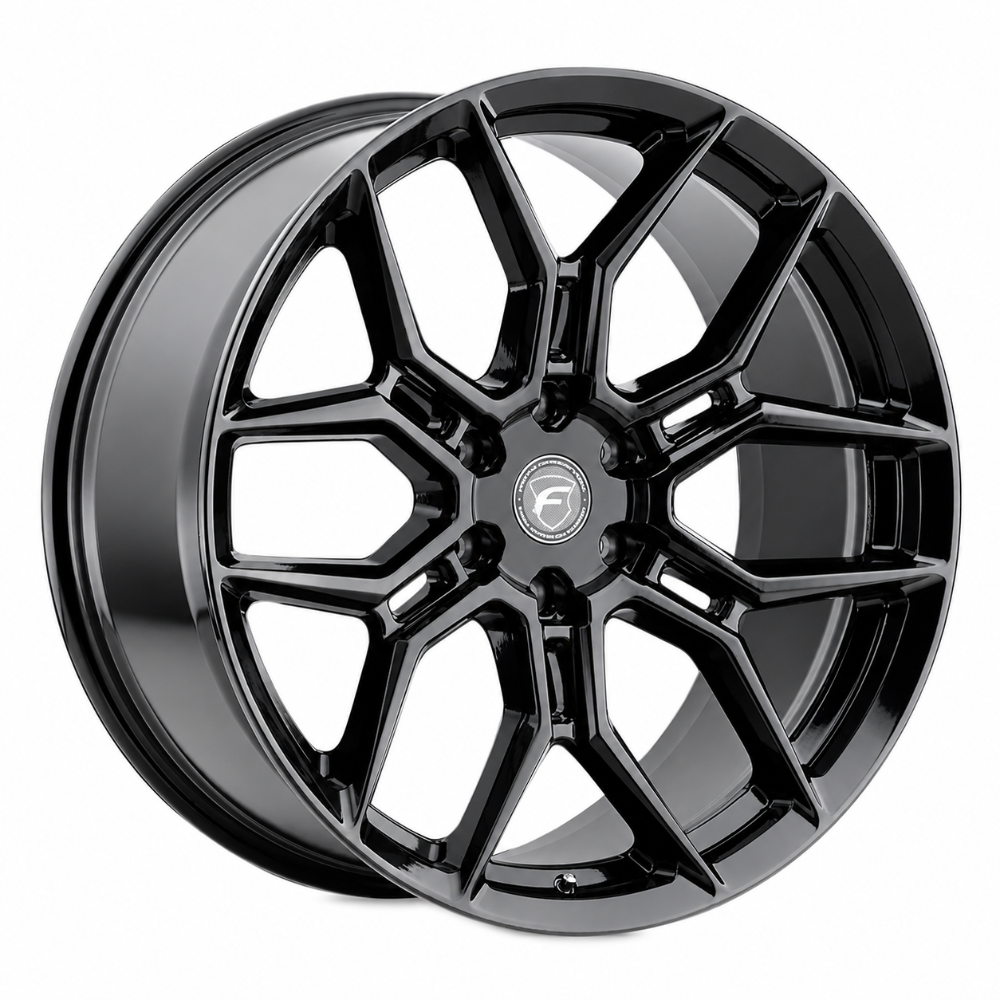

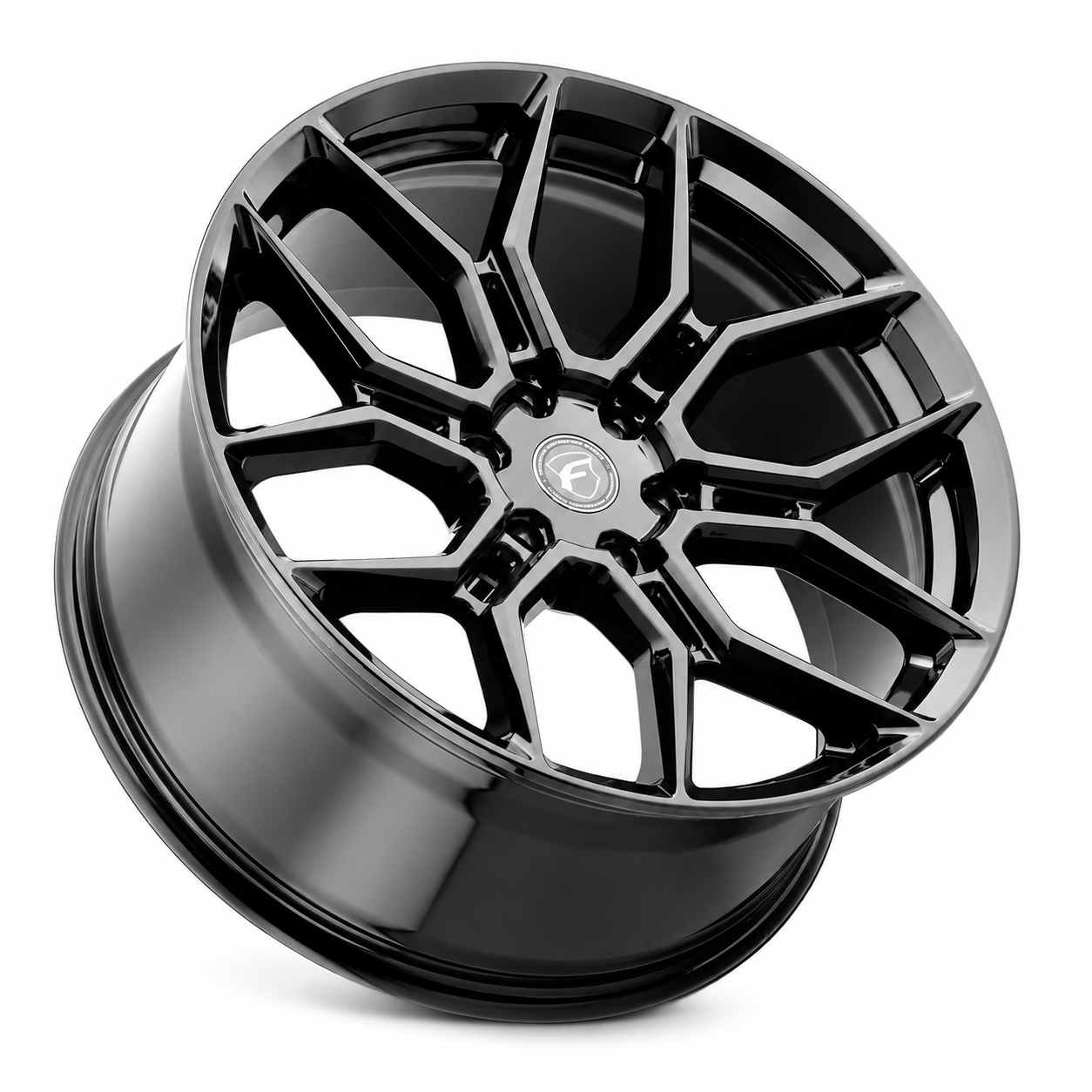

Deep Concave Multi-Spoke Style for Modern Full-Size Trucks: Forgestar X12 22x10 in Gloss Black
The Forgestar F03120089P30 is the X12 wheel in 22x10, 6x135 bolt pattern, +30mm offset, Gloss Black finish. Designed specifically for the Ford F-150, Ford Expedition, and Lincoln Navigator 6x135 platform, the X12 brings a multi-spoke luxury truck aesthetic with rotary forged monoblock construction that keeps weight down without sacrificing the strength needed for daily driving.
At 22 inches with a 6.68-inch backspace and 87.1mm hub bore, the F03120089P30 is a direct fit for the Ford 6x135 application without requiring hub-centric rings. The Gloss Black finish provides a clean, high-contrast look that works across factory truck colors and aftermarket paint. Each wheel is sold individually. Conical or tapered seat lug nuts are required.
Key Features
- F03120089P30: Forgestar X12 in 22x10, 6x135, +30mm offset, Gloss Black, sold individually
- Rotary forged monoblock construction for reduced unsprung weight and increased barrel strength
- 87.1mm hub bore: direct fit for Ford F-150 (2004+), Ford Expedition (2003+), Lincoln Navigator (2003+)
- 6.68-inch backspace (169.7mm) in the 22x10 +30 configuration
- 6-spoke deep concave face; 45 lb per wheel; 2,500 lb load rating
- Gloss Black finish: high-gloss anodized surface with strong visual contrast against brake components
- Non-directional: can be mounted on either side of the vehicle
- Conical/tapered seat lug nuts required (not included)
- Also available in Satin Anthracite (F03420089P30)
- Forgestar lifetime structural warranty; 1-year finish warranty
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2004-2026 | Ford | F-150 |
| 2003-2026 | Ford | Expedition |
| 2003-2026 | Lincoln | Navigator |
| 2006-2008 | Lincoln | Mark LT |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | F03120089P30 |
| SKU | FRGF03120089P30 |
| UPC | N/A |
| Brand | Forgestar |
| Model | X12 |
| Diameter | 22 inches |
| Width | 10 inches |
| Bolt Pattern | 6x135 |
| Offset | +30mm |
| Backspacing | 6.68 inches (169.7mm) |
| Hub Bore | 87.1mm |
| Weight | 45 lbs |
| Load Rating | 2,500 lbs |
| Spokes | 6 |
| Concavity | Deep Concave |
| Construction | Rotary Forged Monoblock |
| Finish | Gloss Black |
| True Directional | No |
| Lug Seat | Conical/Tapered (lug nuts not included) |
| Quantity | Sold Individually |
What's Included
- One (1) Forgestar X12 22x10 6x135 +30mm Gloss Black wheel (F03120089P30)
- Center cap
About Forgestar
Forgestar is a California-based wheel manufacturer recognized for developing rotary forged flow-form aluminum technology in the performance aftermarket. Using high-pressure rollers applied to cast preforms during production, Forgestar wheels achieve a denser barrel grain structure that delivers strength beyond what conventional casting methods provide at the same weight. Forgestar supplies wheels across F-150, Mustang, Camaro, Challenger, and full-size truck platforms worldwide, and has been in the performance wheel market since 2008. Forgestar offers a lifetime structural warranty and a 1-year finish warranty on their wheels.
Related Parts on Our Site
- F03420089P30 -- Forgestar X12 22x10 6x135 ET30 Satin Anthracite Wheel
- F27200089P38 -- Forgestar F14 Drag 20x10 6x135 ET38 Satin Black Wheel
Frequently Asked Questions
What is the F03120089P30?
The F03120089P30 is the Forgestar X12 wheel in 22x10, 6x135 bolt pattern, +30mm offset, Gloss Black finish. It is a rotary forged monoblock aluminum wheel with an 87.1mm hub bore and a deep concave 6-spoke face, sold individually, designed for the Ford F-150, Ford Expedition, and Lincoln Navigator 6x135 platform.
What vehicles fit F03120089P30?
The F03120089P30 fits the 2004 and newer Ford F-150, the 2003 and newer Ford Expedition, the 2003 and newer Lincoln Navigator, and the Lincoln Mark LT (2006 to 2008). All use the 6x135 bolt pattern with an 87.1mm hub bore. The X12 in 22x10 +30 is most commonly used on 2018 and newer Expedition and Navigator applications where the 22-inch size is factory-supported.
Does F03120089P30 require hub-centric rings on the F-150?
No. The F03120089P30 has an 87.1mm hub bore which matches the factory hub bore on the Ford F-150. Hub-centric rings are not required when mounting F03120089P30 on a stock Ford F-150 hub.
What lug nuts does F03120089P30 need?
The F03120089P30 requires conical or tapered seat lug nuts. Most modern Ford F-150, Expedition, and Navigator applications use M14x1.5 thread pitch lug nuts. Standard factory ball-seat lug nuts will not seat correctly on the F03120089P30 and must be replaced with tapered seat hardware.
What tire size works with F03120089P30 on the F-150?
The most common tire pairing for F03120089P30 on a Ford F-150 is 285/45R22 or 295/45R22. On the Ford Expedition and Lincoln Navigator, 285/45R22 is also the standard pairing at this wheel size.
How does the rotary forged process make F03120089P30 stronger?
Rotary forging applies heated, high-pressure spinning rollers to the barrel of a cast aluminum preform. The mechanical pressure densifies and aligns the aluminum grain structure through the barrel wall, producing a wall that is stronger per unit of thickness than a conventionally cast barrel. The result is a wheel that can be made with thinner walls to save weight while maintaining structural integrity.
Is F03120089P30 available in other sizes?
The Forgestar X12 in the 6x135 Ford bolt pattern is available in 22x10 and 24x10. The F03120089P30 is the 22x10 Gloss Black version. Satin Anthracite in 22x10 is available as F03420089P30. Both share the same +30mm offset and 6.68-inch backspace.
Can F03120089P30 be used on a lifted F-150?
The F03120089P30 can be used on a lifted F-150 but fitment depends on your lift configuration, tire size, and fender clearance. The +30mm offset provides moderate outward wheel placement. Verify clearance between the wheel barrel and suspension components with your specific lift and tire combination before purchasing.
Installation Instructions
- Confirm F03120089P30 bolt pattern (6x135), offset (+30mm), and hub bore (87.1mm) are compatible with your vehicle
- Source conical/tapered seat lug nuts in M14x1.5 thread pitch (standard for Ford F-150, Expedition, Navigator) before installation
- Mount and balance tires on F03120089P30 before mounting on the vehicle
- Thread lug nuts by hand, confirm proper seating, then torque in a star pattern to the factory spec (150 ft-lbs on most Ford F-150 applications)
- Re-torque after the first 50 to 100 miles of driving
