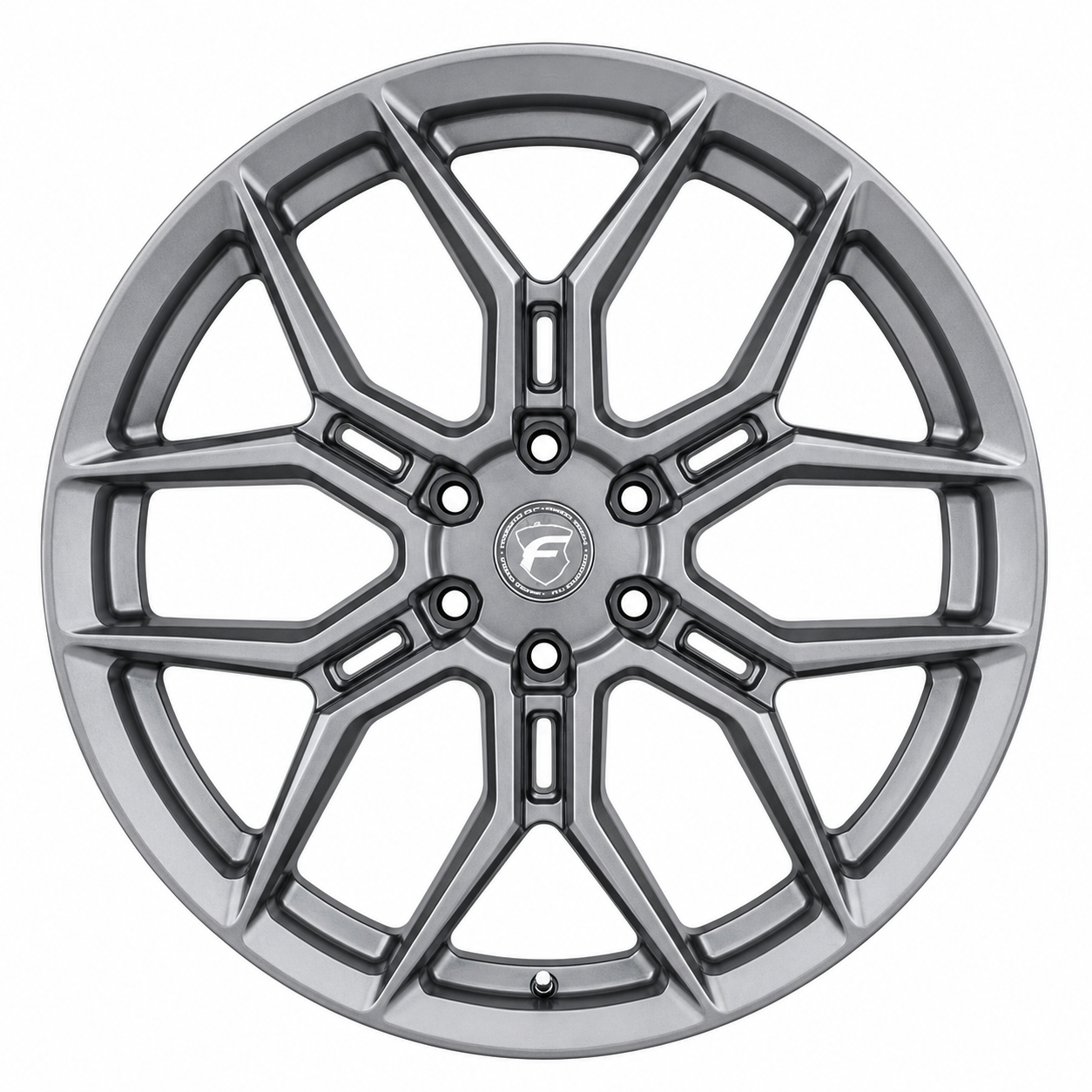

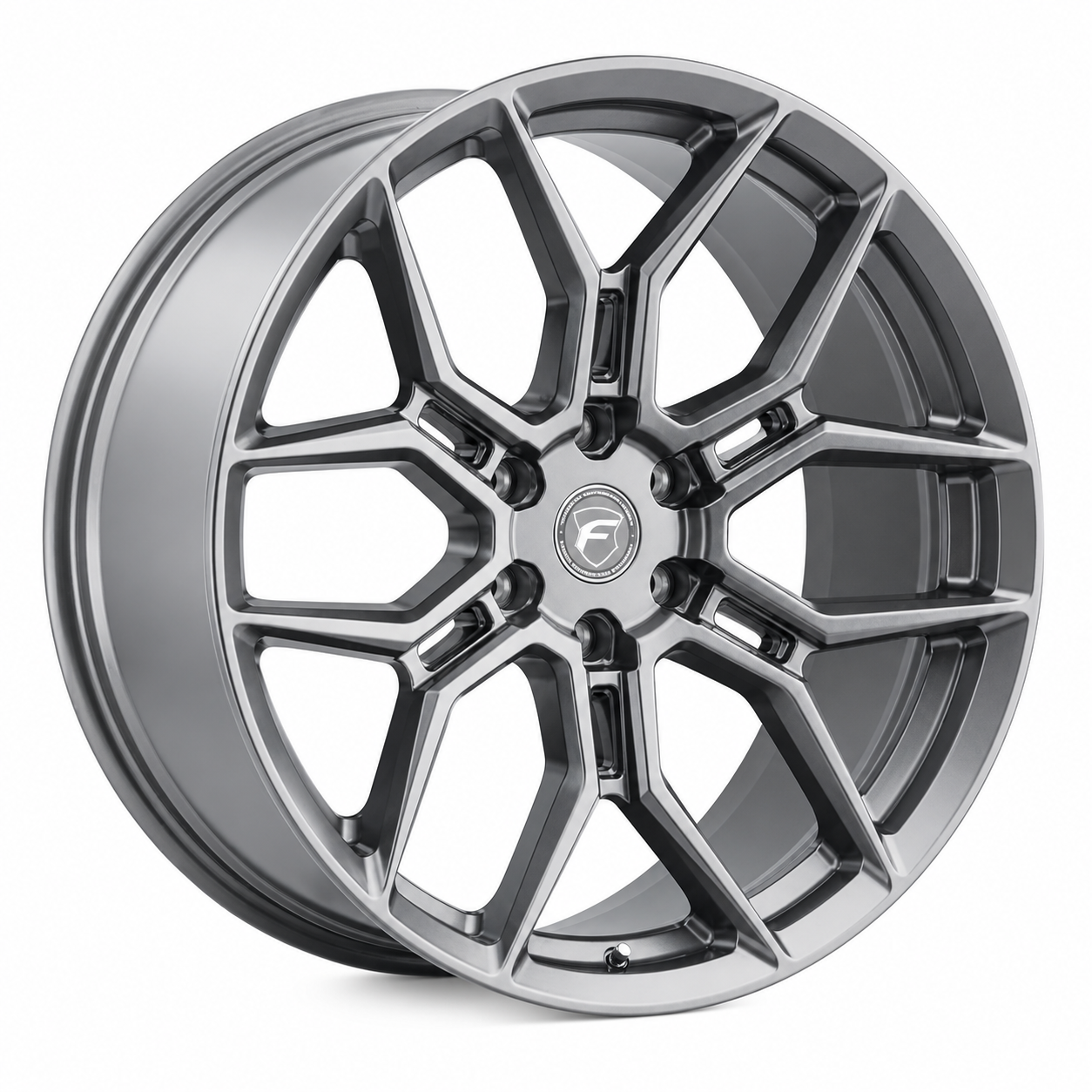

Understated and Aggressive: Forgestar X12 22x10 6x135 in Satin Anthracite for Ford Trucks
The Forgestar F03420089P30 is the X12 wheel in 22x10, 6x135 bolt pattern, +30mm offset, Satin Anthracite finish. It shares the same rotary forged monoblock construction and deep concave multi-spoke face geometry as the Gloss Black X12, but the Satin Anthracite finish delivers a darker, low-reflective look that reads closer to gunmetal than standard black finishes. The F03420089P30 is built for the Ford F-150, Ford Expedition, and Lincoln Navigator 6x135 platform, with an 87.1mm hub bore that matches the factory hub on all three vehicles. Backspace is 6.68 inches at +30mm offset in the 22x10 configuration. Conical or tapered seat lug nuts are required. Sold individually.
Key Features
- F03420089P30: Forgestar X12 in 22x10, 6x135, +30mm offset, Satin Anthracite, sold individually
- Rotary forged monoblock construction: stronger barrel grain structure than conventional cast aluminum
- 87.1mm hub bore: direct hub-centric fit for Ford F-150 (2004+), Expedition (2003+), Lincoln Navigator (2003+)
- 6.68-inch backspace (169.7mm) in the 22x10 +30 configuration
- 6-spoke deep concave face profile; 45 lb per wheel; 2,500 lb load rating
- Satin Anthracite finish: low-gloss gunmetal tone with reduced reflectivity for a stealthy truck look
- Non-directional design: mounts on either side of the vehicle
- Conical/tapered seat lug nuts required (not included)
- Also available in Gloss Black (F03120089P30)
- Forgestar lifetime structural warranty; 1-year finish warranty
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2004-2026 | Ford | F-150 |
| 2003-2026 | Ford | Expedition |
| 2003-2026 | Lincoln | Navigator |
| 2006-2008 | Lincoln | Mark LT |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | F03420089P30 |
| SKU | FRGF03420089P30 |
| UPC | N/A |
| Brand | Forgestar |
| Model | X12 |
| Diameter | 22 inches |
| Width | 10 inches |
| Bolt Pattern | 6x135 |
| Offset | +30mm |
| Backspacing | 6.68 inches (169.7mm) |
| Hub Bore | 87.1mm |
| Weight | 45 lbs |
| Load Rating | 2,500 lbs |
| Spokes | 6 |
| Concavity | Deep Concave |
| Construction | Rotary Forged Monoblock |
| Finish | Satin Anthracite |
| True Directional | No |
| Lug Seat | Conical/Tapered (lug nuts not included) |
| Quantity | Sold Individually |
What's Included
- One (1) Forgestar X12 22x10 6x135 +30mm Satin Anthracite wheel (F03420089P30)
- Center cap
About Forgestar
Forgestar is a California-based wheel manufacturer that developed rotary forged flow-form aluminum production methods used widely in the performance aftermarket. Their process applies high-pressure rollers to cast aluminum preforms during spinning, compressing the grain structure of the barrel to produce a stronger, lighter wheel than a standard casting. Forgestar builds wheels for F-150, Mustang, Camaro, and full-size truck platforms, and has served the performance wheel market since 2008 with products designed and engineered in California. Forgestar offers a lifetime structural warranty and a 1-year finish warranty on their wheels.
Related Parts on Our Site
- F03120089P30 -- Forgestar X12 22x10 6x135 ET30 Gloss Black Wheel
- F27200089P38 -- Forgestar F14 Drag 20x10 6x135 ET38 Satin Black Wheel
Frequently Asked Questions
What is the F03420089P30?The F03420089P30 is the Forgestar X12 wheel in 22x10, 6x135 bolt pattern, +30mm offset, Satin Anthracite finish. It is a rotary forged monoblock aluminum wheel with a deep concave 6-spoke face and an 87.1mm hub bore, sold individually, designed for the Ford F-150, Ford Expedition, Lincoln Navigator, and Lincoln Mark LT 6x135 platform.
What is the difference between F03420089P30 and F03120089P30?The F03420089P30 is the Satin Anthracite version of the Forgestar X12 22x10 6x135 +30. The F03120089P30 is the Gloss Black version. Both share identical dimensions, construction, and fitment. The only difference is the surface finish: Satin Anthracite is a low-gloss dark gunmetal, while Gloss Black is a high-shine reflective black.
Does F03420089P30 require hub-centric rings?No. The F03420089P30 has an 87.1mm hub bore which is a direct match for the Ford F-150, Expedition, and Lincoln Navigator factory hubs. No hub-centric rings are required when mounting on these platforms.
What lug nuts are required for F03420089P30?Conical or tapered seat lug nuts are required for F03420089P30. On the Ford F-150, Expedition, and Navigator, M14x1.5 is the standard lug nut thread pitch. Factory ball-seat lug nuts will not seat correctly and must be replaced before mounting these wheels.
What tire size pairs with F03420089P30 on the F-150?A 285/45R22 or 295/45R22 tire is the most common pairing for the F03420089P30 on a Ford F-150. On the Expedition and Navigator, 285/45R22 is the typical factory-adjacent fitment at this wheel size. Run your specific application through a wheel fitment or tire calculator to confirm clearance.
Is F03420089P30 a directional wheel?No. The F03420089P30 is a non-directional wheel and can be mounted on either the driver-side or passenger-side position. This allows normal tire rotation patterns to be maintained.
How does the Satin Anthracite finish wear on the F03420089P30?Satin Anthracite is a low-reflectivity anodized finish applied over the aluminum. It resists brake dust and road grime from showing as readily as a high-gloss finish. Clean with pH-neutral wheel cleaner and avoid abrasive compounds or wire brushes. The Satin finish does not respond to wheel polish the same way a machined surface does.
What vehicles use the 6x135 bolt pattern for F03420089P30?The 6x135 bolt pattern is used by Ford and Lincoln full-size trucks and SUVs. Compatible platforms for the F03420089P30 include the Ford F-150 (2004 and newer), Ford Expedition (2003 and newer), Lincoln Navigator (2003 and newer), and Lincoln Mark LT (2006 to 2008).
Installation Instructions
- Confirm F03420089P30 bolt pattern (6x135), offset (+30mm), and hub bore (87.1mm) match your application before installation
- Source conical/tapered seat lug nuts in M14x1.5 thread pitch before installation
- Mount and balance tires before mounting wheels on the vehicle
- Thread lug nuts by hand to confirm seating, then torque in a star pattern to factory specification (150 ft-lbs typical on Ford F-150, Expedition, Navigator)
- Re-torque to the same specification after the first 50 to 100 miles of driving
