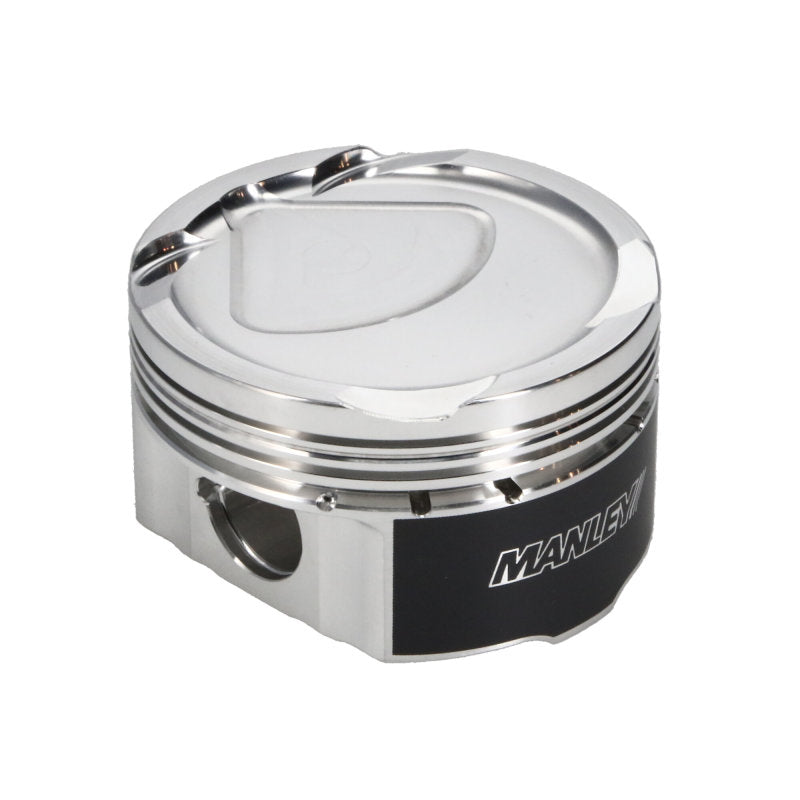

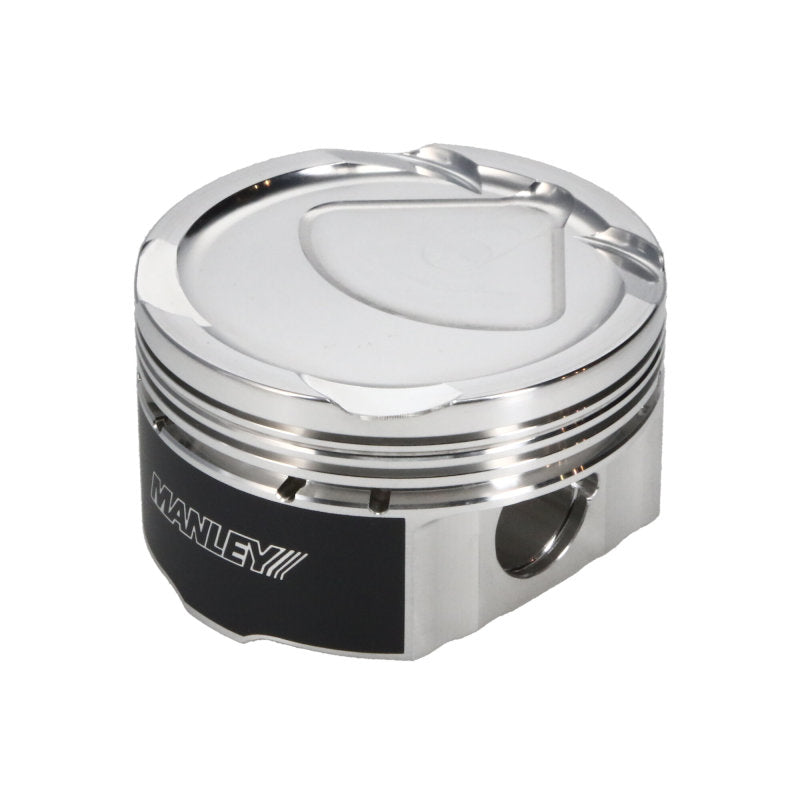

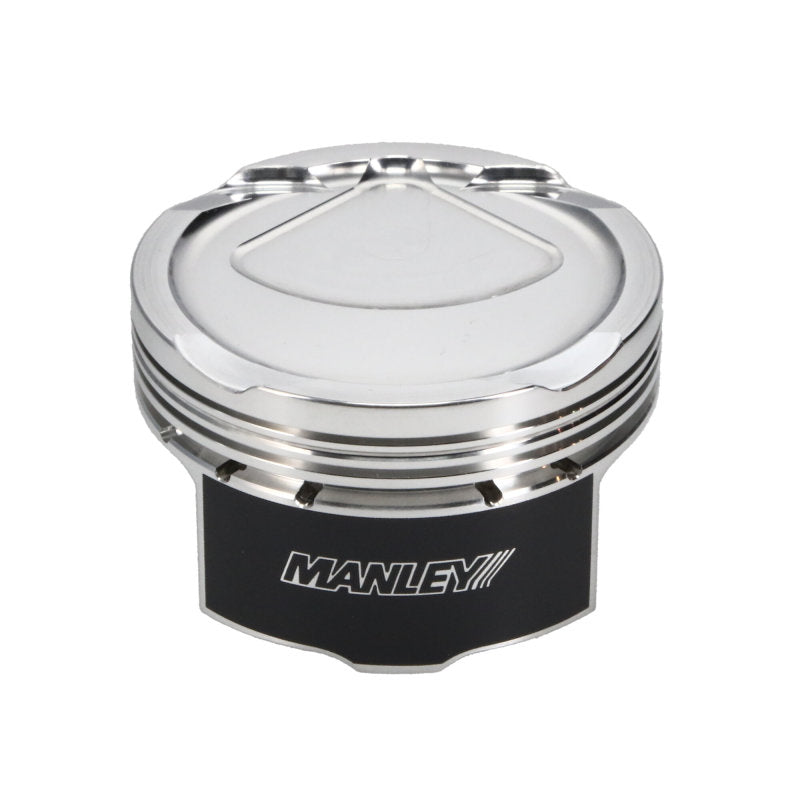

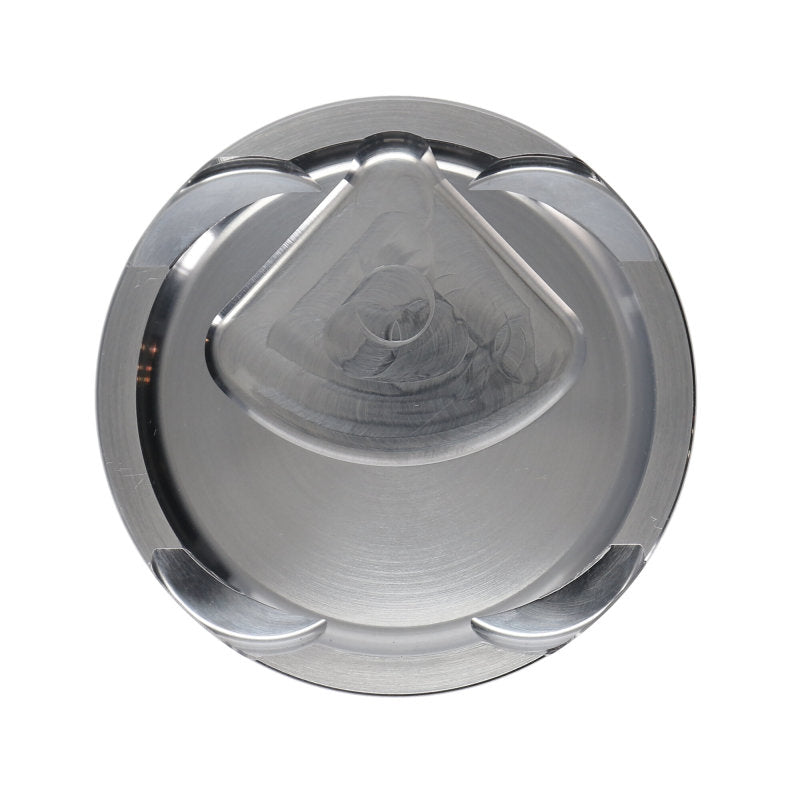

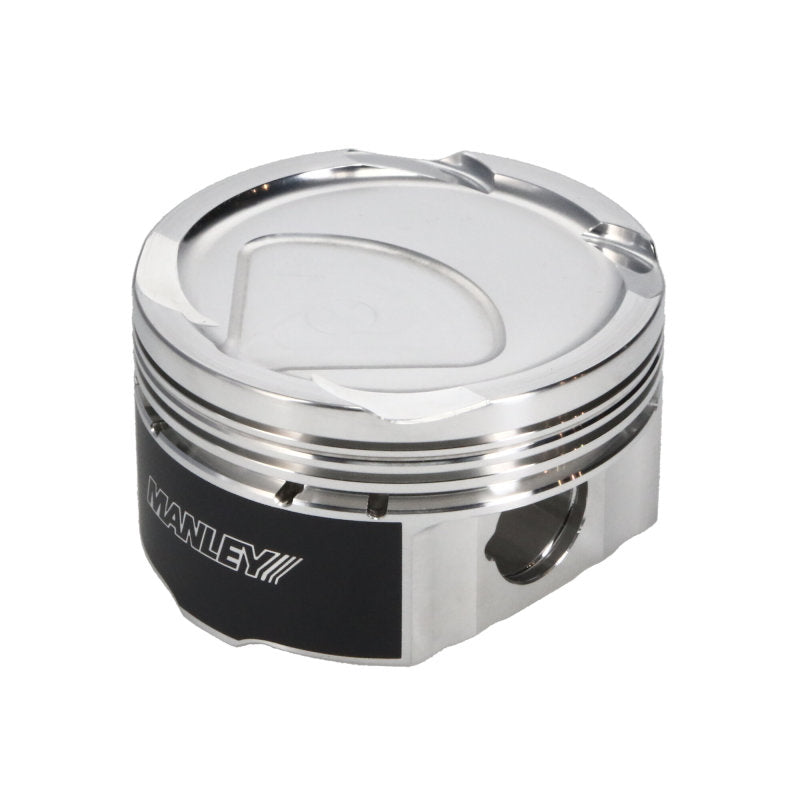

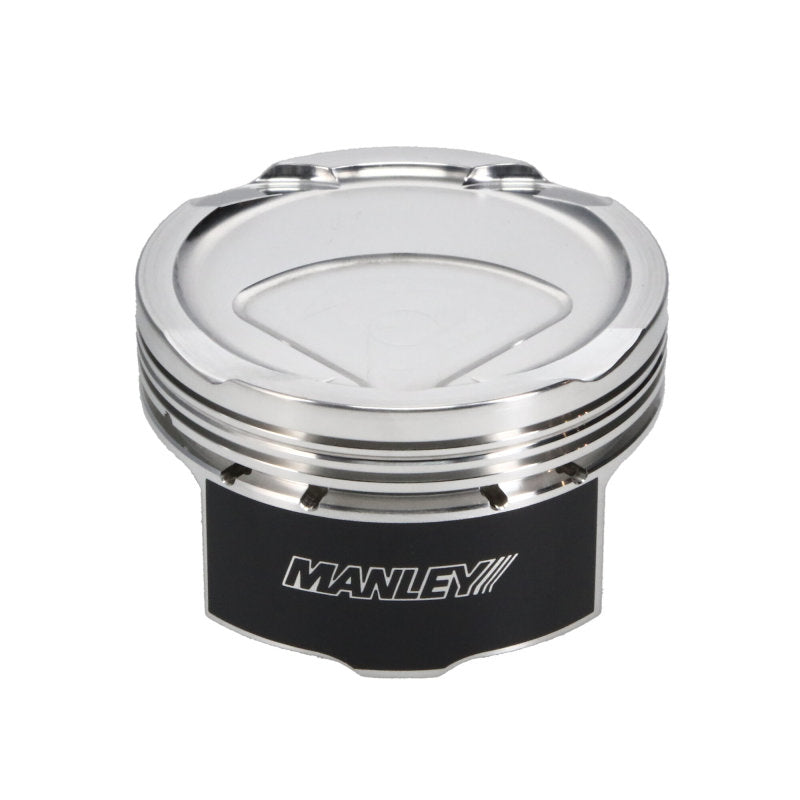

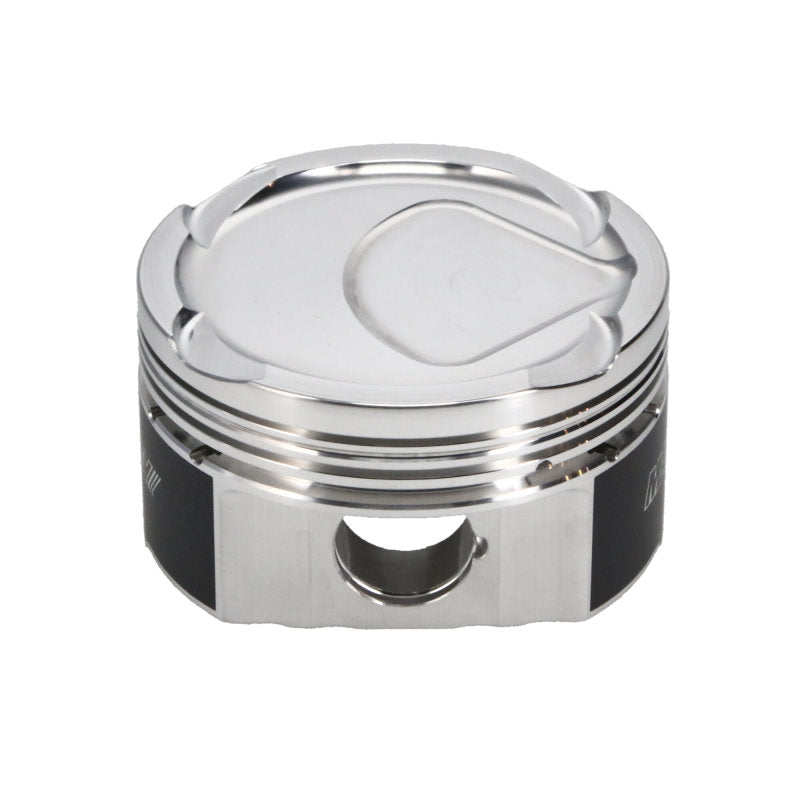

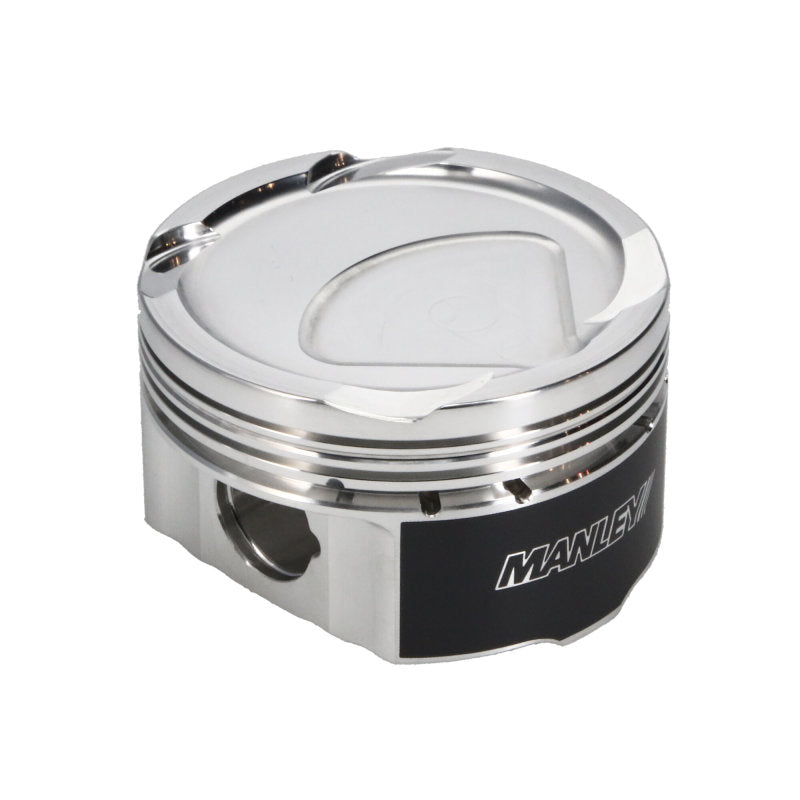

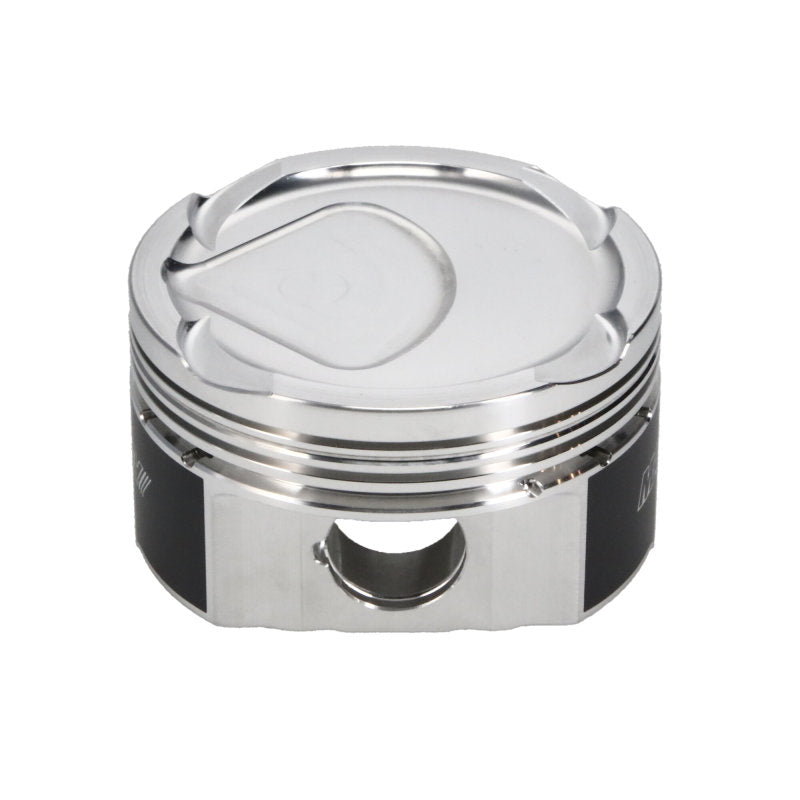

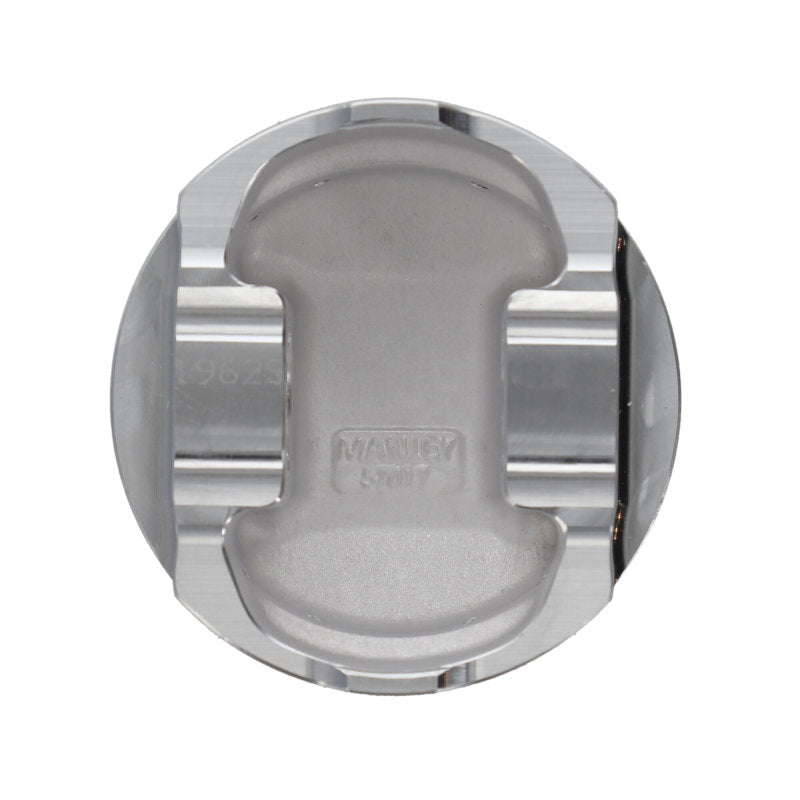

Manley 2013+ Subaru BRZ 86.50mm +.5mm Bore -11.4cc Dish 10.0:1 CR Platinum Series Piston Set

MAN632605C-4
807298101040
Piston Sets - Forged - 4cyl
3 Units In Stock - Ships Next Business Day
$ 813.39 $ 748.32
$ 748.32

SKU: 632605C-4 | UPC: 807298101040

Manley 2013+ Subaru BRZ 86.50mm +.5mm Bore -11.4cc Dish 10.0:1 CR Platinum Series Piston Set

Manley Platinum Series pistons deliver forged performance for 2013+ Subaru BRZ Scion FR-S and Toyota 86 engines with FA20. This set of 4 pistons uses 86.50mm bore size and -11.4cc dish design to achieve 10.0:1 compression ratio in stock head configurations. Engine builders choose these for high boost handling and consistent power output.

Key Features

  • 2618-T61 Forged Alloy: Provides high tensile strength and fatigue resistance for boosted and high RPM applications
  • Proven Skirt Profiles: Cam and barrel shapes reduce noise vibration harshness and promote long term cylinder wall life
  • Tool Steel Wrist Pins: Press fit design with durable material handles extreme loads without failure
  • Moly Skirt Coating: Minimizes friction and wear for smoother operation and better ring seal
  • Precision Specs: 86.50mm bore 30mm compression height 3.35mm 1/2 wall -11.4cc dish volume 1.2 1.5 2.8mm ring grooves

Product Notes

  • Piston rings sold separately recommend Manley MRC9004 MRC9010 MRC9080
  • Accumulator groove aids ring seal under high cylinder pressures
  • Package dimensions 7 x 6.25 x 3.5 inches product weight 3.35 lbs

Installation Notes

  • Professional installation recommended.
  • Machine block to 86.50mm bore clear all carbon from head gasket surface
  • Press fit wrist pins require rod bushing for floating setups if converting

This Part Fits

Year Make Model Submodel
2013-2021 Subaru BRZ Limited Premium Sport
2013-2016 Scion FR-S Base 10 Series Premium
2017-2021 Toyota 86 Base GT Hakone Edition
2022-2024 Subaru BRZ Limited Premium Limited
2022-2024 Toyota GR86 Base Premium

Why Choose Manley?

  • Professional engine builders rely on Manley for race proven components
  • 2618 alloy construction withstands high horsepower levels
  • CNC machining ensures exact tolerances for direct fitment

Frequently Asked Questions

  • Q: Will these pistons fit 2017+ Toyota 86 and GR86 models?
    A: Yes fits all FA20 equipped 2013-2024 Subaru BRZ Scion FR-S Toyota 86 GR86 with 86.50mm bore sizing
  • Q: What material are these pistons made from?
    A: Forged from 2618-T61 aluminum alloy with moly coated skirts and tool steel pins for maximum durability
  • Q: Are rings included and what is the warranty?
    A: Rings sold separately contact Manley for warranty details on manufacturing defects

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective box 7 x 6.25 x 3.5 inches
  • Weight: 3.35 lbs
