Street Friendly Twin Disc Power for the Coyote Platform

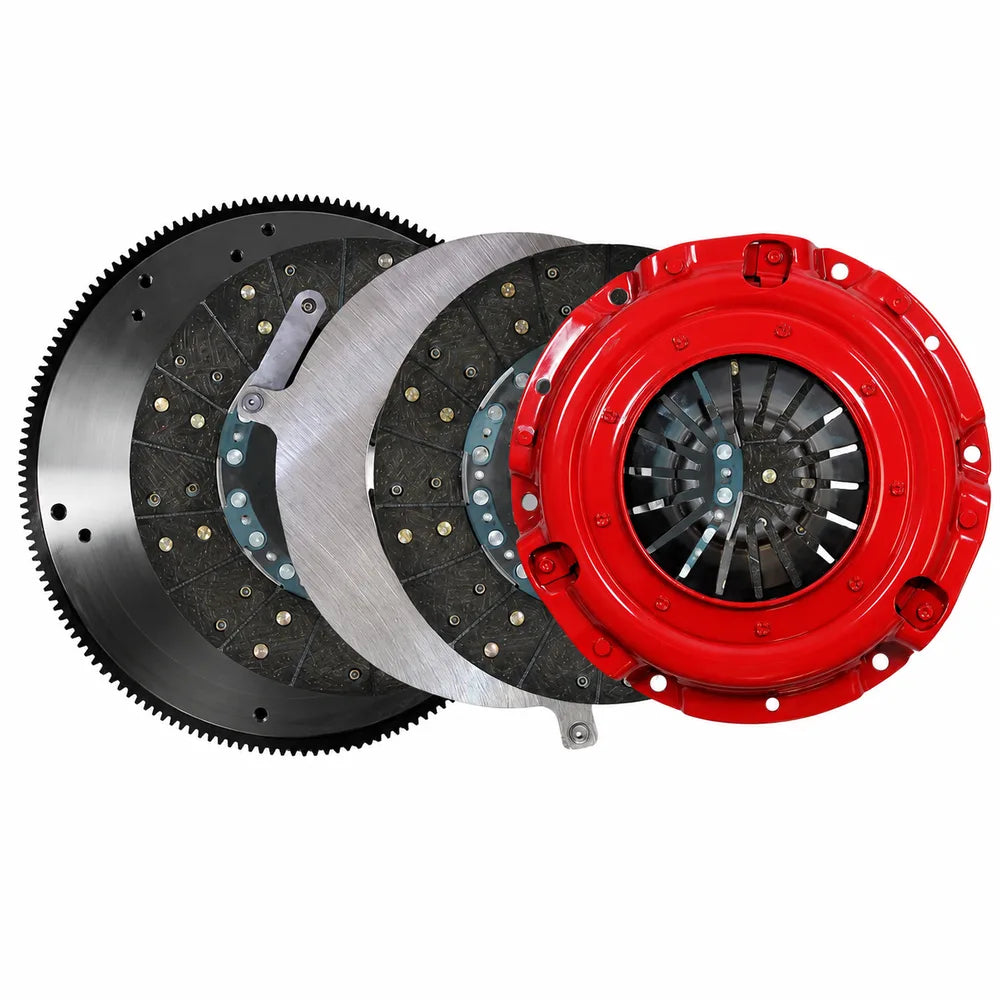

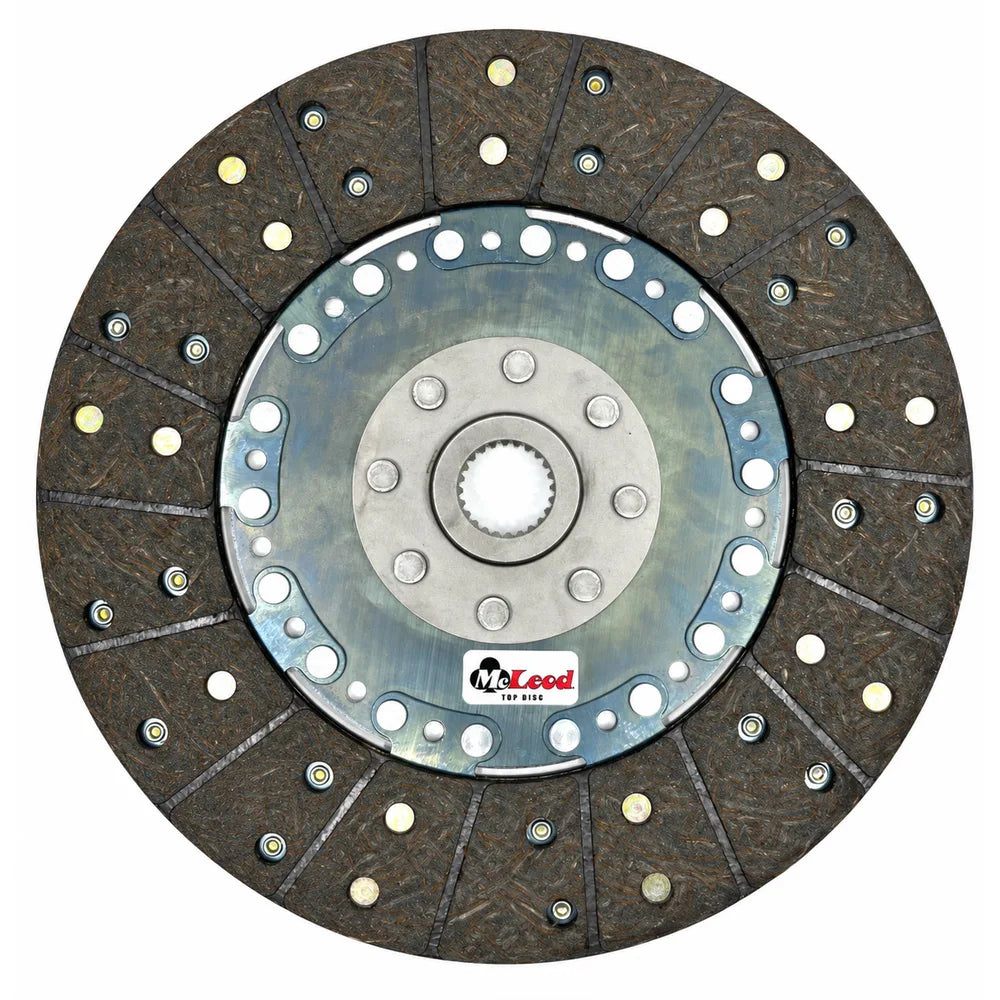

The McLeod RST HD Twin Disc Clutch Kit brings a hybrid friction setup to the 5.0L Coyote powered Mustang, giving GT and Boss 302 owners a clutch that handles serious power increases while keeping the pedal usable for daily driving. Part number MLR6335825MD combines a full-face organic disc with a segmented ceramic disc and ships with a lightweight aluminum flywheel built specifically for the Mustang's 8-bolt Coyote crank.
Key Features
- Hybrid friction combination with organic and segmented ceramic discs for a blend of streetability and holding power
- Rated to support up to 950 horsepower in a twin-disc configuration
- Includes an 8-bolt aluminum flywheel with 164-tooth ring gear
- MLR6335825MD is built for a 9-11/16 inch by 1 by 23-spline Coyote input shaft
- Diaphragm-style pressure plate maintains manageable pedal effort at the track or on the street
- Complete kit includes installation hardware and an alignment tool
Fitment Table
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2011-2017 | Ford | Mustang | GT |
| 2012-2013 | Ford | Mustang | Boss 302 |
Specifications
| Detail | Value |
|---|---|
| MPN | MLR6335825MD |
| Brand | McLeod Racing |
| Horsepower Rating | 950 HP |
| Spline | 9-11/16 inch, 1 x 23 spline |
| Flywheel Material | Aluminum, 164-Tooth, 8-Bolt |
| Disc Material | Organic / Ceramic |
| UPC | Not listed by manufacturer |
What's Included
- McLeod RST HD twin disc clutch assembly
- 8-bolt aluminum flywheel, 164-tooth ring gear
- Installation hardware
- Alignment tool
About McLeod Racing
McLeod Racing has built performance clutch and driveline components for street and race applications for decades, developing hybrid friction technology that balances holding power with everyday drivability. The RST HD line sits between their street focused RST kits and the higher capacity RXT systems, making it a fit for Coyote powered Mustangs running significant power upgrades while still seeing regular street use.
FAQ
What is the MLR6335825MD?The MLR6335825MD is a McLeod Racing RST HD twin disc clutch kit built for the 2011 to 2017 Ford Mustang GT and 2012 to 2013 Boss 302 with the 5.0L Coyote engine. It includes an aluminum flywheel and is rated to support up to 950 horsepower.
Does this kit include a flywheel?Yes, the MLR6335825MD ships with a dedicated 8-bolt aluminum flywheel featuring a 164-tooth ring gear built for the Coyote crank pattern.
What horsepower can this clutch handle?This twin disc clutch kit is rated to support up to 950 horsepower through its combination of organic and segmented ceramic friction discs.
Is this clutch suitable for daily driving?Yes, the RST HD design keeps a street-friendly organic disc on one side while the ceramic side adds holding power, making it usable for both commuting and weekend track days.
Which Mustang models does this clutch fit?The MLR6335825MD fits the 2011 through 2017 Ford Mustang GT and the 2012 through 2013 Boss 302, both equipped with the 5.0L Coyote engine.
What spline does this clutch use?This kit is built for the Coyote platform's 9-11/16 inch disc diameter with a 1 inch by 23-spline input shaft.
Are the throwout bearing and pilot bushing included?No, the throwout bearing and pilot bushing are not included and should be sourced separately if they are not already in usable condition.
How does the RST HD compare to McLeod's standard RST clutch for the Mustang?The RST HD substitutes a segmented ceramic disc for one of the organic discs used in the standard RST, giving it more holding capacity for higher horsepower Coyote builds.
Install Instructions
- Support the vehicle and transmission safely, then remove the transmission and driveshaft per factory procedures.
- Remove the factory dual mass flywheel and clutch assembly from the Coyote crankshaft.
- Install the included aluminum flywheel and torque the bolts to specification.
- Mount the twin disc clutch assembly, aligning both friction discs with the supplied alignment tool.
- Install the pressure plate and torque the cover bolts evenly in a star pattern.
- Install a compatible throwout bearing and pilot bushing, purchased separately if needed.
- Reinstall the transmission, driveshaft, and clutch hydraulic system.
- Complete a proper break-in period before subjecting the clutch to full throttle use.
