SKU: 42050 | UPC: 84663420504

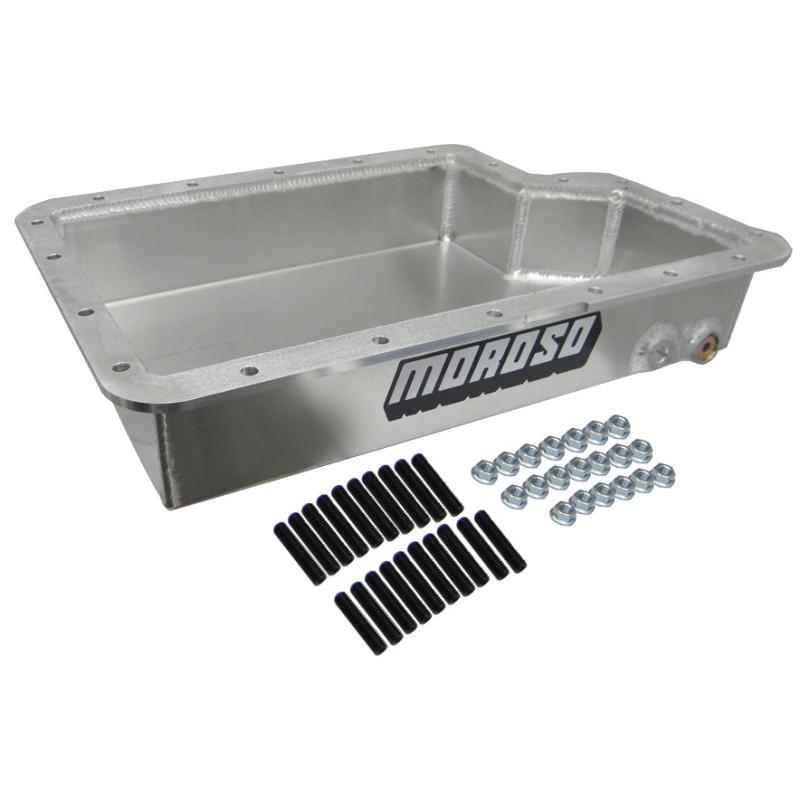

Moroso Ford E4OD/4R100 Transmission Pan - 3.642in Deep 1989-2004 F-Series E-Series
This Moroso transmission pan fits Ford E4OD and 4R100 automatic transmissions in F-250 F-350 Super Duty E-350 Econoline and similar trucks vans from 1989 to 2004. The deep 3.642-inch design holds 3 extra quarts of ATF to lower operating temperatures and improve fluid circulation during towing or performance driving. Built for durability it traps debris and simplifies fluid changes.
Key Features
- Extra Fluid Capacity: Adds 3 quarts over stock for cooler ATF temperatures and extended transmission life under heavy loads
- Fabricated Steel Build: Heavy-duty welded steel withstands high pressure and road abuse in trucks
- Black Wrinkle Finish: Powder-coated exterior resists rust and corrosion for long-term reliability
- Integrated Drain Plug: Magnetic plug and fitting allow quick easy fluid draining without pan removal
- Internal Baffle and Magnet: Traps metal particles and sludge to protect gears and clutches
Product Notes
- Confirm E4OD or 4R100 transmission before purchase using vehicle service manual
- Pair with Moroso gasket part 4790 for leak-free seal
- Pan ships ready to install with all hardware included
Installation Notes
- Professional installation recommended.
- Bolts directly to transmission using stock hardware torque to 12-15 ft-lbs
- Reuse factory gasket or install new one clean mating surfaces first
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1997 | Ford | F-250 | All |
| 1989-1997 | Ford | F-350 | All |
| 1995-2003 | Ford | E-350 Econoline | All |
| 1997-2003 | Ford | F-250 HD | All |
| 1999-2003 | Ford | F-250 Super Duty | All |
| 1999-2004 | Ford | F-350 Super Duty | All |
| 1999-2004 | Ford | Excursion | All |
| 1999-2003 | Ford | F-450 Super Duty | All |
Why Choose Moroso?
- Moroso builds parts for NHRA champions and street performance
- Each pan undergoes rigorous testing for leak-free operation
- Precision welds and fittings ensure exact fit on Ford transmissions
Frequently Asked Questions
-
Q: Does this pan fit 1999-2004 Ford Super Duty trucks with 4R100?
A: Yes it bolts directly to E4OD/4R100 in F-250 F-350 F-450 Super Duty and Excursion models -
Q: What material is the pan made from?
A: 16-gauge fabricated steel with black wrinkle powder coat for strength and rust protection -
Q: Is a gasket included and what is the warranty?
A: Gasket sold separately Moroso offers limited lifetime warranty against defects
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box approximately 20 x 14 x 5 inches
- Weight: 9 lbs shipping weight
