Built for the 1JZ and 2JZ Swap

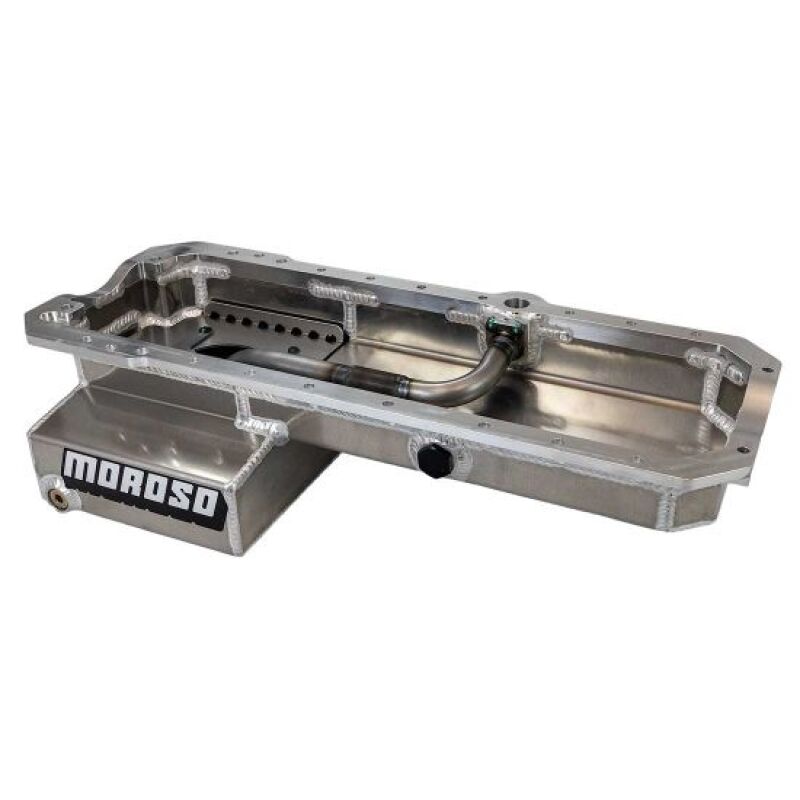

The Moroso 20948 is an aluminum road race oil pan engineered specifically for Toyota 1JZ and 2JZ engine swaps that require a rear sump, wet sump configuration. Moroso part 20948 uses internal baffling to keep oil at the pickup during hard cornering and braking, which matters once these engines are pushed on track. At 5.75 inches deep with a 6 quart capacity, part number 20948 is sized to clear common swap chassis while still providing enough oil volume for sustained high-load driving.
Key Features
- Cast aluminum construction for reduced weight versus a steel pan
- Road race baffling to control oil movement under lateral and braking loads
- Rear sump, wet sump design built for Toyota 1JZ/2JZ swap applications
- 5.75 inch deep sump with 6 quart capacity
- Engineered specifically around the 1JZ/2JZ engine family rather than adapted from another pan
Fitment
| Year Range | Make | Model | Notes |
|---|---|---|---|
| Engine-specific | Toyota | 1JZ/2JZ | Moroso lists this pan by engine family rather than a specific chassis year range; confirm swap compatibility with your specific chassis |
Specifications
| Detail | Value |
|---|---|
| MPN | 20948 |
| UPC | 084663209482 |
| Material | Aluminum |
| Sump Type | Rear sump, wet sump |
| Depth | 5.75 in. |
| Capacity | 6 quarts |
| Design | Road race baffled |
| Engine Application | Toyota 1JZ/2JZ |
What's Included
- 1 x Moroso 20948 aluminum oil pan
Mounting hardware is sold separately. Moroso offers a matching stud kit, part number 38948, for use with the 20948 oil pan.
About Moroso
Moroso Performance Products has manufactured racing oil pans, valve covers, and fluid system components in Guilford, Connecticut since the 1960s, supplying drag racing, road racing, and engine swap builders with purpose-built parts.
Related Parts
- Moroso Toyota 3SGT 2.0L Turbo/5SFE Non Turbo Road Race Baffled Wet Sump 6.25qt 7-9/16in Alum Oil Pan
- Moroso Oil Accumulator - 3 Quart - 20-1/8in x 4.25in
- Moroso Accumulator Mount - 2 Pack
FAQ
What is the 20948?It is a Moroso aluminum road race oil pan built specifically for Toyota 1JZ and 2JZ engine swaps that use a rear sump configuration.
What is the oil capacity of this pan?This pan holds 6 quarts and measures 5.75 inches deep.
Does this pan include mounting hardware?No, the pan does not include studs or nuts. Moroso sells a matching stud kit, part 38948, separately for this application.
What material is this oil pan made from?It is cast aluminum, which reduces weight compared to a fabricated steel pan.
What sump configuration does this pan use?It uses a rear sump, wet sump layout designed around the factory-style oiling location for the 1JZ/2JZ engine family.
Is this pan intended for road racing use?Yes, it includes road race baffling designed to keep oil at the pickup under sustained cornering and braking loads.
Will this pan fit any Toyota chassis with a 1JZ or 2JZ swap?Moroso designs this pan around the 1JZ/2JZ engine rather than a specific chassis, so confirm chassis clearance for your particular swap before ordering.
Does this pan come with an oil pump pickup or dipstick?The manufacturer's retail listing for this pan does not specify an included pickup or dipstick; verify included components with Moroso before your build if this is critical.
Install Instructions
- Drain the engine oil and remove the factory oil pan.
- Thoroughly clean both gasket mating surfaces on the block and the new pan.
- Install new studs into the block's oil pan mounting holes using a thread locking compound.
- Apply a thin bead of silicone sealant at the front and rear seal corners of the gasket.
- Position the oil pan over the studs, aligning it with the gasket.
- Thread on the mounting nuts and torque in a criss-cross pattern to the specification for your engine.
- Refill with the correct oil capacity and check for leaks before extended driving.
