Unleash the Coyote V8 Growl

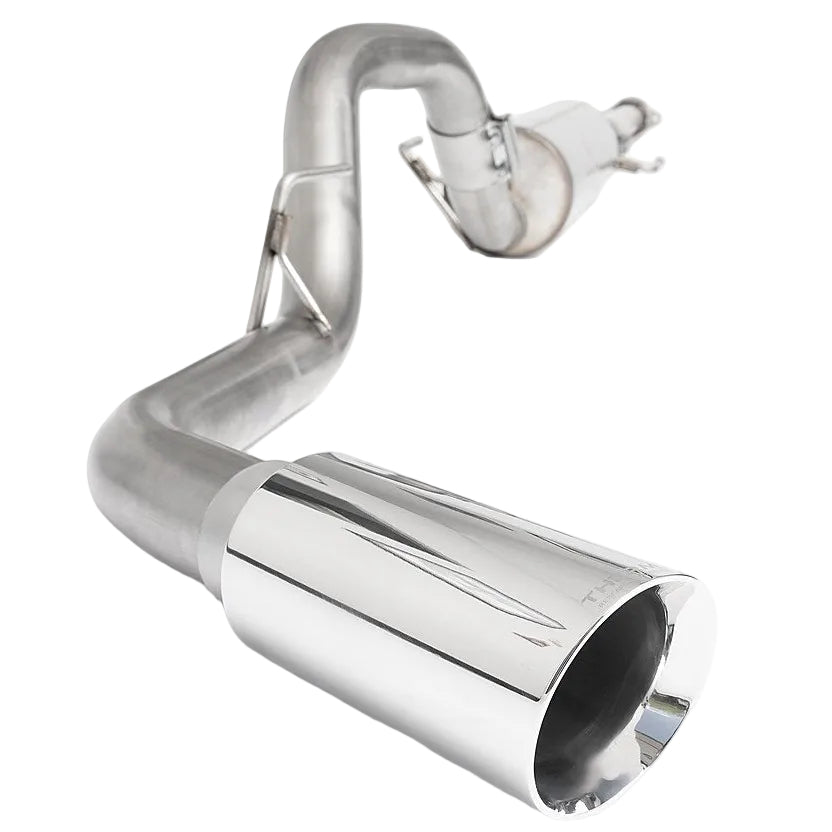

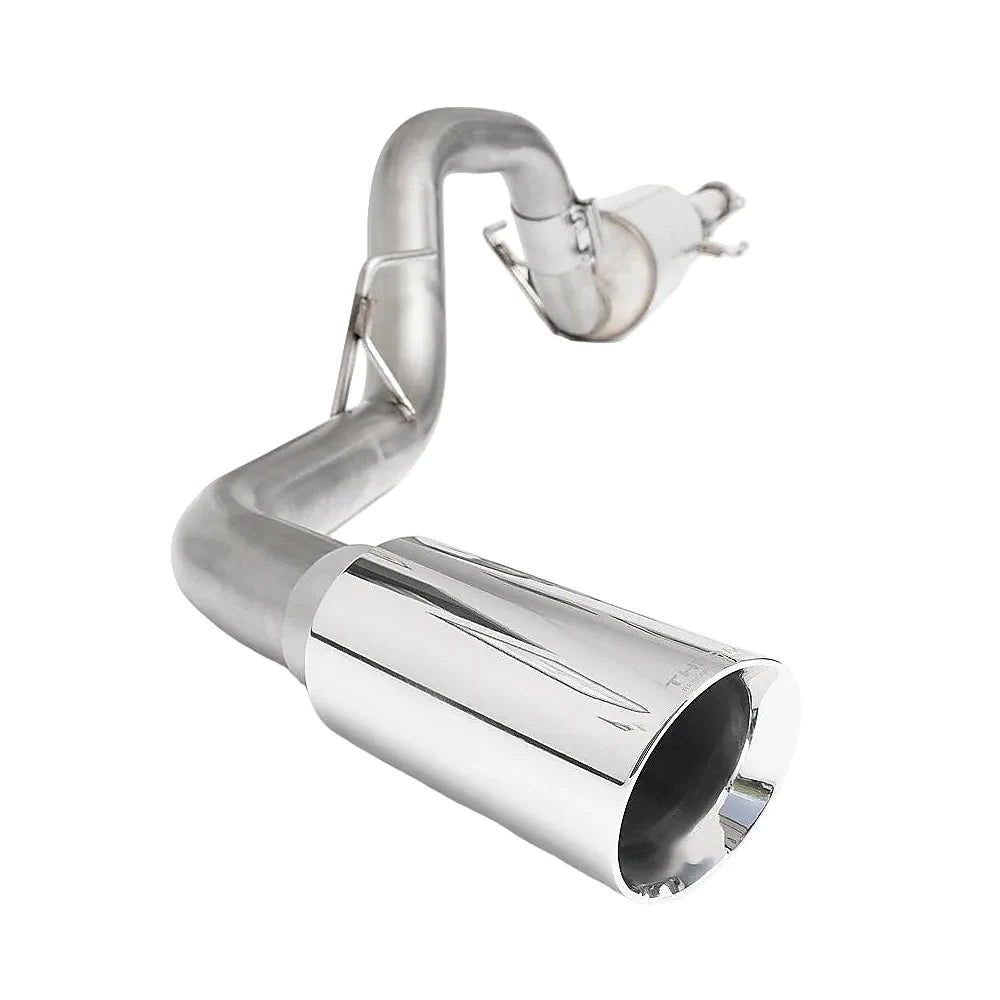

The Thermal R&D B940-C920 catback exhaust transforms the naturally aspirated growl of your F-150's Coyote 5.0L V8 into a deep, aggressive tone the factory system holds back. Built for the Single Cab 6.5ft Bed configuration, this full 3 inch mandrel bent stainless system bolts directly to your factory hanger locations with a single exit polished tip design.
Key Features
- Full 3 inch T304 stainless steel mandrel bent tubing
- 3 chamber Helmholtz muffler design cancels drone at the source
- Direct bolt-on installation at OEM hanger locations, no cutting or welding
- Single Exit, polished angle cut tip finish
- OE emissions equipment stays fully intact
- Backed by a limited lifetime warranty
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2015-2020 | Ford | F-150 | Lariat |
| 2015-2020 | Ford | F-150 | Platinum |
| 2015-2020 | Ford | F-150 | King Ranch |
Specifications
| Detail | Value |
|---|---|
| MPN | B940-C920 |
| UPC | Contact Black Ops Auto Works for UPC verification |
| Tubing Diameter | 3 inch |
| Material | T304 Stainless Steel |
| Exit Configuration | Single Exit |
| Tip Finish | Polished |
| Bed Configuration | Single Cab 6.5ft Bed |
| Engine | 5.0L Coyote V8 |
| Warranty | Limited Lifetime |
| Country of Origin | Made in USA |
What's Included
- One complete B940-C920 catback exhaust system
- Mandrel bent muffler and mid pipe sections
- Polished exit tip
- Double compression band clamps
- Installation hardware
About Thermal R&D
Thermal R&D started as a small muffler shop in Canoga Park, California in 1983 and has grown into a dedicated performance exhaust manufacturer known for drone free sound engineering. Every system is built in the USA from true 304 stainless steel and backed by a lifetime warranty.
Frequently Asked Questions
What is the B940-C920?The B940-C920 is a 3 inch T304 stainless steel catback exhaust system built by Thermal R&D for the Single Cab 6.5ft Bed 2015-2020 F-150 Coyote 5.0L V8, featuring a single exit polished tip and True Helmholtz Technology.
Will this exhaust fit my F-150 if it has a Gasoline Particulate Filter?This system is designed for non-GPF equipped trucks. Check your emissions label under the hood before ordering if you have a later production truck that may include a factory GPF.
Does this exhaust trigger a check engine light?No, the system connects behind the factory catalytic converters and leaves all emissions equipment untouched, so it should not trigger a CEL on a stock truck.
Will I need to modify my truck to install this?No, the B940-C920 bolts directly to the factory hanger locations with no cutting or welding required for a stock configuration truck.
Does this exhaust drone at highway speeds?No, Thermal R&D's True Helmholtz Technology is specifically tuned to cancel the resonant frequencies that cause cabin drone during steady cruising.
What tools do I need for installation?A socket set, penetrating fluid for the factory clamps, and a jack or lift to access the underside of the truck are all you need.
Is professional installation recommended?Most owners install this system themselves in a few hours in a home garage, though any exhaust shop can also install it quickly.
What is the warranty on this exhaust?Thermal R&D backs the B940-C920 with a limited lifetime warranty against manufacturing defects for as long as you own the truck.
Installation Instructions
- Raise the truck safely and remove the factory exhaust system from its rubber hangers.
- Disconnect the factory exhaust at the catalytic converter flange connection.
- Install the new head pipe section to the factory catalytic converter outlet using the supplied clamp.
- Lubricate the factory rubber hangers and lift the new muffler sections into position.
- Connect the mid pipe and tail sections using the indicator marks and double compression clamps provided.
- Install the polished exit tip and align it for even clearance and reveal.
- Tighten all clamps fully once alignment is confirmed.
- Start the truck and check for leaks or rattles before driving.
