SKU: TS-0552-1502 | UPC: 9329677022308

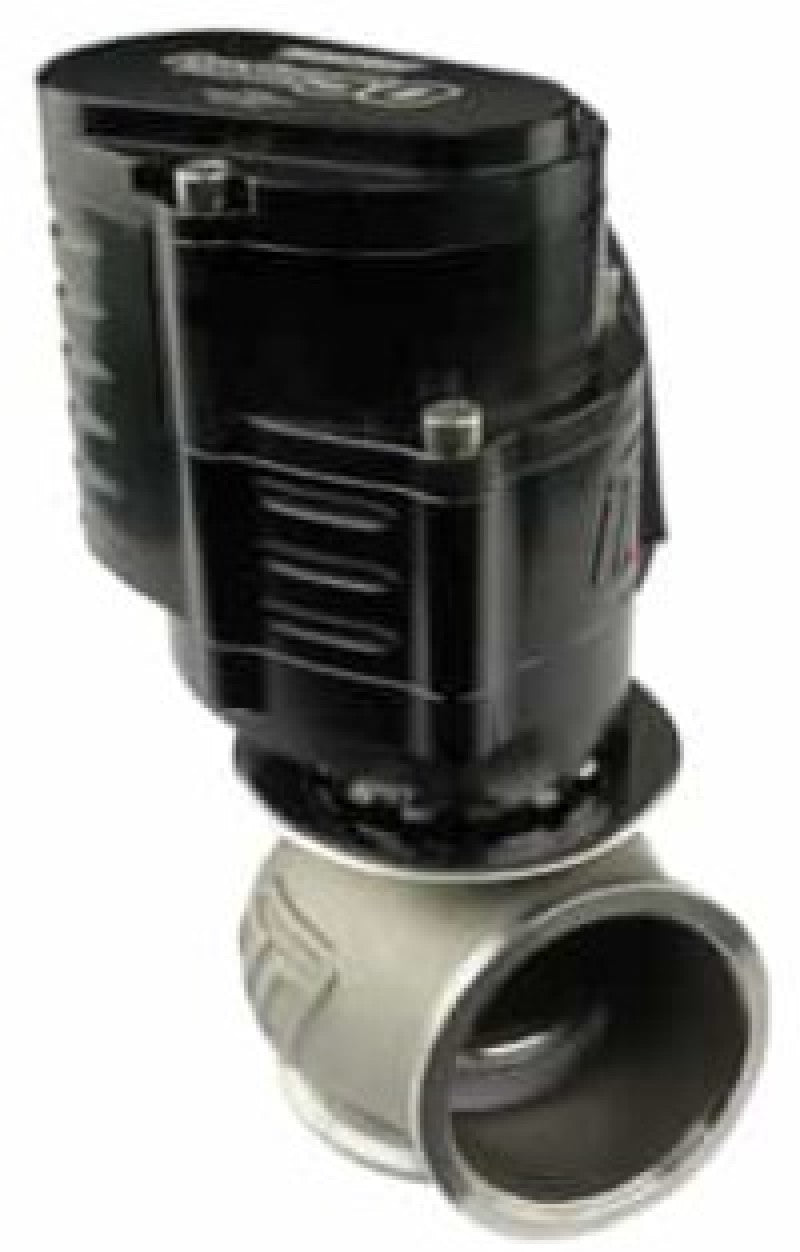

Turbosmart GenV Electronic CompGate 40 Electronic External Wastegate - Universal Turbo Fitment
The Turbosmart GenV Electronic CompGate 40 is an advanced electronic external wastegate designed for high-performance turbocharged applications. It provides accurate boost management across the RPM range for turbo setups on custom manifolds. This wastegate integrates seamlessly with standalone ECUs for reliable operation in racing and street performance builds.
Key Features
- Electronic Actuator: Direct-drive actuator with CAN bus compatibility 0-5V analog input/output and PWM control for fast precise boost response and integrated diagnostics
- 40mm CompGate Valve: 40mm inducer 82.6mm exducer Nitronic 60 seat enables high exhaust flow minimal backpressure for high boost levels
- 347 Stainless Steel Housing: Investment cast turbine housing with V-band inlet/outlet withstands extreme heat and pressure in demanding conditions
- Liquid Cooling Ports: M8x1 water cooling connections protect the actuator during prolonged high-boost runs extending component life
- Modular Mounting: Stainless steel flanges and brackets support top bottom or side mounting with included hardware for flexible installation
Product Notes
- Requires ECU tuning and PWM or analog signal for operation
- Includes three high-temperature springs for base pressures from 0.25 to 1.00 bar
- V-band clamps fittings and all hardware supplied for complete setup
Installation Notes
- Professional installation recommended.
- Integrate actuator signal with ECU software for boost mapping
- Secure with provided V-band clamps and modular flanges on exhaust manifold
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | All |
Why Choose Turbosmart?
- Motorsport-proven technology used in World Rally Championship and drag racing
- Precision CNC-machined components built to exacting standards
- Extensive testing ensures reliability under extreme boost and heat
Frequently Asked Questions
-
Q: Will this wastegate fit my turbo setup?
A: Yes universal design mounts on any V-band compatible manifold with modular flanges for top bottom or side positioning -
Q: What materials are used in construction?
A: 347 stainless steel housing Nitronic 60 valve seat and high-temp springs for corrosion resistance and durability -
Q: What is the warranty coverage?
A: Turbosmart offers a limited warranty against manufacturing defects when installed and used as directed
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original protective box dimensions 10 x 8 x 6 inches
- Weight: 5.07 lbs
