SKU: TS-1-6466B-VB107E | UPC: 9329677030259

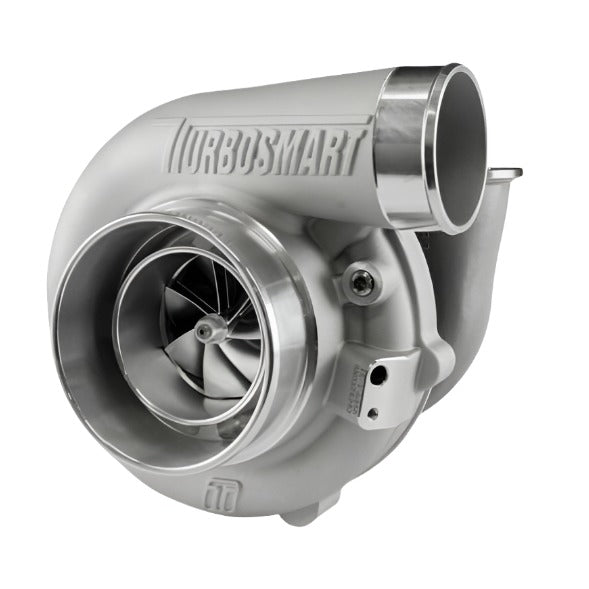

Turbosmart Oil Cooled 6466 V-Band Inlet/Outlet A/R 1.07AR External Wastegate TS-1 Turbocharger
This Turbosmart TS-1 turbocharger features a 64mm billet compressor and 66mm Inconel turbine for quick spool and massive airflow up to 1000HP. Designed for universal fitment on high performance 4-cylinder to 6-cylinder engines from 2.0L to 5.0L displacement including popular builds like Toyota 2JZ, Nissan RB26 and Subaru EJ series. Oil cooled journal bearing center housing ensures reliable operation under extreme conditions with V-band clamps for fast installation and maintenance.
Key Features
- 64/86mm Billet Compressor Wheel: Extended tip design provides high efficiency and supports 550-1000HP with minimal surge.
- 66mm Inconel Turbine Wheel: 66/84mm exducer/inducer withstands 1600°F+ exhaust temps for durability in racing applications.
- A/R 1.07 V-Band Turbine Housing: Optimized for mid-range torque and top-end power with external wastegate port for precise boost control.
- V-Band Inlet and Outlet: Quick release clamps simplify assembly disassembly and allow custom piping configurations.
- Oil Cooled Journal Bearing CHRA: Proven low friction design delivers fast spool and long service life with standard engine oil supply.
Product Notes
- Designed for motorsport use requires custom exhaust manifold and piping.
- Pair with Turbosmart external wastegate like GenV 45mm for full boost management.
- Special order item expect 3-7 business day lead time from manufacturer.
Installation Notes
- Professional installation recommended.
- Requires oil feed line M8x1.25 and drain M14x1.5 consult engine specific kits.
- V-band clamps included compatible with standard 4-inch turbo flanges.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Toyota | Supra | 2JZ-GTE Builds |
| Universal | Nissan | Skyline | RB26DETT Builds |
| Universal | Subaru | WRX/STI | EJ20/EJ25 Builds |
| Universal | Various | 4/6 Cyl | 2.0-5.0L Performance |
Why Choose Turbosmart?
- Motorsport heritage with proven reliability in World Time Attack and drag racing.
- Investment cast housings and billet wheels machined to aerospace tolerances.
- Engineered in Australia for extreme boost levels and consistent performance.
Frequently Asked Questions
-
Q: Does this turbo fit my 2JZ-GTE engine?
A: Yes universal design bolts to custom T3 or T4 divided manifolds with V-band adapters for 2JZ swaps and high HP builds. -
Q: What materials are used in construction?
A: 2618 billet aluminum compressor high nickel Inconel turbine and G2500 cast iron housings for heat resistance and strength. -
Q: What is the warranty coverage?
A: 24 month unlimited mileage warranty when installed by certified shop with proper oiling and maintenance.
Shipping & Handling
- Method: UPS Ground or Freight for heavy items
- Availability: In stock - ships same or next business day
- Packaging: Foam protected box 16 x 16 x 16 inches
- Weight: 17.2 lbs product 22 lbs shipped
