Turbosmart PSG40CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate40 - Black Turbosmart TURTS-0563-1252
Click to zoom in

Turbosmart PSG40CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate40 - Black

Turbosmart
TURTS-0563-1252
9329677032734
Wastegates
1 Units In Stock - Ships Next Business Day
$ 931.99 $ 838.79
$ 838.79

SKU: TS-0563-1252 | UPC: 9329677032734

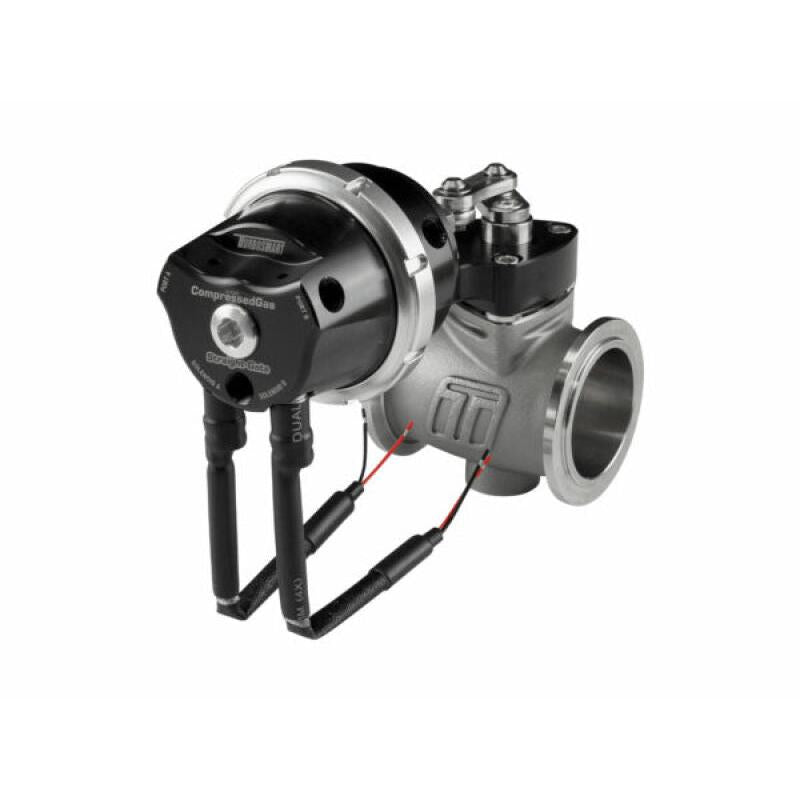

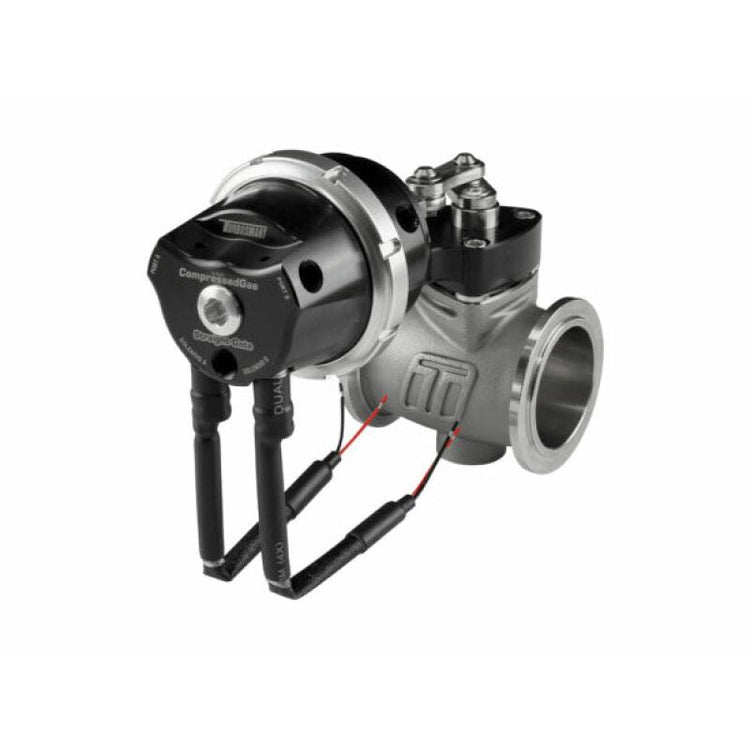

Turbosmart PSG40CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate40 - Black - Universal Fit

The Turbosmart PSG40CG 7PSI actuator delivers compressed gas operation to StraightGate40 external wastegates for precise boost management in high-horsepower turbocharged vehicles. Aftermarket turbo setups achieve consistent actuation using CO2 or nitrogen sources that eliminate spring wear for reliable performance. This black solenoid bolts directly onto Turbosmart StraightGate40 TS-0504-2001 units ideal for drag racing circuits or street applications.

Key Features

  • Compressed Gas Operation: 7PSI actuation from CO2 paintball bottles or dry nitrogen tanks provides fast response in extreme boost conditions
  • PWM Solenoid Valve: Normally closed 3-port design works with ECU boost controllers for duty cycle control and dynamic boost adjustment
  • Billet Aluminum Build: CNC machined 6061 T6 body with black anodized coating resists heat corrosion and ensures durability
  • 1/8 NPT Ports: Standard fittings allow easy connection to gas reservoirs and controllers
  • Direct Bolt-On Fit: Matches StraightGate40 TS-0504-2001 mounting points with included hardware for simple installation

Product Notes

  • Requires dedicated compressed gas supply such as 12g CO2 cartridges or bottled dry nitrogen
  • Solenoid operates on 12-24V power with PWM signals up to 8 amps
  • Special order item with 2-5 business day lead time

Installation Notes

  • Professional installation recommended.
  • Secure gas lines with heat shielding away from exhaust components
  • Bolts to Turbosmart StraightGate40 wastegate TS-0504-2001 hardware included

This Part Fits

Year Make Model Submodel
Universal All All Turbosmart StraightGate40 Wastegate Equipped

Why Choose Turbosmart?

  • Motorsport heritage from World Rally Championship winning teams
  • Engineered in Australia for high-boost endurance applications
  • Backed by dyno testing and real-world competition validation

Frequently Asked Questions

  • Q: What gas sources work with PSG40CG actuator?
    A: CO2 from 12g cartridges paintball tanks or soda stream bottles dry nitrogen preferred avoid wet air or oxygen
  • Q: What material and finish on the black PSG40CG?
    A: 6061 T6 billet aluminum hard anodized black for scratch heat and corrosion resistance
  • Q: Does Turbosmart provide warranty on this solenoid?
    A: 24 month repair or replace warranty covers defects under normal motorsport use register product online

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: Special order ships in 2-5 business days
  • Packaging: Foam protected cardboard box 7 x 5 x 4 inches
  • Weight: 0.63 lbs (10 oz)
