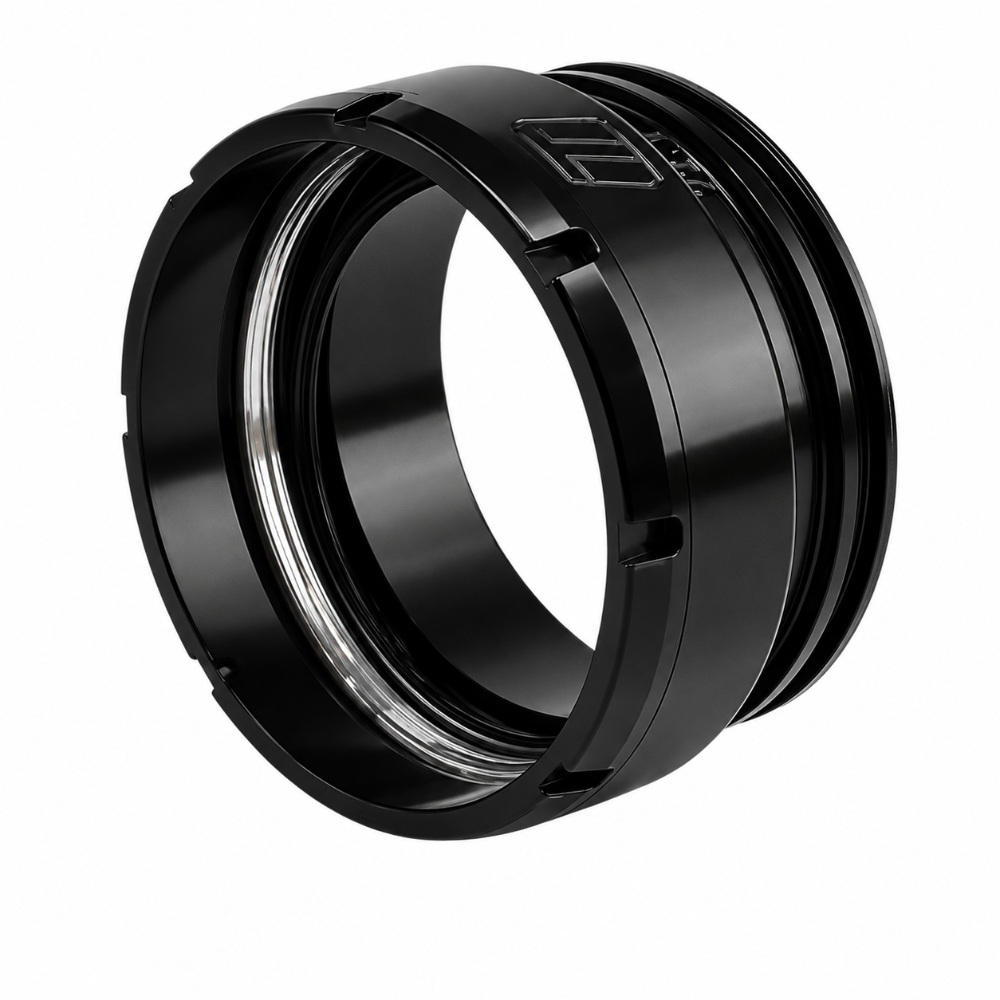

Turbosmart TS-199-3030 Turbo Adapter 2.5in Straight Plazmaclamp is Turbosmart manufacturer part number TS-199-3030, selected by the exact dimensions, interfaces, and manufacturer part number. Turbosmart’s LockSleeve is a weld-free, boost-ready compressor-outlet ferrule designed to adapt Turbosmart turbochargers to Vibrant HD clamps or Plazmaman clamps, delivering professional results with no TIG torch required. Available to suit both B Frame and C Frame Turbosmart turbocharger compressor covers, the LockSleeve eliminates the need for TIG-welding by creating a mechanically interlocked o-ring seal between the compressor cover and the outlet flange using the precision-machined screw together ferrule. As the two halves of the collar are torqued together, the LockSleeve engages an internal O-ring that forms a high pressure seal between the compressor cover and the sleeve. The O-ring provides airtight integrity, while the outer sleeve delivers mechanical retention — combining the rel
Key Features
- LockSleeve Technology: How the Ferrule System Works The Turbosmart LockSleeve system replaces traditional welded or clamped silicone couplers with a precision-machined billet aluminum ferrule assembly.
- Using the Plazmaclamp (Plazmaman clamp) connection type and rated to 150 PSI, this billet aluminum ferrule assembly delivers a weld-free, boost-rated seal through a precision-machined screw-together collar system.
- The result is a connection that resists blow-off under sustained boost pressure up to 150 PSI without any welding, heat, or permanent modification to the compressor cover.
- All LockSleeve models share the same core ferrule technology and 150 PSI pressure rating.
- Because the ferrule threads together under mechanical load rather than relying on clamp friction alone, the LockSleeve design maintains sealing integrity even under repeated thermal cycling and high-vibration racing environments.
- The billet aluminum construction keeps weight low while providing the rigidity needed to hold a consistent O-ring preload across the full pressure range.
Fitment
This part is selected by exact dimensions, interface, and manufacturer part number. No year, make, and model fitment is claimed.
Specifications
| Brand | Turbosmart |
|---|---|
| Manufacturer Part Number | TS-199-3030 |
| Product Type | Flanges |
| Application Type | Universal |
| Condition | New |
What's Included
One new Turbosmart flanges package identified by manufacturer part number TS-199-3030, plus only the hardware and accessories expressly shown or stated for this exact part number
About Turbosmart
Turbosmart develops boost-control, blow-off-valve, intercooler, intake, exhaust, turbocharger, gasket, and installation components for performance applications.
Related Turbosmart Products
- Shop all Turbosmart products
- Turbosmart TS-199-3020 Turbo Adapter 2.5in 90 Elbow Plazmaclamp
- Turbosmart TS-199-3029 Turbo Adapter 2.5in Straight Vibrant
- Turbosmart TURTS-199-3019 Turbo Adapter 2.5in 90 Elbow Vibrant
Frequently Asked Questions
How do I confirm Turbosmart TS-199-3030 is correct for my application?
Match the exact manufacturer part number, year, make, model, factory configuration, dimensions, connection points, and every current Turbosmart note.
Are similar Turbosmart parts interchangeable with TS-199-3030?
No. Flange style, pipe diameter, valve configuration, mounting points, calibration, finish, and included hardware can differ between part numbers.
What should be checked after installing Turbosmart TS-199-3030?
Inspect fasteners, clamps, hoses, wiring, clearances, leaks, boost or exhaust behavior, and any required engine-management calibration after installation.
Installation
Follow the current Turbosmart instructions for manufacturer part number TS-199-3030. Confirm all torque values, gaskets, clamps, hoses, wiring, heat clearances, leak checks, and any required calibration. Professional installation is recommended for turbocharger, boost-control, fuel, intake, and exhaust components.
