TURTS-2-6870B-VB107E-Turbosmart Water Cooled 6870 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger-Turbochargers-Turbosmart
Click to zoom in

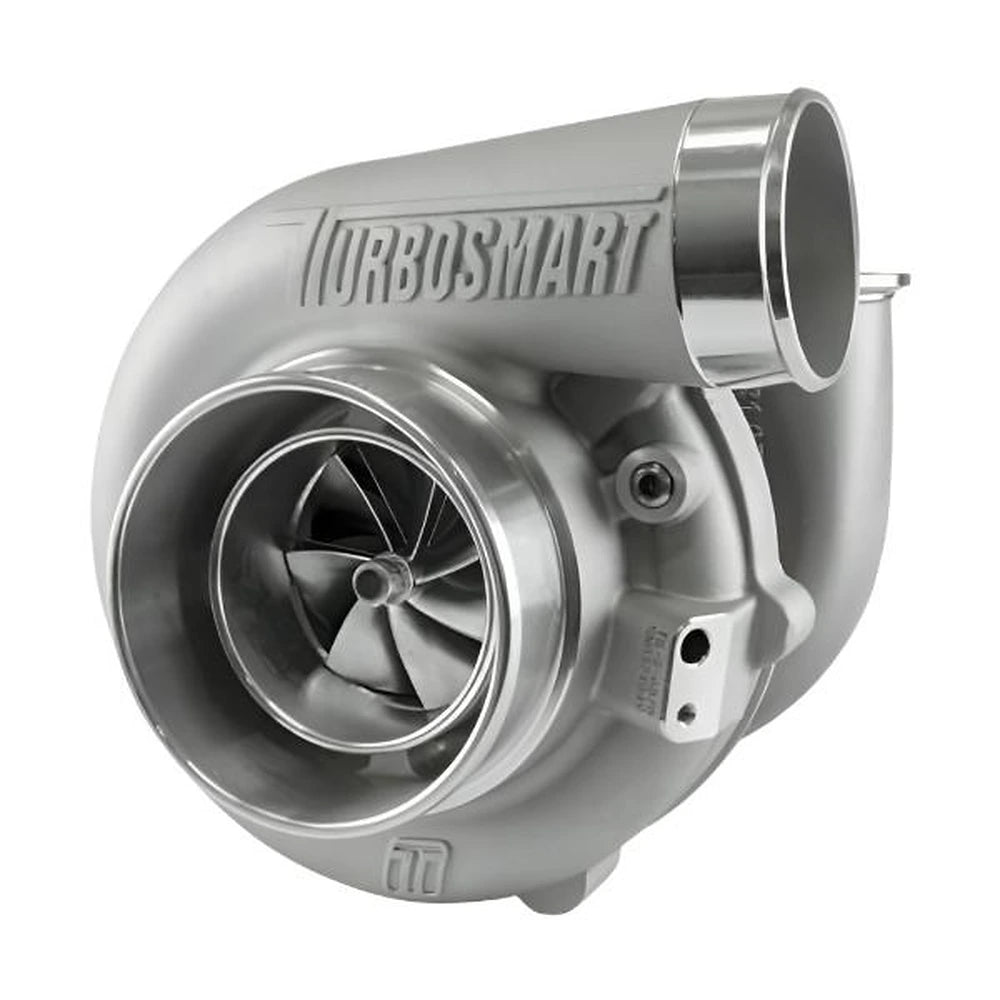

Turbosmart Water Cooled 6870 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-6870B-VB107E
9329677030716
Turbochargers
Out of stock
$ 2,959.99 $ 2,663.99

SKU: TS-2-6870B-VB107E | UPC: 9329677030716

Turbosmart Water Cooled 6870 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger

This Turbosmart TS-2 6870 turbocharger delivers massive airflow for engines from 2.0L to 6.0L in drag racing time attack and street builds. Featuring a water-cooled dual ball bearing CHRA and V-band housings it spools fast and handles 500 to 1050 horsepower. Commonly used on Toyota 2JZ-GTE Nissan RB26DETT and GM LS engines with adapters.

Key Features

  • Dual Ceramic Ball Bearings: Reduces friction for quicker spool times and withstands high RPM for reliable power delivery
  • 360 Degree Water Cooled CHRA: Keeps oil temps low to prevent coking and extends turbo life in high heat conditions
  • V-Band Turbine Housing 1.07 A/R: Simplifies installation with clamp design while providing strong mid-range response and top-end flow
  • Externally Wastegated: Allows full turbine efficiency with precise boost control using a separate wastegate actuator
  • Billet Compressor Wheel 68mm/91.3mm: 9+9 blade extended tip design moves 110+ lbs/min for dyno-proven high horsepower gains

Product Notes

  • Requires separate Turbosmart external wastegate for operation
  • Pre-balanced assembly with Inconel turbine wheel for durability
  • Oil feed M14x1.5 and water ports M14x1.5 included

Installation Notes

  • Professional installation recommended.
  • Custom manifold and downpipe fabrication needed for most applications
  • V-band clamps and hardware supplied for turbine housing

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-1994 Nissan Skyline GT-R R32 RB26DETT
1995-1998 Nissan Skyline GT-R R33 RB26DETT
1999-2002 Nissan Skyline GT-R R34 RB26DETT
1997-2013 Chevrolet Corvette LS1/LS6/LS2/LS3
Universal - - 2.0L-6.0L Performance Engines

Why Choose Turbosmart?

  • Motorsport proven in World Time Attack and Australian drag racing
  • Investment cast housings and billet wheels built for extreme duty
  • Hand-assembled in Australia with strict quality controls

Frequently Asked Questions

  • Q: What engines does the TS-2 6870 fit best
    A: Ideal for inline-6 like Toyota 2JZ-GTE and Nissan RB26DETT plus V8 LS engines in 500-1050hp builds with proper tuning and manifolds
  • Q: What materials are used in construction
    A: 2618 alloy billet compressor Inconel turbine wheel and high nickel housings resist heat and corrosion
  • Q: What warranty coverage applies
    A: 2-year unlimited km warranty against manufacturing defects for original purchaser

Shipping & Handling

  • Method: Ground shipping via UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original Turbosmart box with protective foam inserts
  • Weight: 19.6 lbs

Request For Information

Have questions about Turbosmart Water Cooled 6870 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger? Fill out the form below and we'll get back to you by the next business day.
