SKU: TS-0505-3002 | UPC: 9329677010350

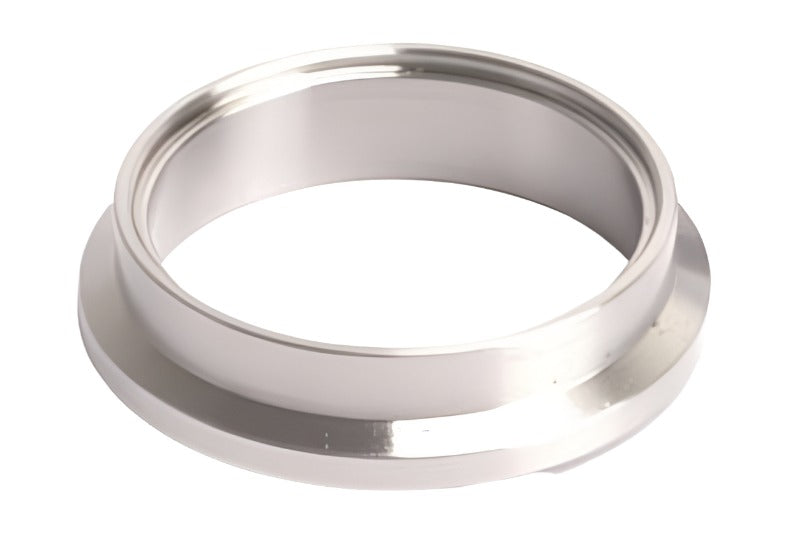

Turbosmart WG40 Outlet Weld Flange TS-0505-3002
This precision weld flange connects the Turbosmart WG40 wastegate outlet to custom exhaust dump pipes or manifolds using a secure V-band clamp. Designed for universal fit on performance turbo setups equipped with WG40 GenV wastegates it ensures leak-free exhaust flow and reliable boost control. Fabricators trust it for clean professional results in high-performance builds.
Key Features
- 304 Stainless Steel Construction: Resists corrosion heat and fatigue for long-term durability in extreme exhaust environments
- CNC Precision Machined: Guarantees perfect alignment and seal with WG40 V-band clamps preventing boost leaks
- Weld-On Design: Enables seamless integration into custom turbo manifolds or downpipes for tailored exhaust routing
- WG40 Specific Sizing: Matches the 50.4mm V-band outlet diameter of Turbosmart WG40 wastegates for direct compatibility
- Australian Manufacturing: Built with strict quality control and testing for consistent performance
Product Notes
- Pair with Turbosmart V-band clamp TS-0504-2001 and dump pipe for complete assembly
- Inspect for weld imperfections post-installation to maintain integrity
- Packaged in protective foam sleeve to prevent shipping damage
Installation Notes
- Professional installation recommended.
- TIG weld only using 304 filler rod at 120-150 amps for optimal joint strength
- Compatible with standard 2-inch schedule 40 exhaust tubing or larger
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Turbo Vehicles | With Turbosmart WG40 Wastegate |
Why Choose Turbosmart?
- Performance proven since 1997 with hand-crafted attention to detail
- Factory direct from Sydney Australia using innovative design and rigorous testing
- Extraordinary service and after-sales support for every product
Frequently Asked Questions
-
Q: Does this flange fit all Turbosmart WG40 wastegates?
A: Yes it matches the outlet V-band on WG40 GenV models for precise clamp seating and exhaust flow -
Q: What material is the flange made from?
A: High-grade 304 stainless steel provides heat resistance up to 1600°F and corrosion protection -
Q: What is the warranty on this part?
A: Turbosmart offers a limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 6 x 5 x 2 inches
- Weight: 0.22 lbs
