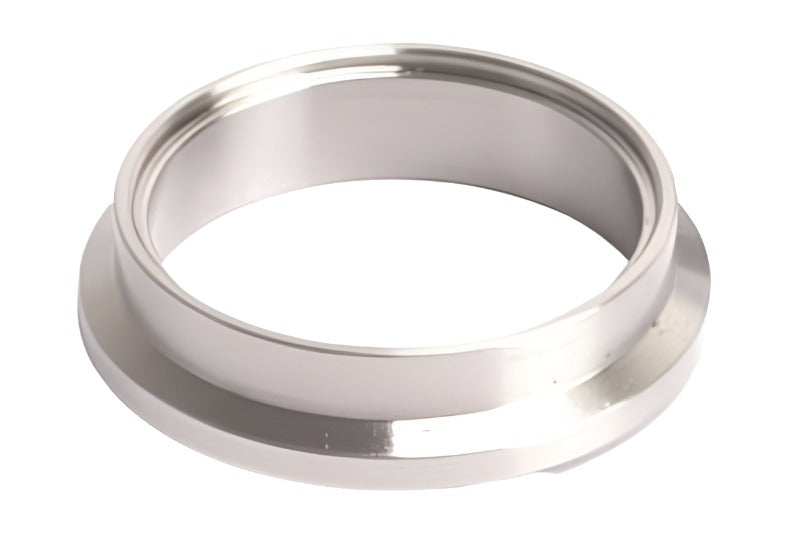

Turbosmart WG45 Outlet Weld Flange is Turbosmart manufacturer part number TS-0504-3002, selected by the exact dimensions, interfaces, and manufacturer part number. Turbosmart’s WG45 Outlet Weld Flange is designed to suit Turbosmart HyperGate45 (45mm) External Wastegates. It is a simple, cost-effective solution for mounting Turbosmart external wastegates and makes installation more effortless than ever. The weld flange has been precision machined from high-quality steel and will provide perfect alignment with Turbosmart’s HyperGate45 external wastegate. With this piece of equipment, you can ensure that your Turbosmart’s HyperGate45 (45mm) External Wastegate is securely mounted and provides optimal performance to maximize the efficiency of your engine setup. With Turbosmart products, you can rest assured that the Turbosmart name backs you, a brand trusted in performance and reliability. Get Turbosmart’s WG45 Outlet Weld Flange for your Turbosmart Hyper
Key Features
- Smooth Weld Surface: Prepped for clean, strong TIG welds to stainless or mild steel tubing without distortion.
- V-Band Clamp Compatible: Works with Turbosmart 45mm V-band clamps for quick disassembly and maintenance.
- Lightweight Design: Weighs just 0.31 lbs to minimize added mass in turbo systems.
- SKU: TS-0504-3002 | UPC: 9329677008616 Turbosmart WG45 Outlet Weld Flange TS-0504-3002 The Turbosmart WG45 Outlet Weld Flange is a precision-engineered 304 stainless steel component designed for direct attachment to the WG45 wastegate outlet housing.
- It welds seamlessly to custom exhaust manifolds or downpipes, enabling secure V-band connections for reliable exhaust gas flow and boost control.
- Built for high-performance turbocharged applications, it delivers consistent performance under extreme heat and pressure.
Fitment
This part is selected by exact dimensions, interface, and manufacturer part number. No year, make, and model fitment is claimed.
Specifications
| Brand | Turbosmart |
|---|---|
| Manufacturer Part Number | TS-0504-3002 |
| Product Type | Flanges |
| Application Type | Universal |
| Condition | New |
What's Included
One new Turbosmart flanges package identified by manufacturer part number TS-0504-3002, plus only the hardware and accessories expressly shown or stated for this exact part number
About Turbosmart
Turbosmart develops boost-control, blow-off-valve, intercooler, intake, exhaust, turbocharger, gasket, and installation components for performance applications.
Related Turbosmart Products
- Shop all Turbosmart products
- Turbosmart WG45 Alloy Outlet Weld Flange
- Turbosmart WG40 Outlet Weld Flange
- Turbosmart WG45 Alloy Inlet Weld Flange
Frequently Asked Questions
How do I confirm Turbosmart TS-0504-3002 is correct for my application?
Match the exact manufacturer part number, year, make, model, factory configuration, dimensions, connection points, and every current Turbosmart note.
Are similar Turbosmart parts interchangeable with TS-0504-3002?
No. Flange style, pipe diameter, valve configuration, mounting points, calibration, finish, and included hardware can differ between part numbers.
What should be checked after installing Turbosmart TS-0504-3002?
Inspect fasteners, clamps, hoses, wiring, clearances, leaks, boost or exhaust behavior, and any required engine-management calibration after installation.
Installation
Follow the current Turbosmart instructions for manufacturer part number TS-0504-3002. Confirm all torque values, gaskets, clamps, hoses, wiring, heat clearances, leak checks, and any required calibration. Professional installation is recommended for turbocharger, boost-control, fuel, intake, and exhaust components.
