SKU: TS-0553-1202 | UPC: 9329677018820

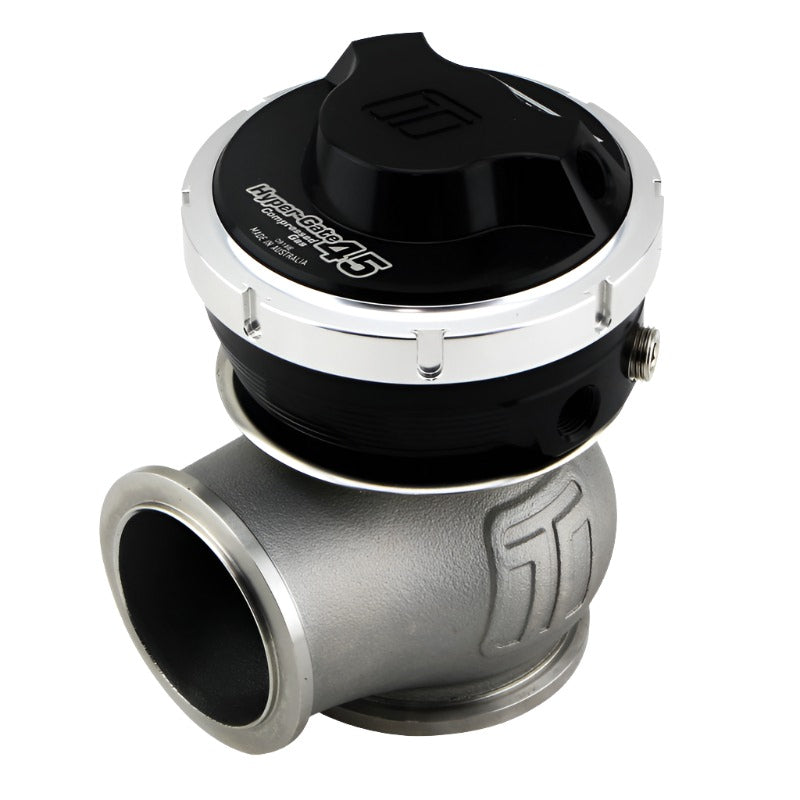

Turbosmart WG45 Gen V Hyper-Gate 45 5psi Black Universal External Wastegate
The Turbosmart WG45 Gen V Hyper-Gate 45 5psi Black serves as a high-flow external wastegate for turbocharged engines requiring accurate boost regulation. This universal design mounts to custom manifolds and downpipes with standard V-band flanges fitting most performance vehicles from 2.5L to 6.0L engines. Preset to 5psi it maintains stable boost levels preventing creep during aggressive driving.
Key Features
- 45mm High-Flow Valve: Handles up to 800hp turbo setups with minimal restriction for quick spool and response
- Forged 347 Stainless Steel Housing: Resists heat and corrosion in extreme conditions lasting through track abuse
- Liquid-Filled Nitronic 60 Stem: Provides smooth operation and consistent boost across RPM range eliminating fluctuations
- Black Anodized Finish: Corrosion-resistant coating pairs with blacked-out engine bays for clean aesthetics
- Dual Water Cooling Ports: Three 1/8 NPT ports allow cooling lines and sensors for sustained performance at high boost
Product Notes
- Includes V-band clamps inlet gasket and outlet gasket for immediate install
- Replaceable springs available from 3psi to 26psi to match engine requirements
- Ships in protective packaging to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Requires 1.85 inch V-band flanges on exhaust manifold and downpipe
- Clockable actuator housing adjusts 360 degrees for custom routing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All Makes | Turbocharged Vehicles | 2.5L-6.0L Engines |
Why Choose Turbosmart?
- Designed and manufactured in Sydney Australia with hand-crafted attention to detail
- Innovative engineering strict quality control and rigorous testing ensure reliability
- Trusted by performance enthusiasts since 1997 for consistent results
Frequently Asked Questions
-
Q: What boost pressures does it support?
A: Ships preset to 5psi includes 14psi spring optional springs cover 3 to 26psi for tuning flexibility -
Q: What materials are used in construction?
A: Forged 347 stainless steel housing Nitronic 60 valve stem and guide Swift springs all built for endurance -
Q: What warranty coverage applies?
A: Turbosmart provides a structural warranty against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 10.2 x 8.5 x 6.3 inches
- Weight: 4.95 lbs
