SKU: TS-0506-1101 | UPC: 9329677016871

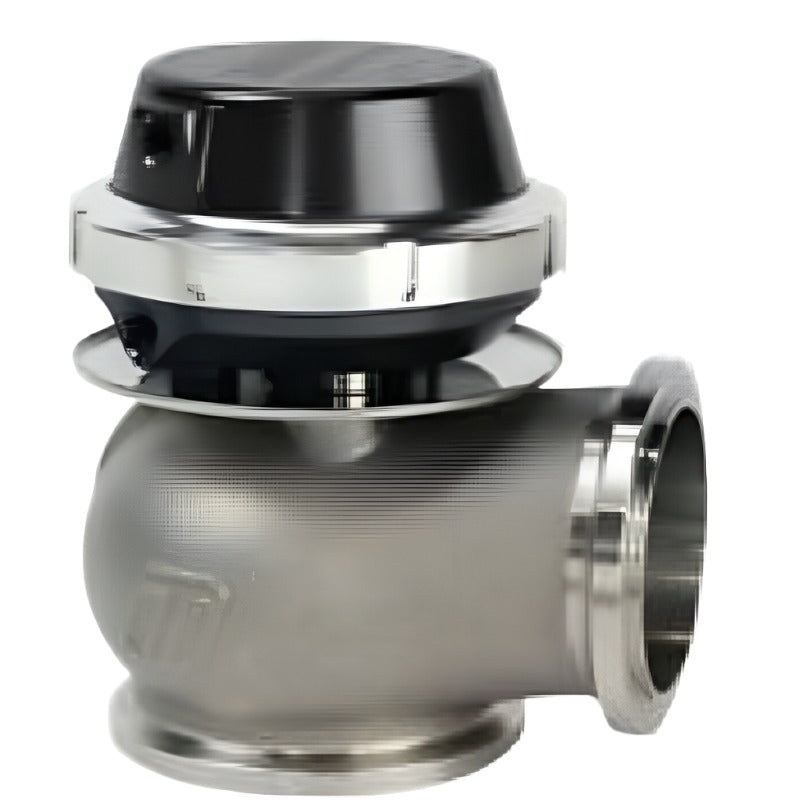

Turbosmart WG45 Hyper-Gate 45 10psi Black w/ Aluminum Inlet Flange and Extra Springs - Universal Fit
The Turbosmart WG45 Hyper-Gate 45 delivers precise boost control for high-performance turbocharged engines. This external wastegate fits universal V-band turbo manifolds on custom setups for cars trucks and race vehicles. Its 45mm valve handles massive exhaust flow while the included springs allow boost tuning from 10psi to 20psi plus.
Key Features
- 45mm Nitronic 60 Valve: Delivers maximum exhaust flow rates over 2000hp applications with durable seat for long-term reliability
- Dual Port Actuator: Provides rapid response and stability across full boost range with extended arm design
- Aluminum Inlet Flange: V-band compatible pipe simplifies installation and ensures leak-free connection to turbo housing
- Extra Springs Included: 10psi base plus medium 14psi and heavy 20psi springs for easy boost pressure adjustments
- 347 Stainless Steel Body: Black finish resists corrosion and heat up to 1000C in extreme conditions
Product Notes
- Base 10psi spring pre-installed swap extras for higher boost without actuator removal
- Modular design allows multiple port configurations for custom exhaust routing
- Complete kit includes V-band clamps flanges gaskets and fittings
Installation Notes
- Professional installation recommended.
- Weld dump tube to V-band outlet flange after mounting
- Compatible with standard V-band turbo manifolds 3 inch inlet outlet
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Turbocharged Vehicles | V-Band Manifold |
| 1986-1992 | Toyota | Supra | Turbo |
| 1993-1998 | Toyota | Supra | Twin Turbo |
| 1989-1998 | Nissan | 300ZX | Twin Turbo |
| 2003-2006 | Mitsubishi | Evolution | VIII IX MR |
Why Choose Turbosmart?
- Proven in World Rally Championship and drag racing
- Investment cast construction withstands high heat cycles
- Factory direct springs rated for unlimited boost swaps
Frequently Asked Questions
-
Q: Will this wastegate fit my turbo setup?
A: Yes universal design bolts to any 3 inch V-band manifold inlet outlet with aluminum pipe adapter included -
Q: What materials are used in construction?
A: 347 stainless steel housing Nitronic 60 valve stem seat 6061 aluminum flange all hardware stainless -
Q: What warranty coverage applies?
A: Lifetime warranty on springs 2 years on valve body against defects when installed maintained per instructions
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 14 x 10 x 8 inches
- Weight: 6.2 lbs
