SKU: TS-0506-1041

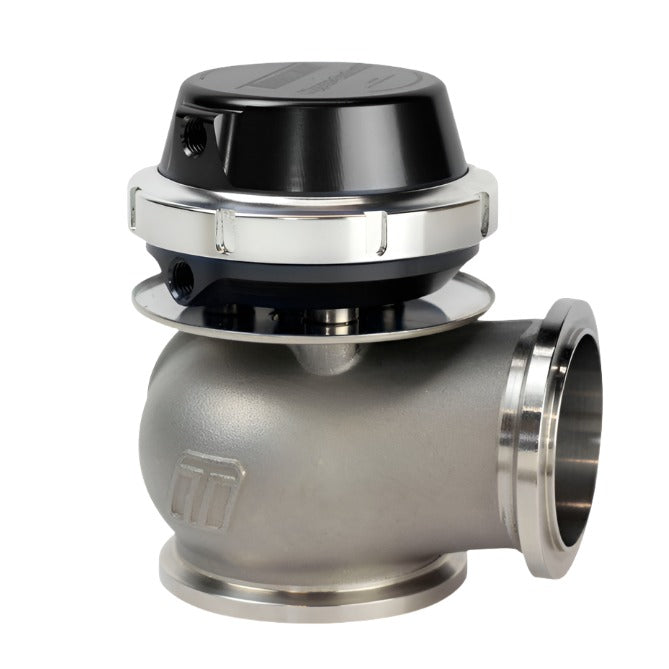

Turbosmart WG45 2011 Hyper-Gate 45 14psi Black
The Turbosmart Hyper-Gate 45 14psi Black is an external wastegate with a 45mm valve designed for turbocharged engines up to 1000HP. It fits a wide range of vehicles including Subaru WRX STI, Mitsubishi Lancer Evolution, Nissan Silvia, and 350Z models. This wastegate delivers precise boost control, fast response, and reliable operation under extreme conditions.
Key Features
- Water-Cooled Design: Dual ports maintain consistent valve temperatures for extended durability and performance in high-heat environments
- 45mm Nitronic 60 Valve: Hardened valve seat resists wear and fatigue for thousands of boost cycles without failure
- V-Band Housing: 347 stainless steel investment cast body with 2.25in inlet and 2.5in outlet flanges for leak-free, secure connections
- Silicone Nomex Diaphragm: High-temp reinforced diaphragm ensures quick response and long-term reliability
- 14psi Preset Spring: Factory-set spring with swappable options from 3-26psi for easy boost adjustment
Product Notes
- Requires V-band clamps and flanges for installation, sold separately
- Inspect diaphragm and springs regularly for optimal performance
- Secure packaging protects against shipping damage
Installation Notes
- Professional installation recommended.
- Mount in upright position with water ports at top for cooling efficiency
- Compatible with Turbosmart V-band clamp kits and dump pipes
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2021 | Subaru | Impreza WRX | STI |
| 2004-2021 | Subaru | WRX | STI |
| 2008-2016 | Mitsubishi | Lancer Evolution | Evo X |
| 1989-2002 | Nissan | Silvia | S13/S14/S15 |
| 2003-2009 | Nissan | 350Z | All |
| 2009-2020 | Nissan | GT-R | R35 |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia with strict quality control since 1997
- Innovative design rigorously tested for reliability in performance applications
- Proven formula of precision engineering and after-sales support
Frequently Asked Questions
-
Q: Does this fit my Subaru STI?
A: Yes, compatible with 2004-2021 Impreza WRX STI models using standard V-band turbo manifolds -
Q: What material is the housing?
A: 347 stainless steel investment cast for corrosion resistance and strength -
Q: What warranty is included?
A: Lifetime warranty against manufacturing defects with proper installation
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Sturdy box 12in x 10in x 8in
- Weight: 5.07 lbs
