SKU: TS-0554-1002 | UPC: 9329677018868

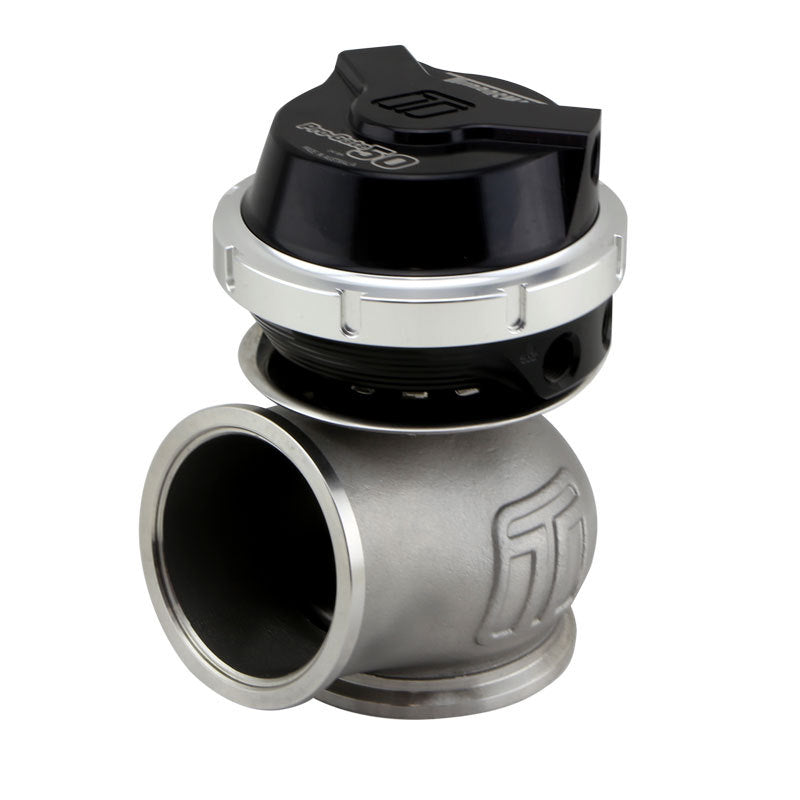

Turbosmart WG50 Gen V Pro-Gate 50 7psi Black External Wastegate
The Turbosmart WG50 Gen V Pro-Gate 50 7psi Black is a 50mm external wastegate for turbocharged performance vehicles. It fits universal applications requiring V-band flanges on turbo housings and dump pipes. This wastegate ensures responsive boost control at 7psi with options for higher pressures via spring kits.
Key Features
- 50mm Valve Diameter: Supports high exhaust flow rates for engines up to 800hp while maintaining tight boost thresholds
- Gen V Actuator Design: Features reinforced housing and faster spool-up for improved throttle response
- Dual Water Cooling Ports: Circulates coolant to keep diaphragm stable during prolonged high-heat operation
- Nitronic 60 Valve and Seat: Provides superior wear resistance and seals against exhaust gas leakage
- 347 Stainless Steel Body: Resists corrosion with black anodized aluminum top cap for durability and style
Product Notes
- Includes 7psi spring assembly, V-band clamps, gaskets, and fitting kit
- Spring upgrade kits available separately for 14psi to 26psi boost levels
- Net weight 4.41 lbs (2kg), gross shipping weight 5.73 lbs (2.6kg)
Installation Notes
- Professional installation recommended.
- Weld V-band flanges (2.5in inlet, 3in outlet standard) to exhaust manifold and dump pipe
- Compatible with all Turbosmart V-band turbo housings and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| - | - | Universal Fitment | Turbocharged Performance Vehicles |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability accepted worldwide in performance and motorsport
- Innovative engineering backed by rigorous factory testing
Frequently Asked Questions
-
Q: Will this wastegate fit my turbo setup?
A: Yes, universal V-band design fits any turbo with matching flanges or adapters on housing and dump pipe -
Q: What materials are used in construction?
A: 347 grade stainless steel housing, Nitronic 60 valve seat and stem, 17-7PH springs, anodized aluminum cap -
Q: What warranty coverage is provided?
A: Limited lifetime warranty against manufacturing defects when installed and used as directed
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box, dimensions 12in x 10in x 10in
- Weight: 5.73 lbs
