SKU: 10608 | UPC: 690092150228

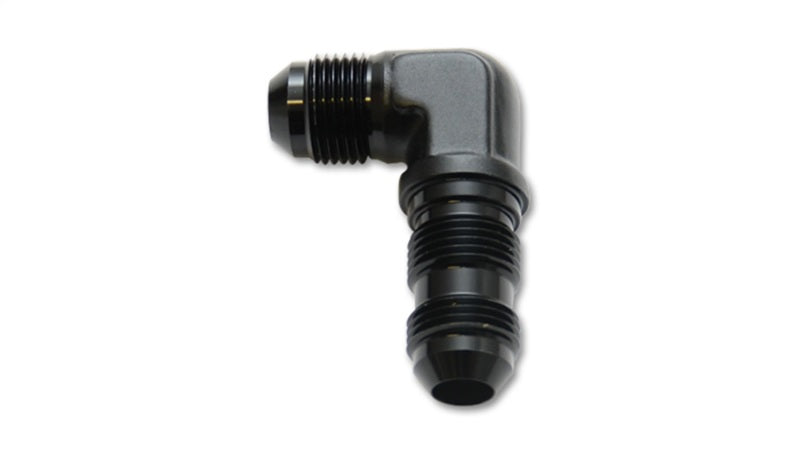

Vibrant -3AN Bulkhead Adapter 90 Degree Elbow Fitting - Anodized Black
This Vibrant Performance adapter fitting connects -3AN hose ends to 1/8-27 NPT ports with a 90 degree elbow for bulkhead mounting. It suits universal applications on oil pumps fuel pumps fuel filters and firewalls in custom automotive performance setups. Enjoy smooth flow reliable seals and lightweight construction for any high-performance plumbing job.
Key Features
- 6061-T6 Aluminum Construction: Provides durability and low weight at just 0.05 lbs for reduced overall system mass.
- Anodized Black Finish: Delivers corrosion resistance and a professional appearance that matches black AN systems.
- 90 Degree Elbow Design: Allows precise routing in tight spaces for clean hose line paths through panels.
- -3AN to 1/8-27 NPT Threads: Ensures direct compatibility with standard AN hose ends and common pump filter ports.
- Bulkhead Mounting: Enables secure pass-through installation with O-ring seal to prevent leaks under pressure.
Product Notes
- Designed for fuel oil and coolant line applications in racing and street performance vehicles.
- Inspect threads and O-rings before assembly for best results.
- Ships in individual protective packaging measuring 1 x 2.5 x 3.75 inches.
Installation Notes
- Professional installation recommended.
- Use thread sealant on NPT side and lubricate O-ring for proper sealing.
- Compatible with standard bulkhead panels up to 0.125 inch thick.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | All |
Why Choose Vibrant Performance?
- Trusted brand for precision AN fittings in motorsports.
- Engineered for high-flow low-restriction performance plumbing.
- Proven reliability in drag racing circle track and street builds.
Frequently Asked Questions
-
Q: Does this fit standard -3AN hose ends on custom oil lines?
A: Yes it threads directly to -3AN female swivel hose ends and 1/8 NPT ports on most pumps and filters. -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum with black anodized coating for strength and fade-resistant color. -
Q: Is installation straightforward for bulkhead use?
A: Yes drill panel to fit secure with nut and O-ring no special tools needed beyond basics.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 1 x 2.5 x 3.75 inches
- Weight: 0.05 lbs
