Match the Sizing and Offset for a Performance Wheel Setup

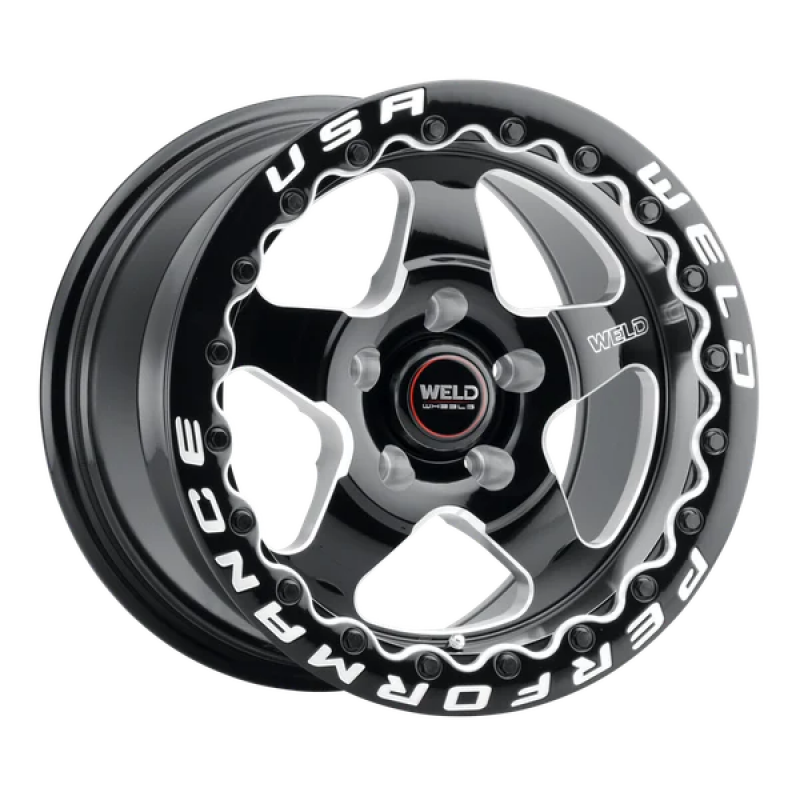

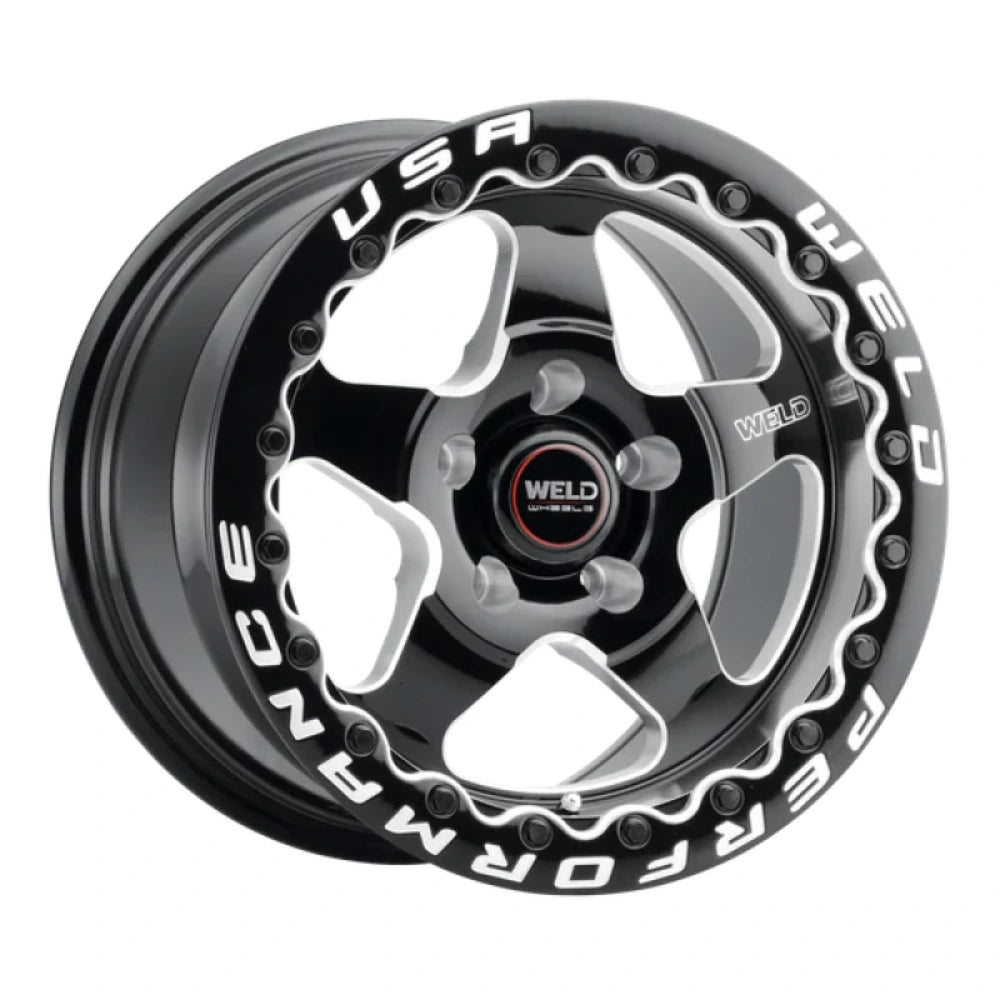

Weld Racing S90470067P49 is a universal specification wheel in the S155 or S904 Ventura family. It uses a 17 by 10 inch size, 5x114.3 bolt pattern, ET49 offset, 78.1 mm center bore, and Gloss Black Milled finish. Confirm hub, brake, suspension, tire, fender, and load requirements before ordering.
Key Features
- S904 Ventura Beadlock wheel configuration
- Exact application identification for the listed size and finish
- 17 by 10 inch wheel sizing
- 5x114.3 bolt pattern with ET49 offset
- 7.42 inch backspacing and 78.1 mm center bore
- Gloss Black Milled finish
- Aluminum wheel construction for compatible performance applications
- Universal specification fitment that requires vehicle level clearance and load verification
Fitment
| Application Scope | Wheel Size | Bolt Pattern | Offset | Center Bore |
|---|---|---|---|---|
| Universal specification fitment | 17 by 10 inch | 5x114.3 | ET49 | 78.1 mm |
Confirm the vehicle accepts the listed diameter, width, bolt pattern, offset, center bore, tire size, brake clearance, suspension clearance, fender clearance, and wheel load requirement.
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Weld Racing |
| Manufacturer Part Number | S90470067P49 |
| Series | S904 Ventura Beadlock |
| Product Type | Automotive wheel |
| Wheel Size | 17 by 10 inch |
| Bolt Pattern | 5x114.3 |
| Offset | ET49 |
| Backspacing | 7.42 inch |
| Center Bore | 78.1 mm |
| Finish | Gloss Black Milled |
| Material | Aluminum |
What's Included
- One Weld Racing wheel in the listed configuration
About Weld Racing
Weld Racing develops performance wheels for drag, street, and track applications. This Ventura configuration is defined by its exact size, bolt pattern, offset, backspacing, bore, and finish.
FAQ
What is the S90470067P49?It is the exact Weld Racing wheel configuration identified by the listed size, bolt pattern, offset, bore, and finish.
Which vehicles does this wheel fit?It has universal specification fitment. Confirm the vehicle hub, clearances, tire requirements, and load requirements before purchase.
What wheel size is supplied?The wheel is 17 by 10 inch.
What is the bolt pattern?The bolt pattern is 5x114.3.
What is the offset?The offset is ET49.
What is the center bore?The center bore is 78.1 mm.
Does the package include a tire?No tire is identified in the confirmed package. The package contains one wheel.
Does the package include lug nuts?Lug nuts, adapters, and mounting hardware are not identified in the confirmed package.
What clearances should be checked?Check brake, suspension, fender, hub, tire, and inner barrel clearance with the vehicle at its full steering and suspension range.
Installation Instructions
- Confirm the vehicle accepts a 17 by 10 inch wheel with a 5x114.3 bolt pattern, ET49 offset, and 78.1 mm center bore.
- Verify brake, suspension, fender, tire, hub, and load clearances before mounting.
- Confirm the tire size and service load meet the vehicle and wheel requirements.
- Clean the hub mounting surface and inspect the wheel and hardware for damage.
- Mount the wheel with compatible hardware and tighten by hand first.
- Torque the hardware in a star pattern to the vehicle or wheel manufacturer's specification.
- Check for interference through steering and suspension travel before road use.
- Recheck torque after the initial driving period and inspect for movement or contact marks.
