Weld S107 20X10.5 Laguna 5X127 ET13 BS6.25 Gloss Black MIL Dia 78.1

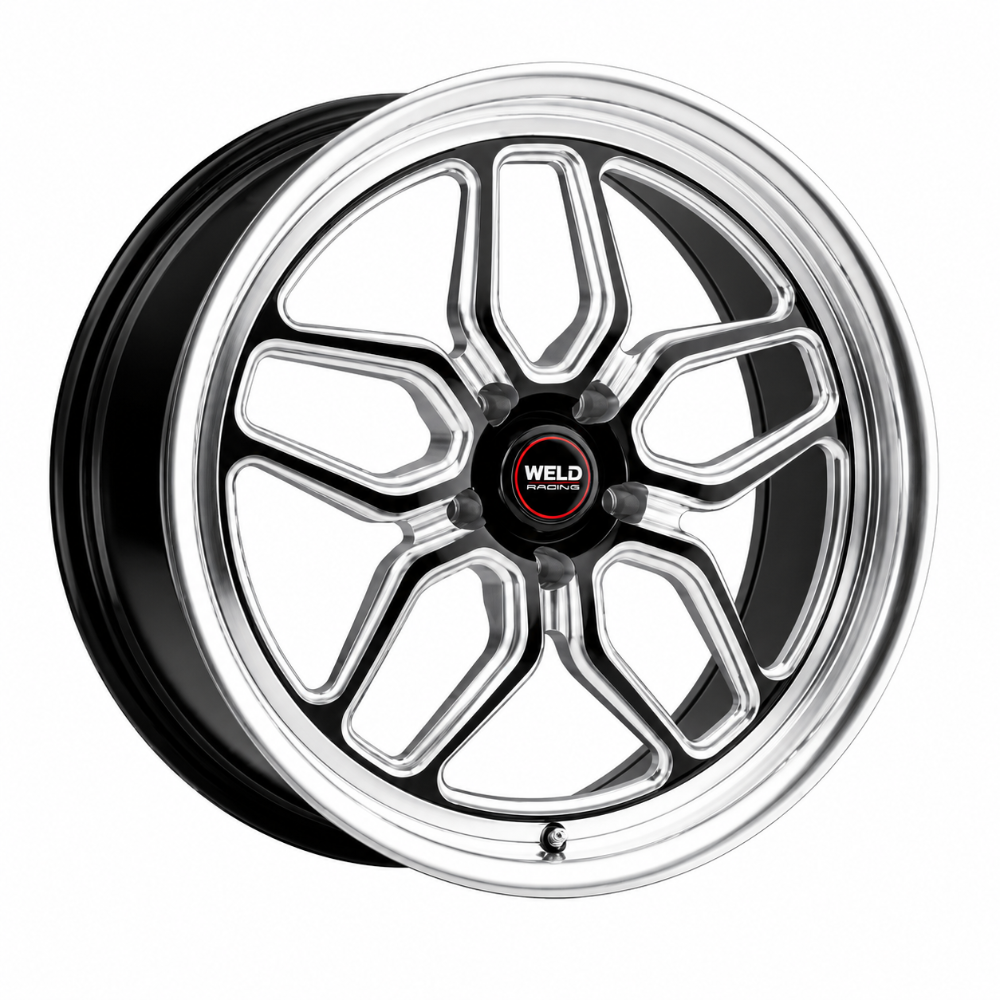

S10700573625 is the WELD S107 Laguna in 20x10.5 with a 5x127mm (5x5in) bolt pattern, +13mm offset, and the brand's signature Gloss Black Milled finish with a mirror-polished diamond lip. Built in Kansas City, Missouri, this is a rotary-formed one-piece aluminum monoblock wheel that delivers serious weight savings and structural strength without the price premium of a fully drop-forged unit. Whether you are building out a Jeep Wrangler, refreshing an OBS C10, or lowering a Chrysler Pacifica, the S107 Laguna brings a sharp, modern-classic look that holds up on the street and at the strip.

Finish and Design

The Gloss Black MIL-DIA finish combines three distinct visual elements into one aggressive package. The face and spokes carry a gloss black powder coat base. CNC-milled spoke windows cut through that base to expose raw machined aluminum, adding contrast and depth. The barrel lip is mirror polished and clearcoated, giving it a diamond-cut shine that frames the wheel with clean chrome-like brilliance. Lug pockets are open and exposed, adding to the race-inspired aesthetic. The five-spoke split design is directional in appearance but non-directional in fitment, so there is no separate front-left or rear-right inventory to manage.

Rotary-Formed Monoblock Construction

WELD builds the S107 Laguna as a one-piece monoblock using a rotary forming process. During production, the aluminum barrel is spun under heat and pressure, which increases tensile strength in the barrel wall compared to conventional gravity casting. The result is a lighter, stiffer wheel with no seams or multi-piece assembly points that could flex, leak, or corrode over time. At 25.0 lbs for this 20x10.5 size, S10700573625 is meaningfully lighter than comparable cast aftermarket wheels at the same diameter and width. Less unsprung weight translates directly to sharper handling, faster steering response, and reduced stress on wheel bearings and suspension components.

Made in the USA

The S107 Laguna is manufactured at WELD's facility in Kansas City, Missouri. Every wheel in the S107 line is produced domestically under WELD's quality control standards. When you order S10700573625, you are getting a wheel that was built in the United States, not imported and re-badged.

Complete Specifications

What's Included

• 1 x WELD S107 Laguna wheel (sold individually)

Not included: Lug nuts, center cap, valve stem, TPMS sensor, hub-centric rings, and tires are all sold separately. WELD recommends tuner-style 60-degree spline lug nuts for this wheel due to its exposed lug pocket design. If your vehicle hub bore is smaller than 78.1mm, hub-centric rings are required.

Fitment

S10700573625 uses a 5x127mm (5x5in) bolt pattern with a 78.1mm center bore. This combination fits a broad range of modern and classic vehicles. The table below lists confirmed fitments. Always verify offset, backspacing, and caliper clearance for your specific build before ordering. A hub-centric ring may be required if your vehicle hub bore is smaller than 78.1mm.

TPMS Compatibility

The S107 Laguna is fully compatible with standard TPMS sensors. Both snap-in rubber-valve and aluminum clamp-in style sensors install in the standard valve stem hole without modification or clearance issues. No TPMS sensor is included with this wheel. Purchase your sensors separately and have them programmed at time of installation.

Warranty

The S107 Laguna is backed by WELD's Limited Manufacturer's Warranty: a Lifetime Structural Warranty covering the wheel structure and integrity, plus a 1-Year Finish Warranty covering defects in the finish under normal use. Cosmetic damage from road hazards, improper installation, or abuse is not covered. Warranty claims are handled directly through WELD Racing.

S107 Laguna Line: More Configurations Available

The S107 Laguna series spans more than 70 configurations across diameters from 15 inches to 22 inches, covering bolt patterns including 5x114.3mm, 5x115mm, 5x120mm, 5x120.65mm, and 5x127mm. All share the same Gloss Black MIL-DIA finish. Key siblings to this wheel include:

• S10700563625 : 20x10.5 | 5x120.65mm | +13mm | 6.25in BS | 78.1mm CB (same offset, different bolt pattern)
• S10700521P38 : 20x10.5 | 5x120mm | +38mm | 7.25in BS | 72.56mm CB (European bolt pattern fitment)
• S10700565P50 : 20x10.5 | 5x114.3mm | +50mm | 7.75in BS | 72.56mm CB (high-positive offset fitment)
• S10709573525 : 20x9.5 | 5x127mm | 0mm | 5.25in BS | 78.1mm CB (narrower width, same bolt pattern)
• S10708073450 : 20x8 | 5x127mm | 0mm | 4.5in BS | 78.1mm CB (front runner fitment)
• S10720573625 : 22x10.5 | 5x127mm | +13mm | 6.25in BS | 78.1mm CB (22-inch sibling, same offset)
• S10722073425 : 22x12 | 5x127mm | -57mm | 4.25in BS | 78.1mm CB (wide negative-offset rear fitment)
• S10778073450 : 17x8 | 5x127mm | 0mm | 4.5in BS | 78.1mm CB (17-inch front pairing for drag builds)

Frequently Asked Questions

Does S10700573625 fit a Jeep Wrangler JL?
Yes. The Jeep Wrangler JL uses a 5x127mm (5x5in) bolt pattern, which is exactly what this wheel is built for. Verify offset and backspacing against your specific lift kit and tire size to confirm clearance. The +13mm offset and 6.25in backspacing typically work well on lifted JLs with appropriate tire sizing, but always check caliper and fender clearance before finalizing your setup.

What lug nuts do I need for the S107 Laguna?
WELD recommends tuner-style 60-degree conical spline lug nuts. The wheel uses an exposed lug pocket design, so standard OEM lug nuts with a flange or open-ended seat will not sit correctly. Purchase a set of 5 spline lug nuts per wheel (20 total for a full set of four wheels) and use the matching spline socket for installation. Thread pitch must match your vehicle's factory studs.

Is the S107 Laguna TPMS compatible?
Yes. Standard snap-in rubber and clamp-in aluminum TPMS sensors install in the valve stem hole without modification. No TPMS sensor is included in the box. Buy your sensors separately and have them programmed by a shop with the correct TPMS tool for your vehicle.

Does the S107 Laguna come with a center cap?
No center cap is included. Center caps for the S107 Laguna are available separately through WELD Racing. Check with WELD or an authorized dealer for the correct part number to match this wheel.

What is the offset and backspacing on this wheel?
The S107 Laguna in this configuration carries a +13mm offset (ET13) and 6.25 inches of backspacing. Offset and backspacing together determine how far the wheel sits inward or outward relative to the hub face. A +13mm offset is a mild positive, placing the wheel face slightly toward the outside of the vehicle. On most lifted Jeeps and trucks, this works well with wider tires without excessive rubbing.

Do I need hub-centric rings for the WELD S107 Laguna?
This wheel has a 78.1mm center bore. If your vehicle hub bore is exactly 78.1mm, no ring is needed. If your hub bore is smaller, hub-centric rings are required to eliminate wheel vibration and center the wheel properly. Hub-centric rings are not included and are sold separately. Common applications like the Jeep Wrangler JK and JL have a 71.5mm hub bore, so rings would be required for those fitments.

What is the load rating for WELS10700573625?
The load rating is 1,650 lbs per wheel. For a four-wheel vehicle, the total load capacity is 6,600 lbs across four wheels. Verify that this rating meets or exceeds your vehicle's gross axle weight rating (GAWR). Always confirm load ratings against your vehicle's requirements before installing aftermarket wheels.

Is the S107 Laguna a directional wheel?
No, the S107 Laguna is non-directional. There is no required left-right or front-rear orientation, so you can mount and rotate the wheels freely without concern for spin direction. This also makes tire rotations straightforward.

What is the difference between rotary formed and cast wheels?
Rotary forming (also called rotary forging or flow forming) spins the aluminum barrel of the wheel under heat and pressure after the initial casting or forging. This process aligns the grain structure of the metal in the barrel, increasing tensile strength significantly compared to conventional gravity-cast wheels. The result is a lighter wheel that is stronger in the areas most subject to bending stress. WELD's rotary-formed monoblock construction gives the S107 Laguna performance characteristics closer to a forged wheel at a more accessible price point.

What vehicles with a 5x127mm bolt pattern fit the S107 Laguna?
The 5x127mm bolt pattern is used on a wide range of Jeep, Dodge, Chrysler, Ram, and classic GM vehicles. Modern fitments include the Jeep Wrangler JK and JL, Jeep Gladiator, Dodge Durango, Chrysler Pacifica, and Chrysler Voyager. Classic fitments include the Chevrolet C10 and K10 trucks, Caprice Classic, Buick Roadmaster, and Cadillac Fleetwood. See the full fitment table above for confirmed vehicles.

California Proposition 65 Warning

WARNING: This product can expose you to Nickel, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
