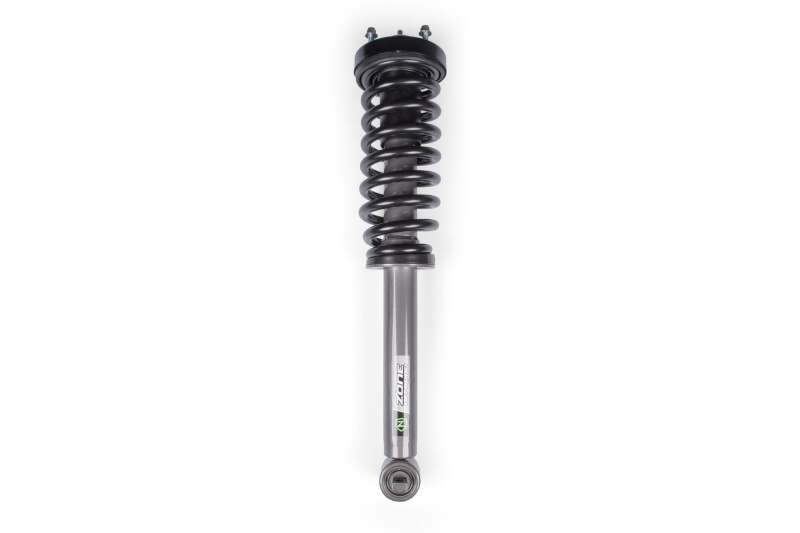

Bolt-in front lift with the Zone Offroad ZONF4401 loaded strut.
The Zone Offroad ZONF4401 loaded strut (alt. part number 7232361J) ships fully assembled for the 2014-2026 Ford F-150 4WD, delivering 4 inch of front lift without disassembling or reloading a factory strut. The vehicle-specific damping tune and granite metallic powder coat keep ride quality consistent with a durable, professional finish. Sold individually, two are required for a complete front pair.
Key Features
- 4 inch of front lift from a fully assembled, ready-to-bolt-in loaded strut
- Fully assembled loaded strut, vehicle-specific damping tune
- Granite metallic powder coat for durability and a clean appearance
- Engineered for compatibility with Zone Offroad lift systems
- Genuine Zone Offroad part identified by part number ZONF4401 (alt. 7232361J)
Fitment
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 2014-2026 | Ford | F-150 | Front 4WD, sold individually, quantity 2 required per vehicle |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | ZONF4401 |
| Alternate Part Number | 7232361J |
| Brand | Zone Offroad |
| Condition | New |
| Lift Height | 4 inch |
| Finish | Granite metallic powder coat |
| Sold As | Single strut, sold individually (2 required per vehicle for a complete front pair) |
| Warranty | One-year manufacturer warranty |
What's Included
- 1x Zone Offroad loaded strut, part number ZONF4401 (sold individually, qty 2 required per vehicle)
About Zone Offroad
Zone Offroad has engineered suspension lift systems for trucks and SUVs for decades, building kits around heavy-duty crossmembers, knuckles, and loaded struts designed to hold factory ride quality at height.
FAQ
Will this fit my vehicle exactly as listedCheck the fitment table above for the exact years, make, and model this part covers. Some model years use different rotor or trim configurations, so confirm your specific submodel before ordering if one is noted.
What is included in the boxThis listing includes the component itself. Mounting hardware is included only when stated in the specifications table above.
Do I need any special tools to install thisBasic hand tools are typically sufficient for installation. A torque wrench is recommended to bring fasteners to the manufacturer's specified torque.
Is this a direct replacement for the factory partYes, this part is designed as a direct fit replacement for the listed applications using the factory mounting points, so no vehicle modification is required.
What is the expected break-in or service periodStandard break-in and service intervals apply. Follow the installation instructions below for the recommended break-in procedure to reach full performance.
Can I install this myself or do I need a professionalMany owners install this part themselves with common tools and a lift or jack stands. If you are not comfortable with brake or suspension work, a certified technician is recommended.
Does this come with a warrantyThis part is covered by the manufacturer's standard warranty against defects in materials and workmanship. Retain your receipt as proof of purchase.
Will this work with my aftermarket wheelsMost stock-diameter aftermarket wheels clear this part without issue. If you run very low-offset or small-diameter wheels, verify clearance before ordering.
Installation Instructions
- Raise the vehicle and support it on jack stands, then remove the front wheel
- Disconnect the brake line bracket clip so the line can move freely
- Remove the outer tie rod nut and loosen the lower strut nut, leaving the bolt in place
- Remove the upper strut mount's outer nuts, then support and lower the control arm to free the strut
- Remove the old strut assembly by pulling it from the lower pocket and sliding it out the top
- Install the new Zone Offroad ZONF4401 loaded strut in the same orientation and secure the upper mount nuts
- Reinstall the lower strut bolt, upper control arm joint, and sway bar bushing nuts
- Torque the lower strut nut to the manufacturer's specification, then repeat on the opposite side
