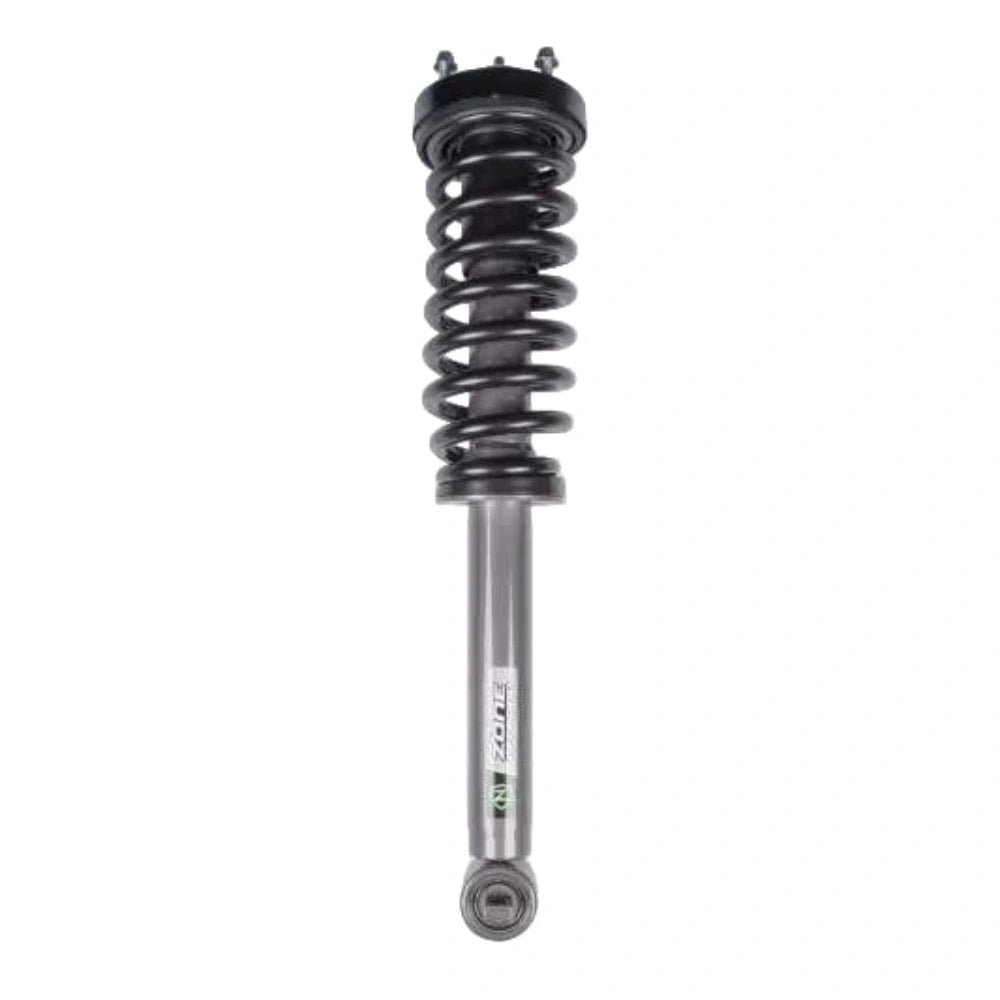

Level Your 2007-2018 Silverado or Sierra 1500 Without Sacrificing Ride Quality with the Zone Offroad ZONC4201 2-Inch Loaded Strut
The Zone Offroad ZONC4201 is a pre-assembled loaded strut for the 2007-2018 Chevrolet Silverado 1500 and GMC Sierra 1500 that provides 2 inches of front lift to level the factory rake. The factory GMT900 and K2XX platform trucks are designed with a slight nose-down rake from the factory, and the ZONC4201 corrects that stance by replacing the factory strut with a purpose-built loaded unit calibrated for the leveled ride height. The loaded strut design combines the spring, upper mount, and strut body into a factory-assembled complete unit, so no spring compressor is required during installation. For trucks that see regular street driving, this approach provides better ride quality than a strut spacer by replacing the factory strut valving with a unit tuned specifically for the 2-inch raised position. Zone Offroad covers the ZONC4201 under Factory Protection Plus, including a limited lifetime warranty and ESC system compliance testing. Sold as a single strut. Two units required for a complete front pair.
Key Features
- Pre-assembled 2-inch loaded strut for 2007-2018 Chevrolet Silverado 1500 and GMC Sierra 1500
- Corrects factory front-to-rear rake for a level stance
- Replaces the complete factory strut assembly for proper valving at the lifted height
- No spring compressor needed for installation
- Zone Factory Protection Plus: limited lifetime warranty and ESC system compliance
- Compatible with models not equipped with MagneRide suspension
- Sold as a single unit
Vehicle Fitment
| Year Range | Make | Model |
|---|---|---|
| 2007-2018 | Chevrolet | Silverado 1500 |
| 2007-2018 | GMC | Sierra 1500 |
Specifications
| Detail | Value |
|---|---|
| Part Number | ZONC4201 |
| Brand | Zone Offroad |
| Lift Height | 2 inches (front, leveling) |
| Type | Loaded strut (pre-assembled) |
| Quantity | Single strut |
| Fitment | 2007-2018 Chevy Silverado 1500 and GMC Sierra 1500 |
| Warranty | Factory Protection Plus Limited Lifetime Warranty |
| UPC | N/A |
What's Included
- 1x Zone Offroad ZONC4201 2-inch pre-assembled loaded strut (single)
About Zone Offroad
Zone Offroad produces suspension lift systems and components for full-size trucks covered by Factory Protection Plus, including a limited lifetime warranty, ESC system compliance testing to FMVSS 126, and a 5-year/100,000-mile drivetrain warranty. Zone Offroad lift products are engineered to maintain factory electronic stability control function for legal street use.
Related Parts on Our Site
- Zone Offroad ZONF4601 2014-2026 Ford F-150 6-Inch Loaded Strut - Single - Loaded strut for Ford F-150 applications
- Zone Offroad ZONF4301 2014-2025 Ford F-150 3-Inch Loaded Strut - Single - F-150 3-inch lift strut
Frequently Asked Questions
What is the Zone Offroad ZONC4201?The Zone Offroad ZONC4201 is a pre-assembled 2-inch loaded front strut for the 2007-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. It levels the factory front-to-rear rake by adding 2 inches of front lift with a purpose-built strut unit tuned for the raised position. It is sold as a single strut under the Factory Protection Plus warranty program.
Does the ZONC4201 fit both the GMT900 (2007-2013) and K2XX (2014-2018) platform Silverado and Sierra?Confirm fitment for your specific year range using Zone Offroad's application guide. The 2007-2013 and 2014-2018 GMT900 and K2XX platforms share similar front suspension architecture but may have different strut mount configurations in specific years. Zone Offroad's fitment tool will confirm the exact years covered by the ZONC4201.
How many ZONC4201 struts do I need for my Silverado or Sierra?This listing is for a single strut. Two units are required for a complete front strut replacement. Order two of the ZONC4201 for both the driver and passenger side positions on your 2007-2018 Silverado or Sierra 1500.
Will the ZONC4201 fit a Silverado or Sierra with MagneRide suspension?Zone Offroad lift components are generally not compatible with MagneRide magnetic ride control. If your 2007-2018 Silverado or Sierra 1500 is equipped with MagneRide, confirm fitment with Zone Offroad before ordering. Only certain trim levels on these model years included MagneRide.
Does the ZONC4201 require a spring compressor to install?No. The loaded strut comes factory-assembled with the spring pre-compressed. You do not need a spring compressor, which simplifies installation and eliminates the risks associated with compressing and releasing strut springs.
What tire size works with a 2-inch level lift on the 2007-2018 Silverado 1500?A 2-inch leveling lift on the 2007-2018 Silverado or Sierra 1500 typically allows up to 33 to 35-inch tires depending on wheel offset and backspacing. Some rubbing may occur at full lock with larger tires depending on the specific wheel fitment. Refer to Zone Offroad's recommended tire and wheel specifications for this application.
Is a front alignment required after installing the ZONC4201?Yes. A front end alignment is required after any front strut replacement to set correct caster, camber, and toe at the new ride height. This protects against uneven tire wear and ensures safe, predictable handling.
Where is Zone Offroad based and where are their products manufactured?Zone Offroad is a US-based suspension manufacturer. Their products are distributed through major off-road and truck suspension retailers across the United States and backed by their Factory Protection Plus warranty program.
Installation Instructions
- Safely lift and support the vehicle on jack stands at the frame with front suspension hanging free.
- Remove the front wheel and tire on the side being serviced.
- Support the lower control arm or knuckle with a floor jack to prevent overextending the CV axle.
- Disconnect the sway bar end link from the strut or lower control arm.
- Remove brake line brackets and ABS wire brackets from the factory strut body.
- From the engine bay, remove the three upper strut mount nuts from the strut tower.
- Remove the lower strut-to-knuckle bolt and pull the factory strut assembly free.
- Insert the Zone Offroad ZONC4201 into the strut tower. Align upper studs and hand-thread the upper mount nuts.
- Install the lower mounting bolt through the knuckle and hand-thread.
- Torque all hardware to Zone Offroad specification per the included instructions.
- Reinstall brake brackets, ABS clips, and the sway bar end link.
- Reinstall the wheel and torque lug nuts to spec.
- Repeat on the opposite side, then perform a front end alignment before driving.
