BorgWarner SuperCore Assembly SX-E S300SX-E 8376 for Cummins 5.9L 6.7L Diesels

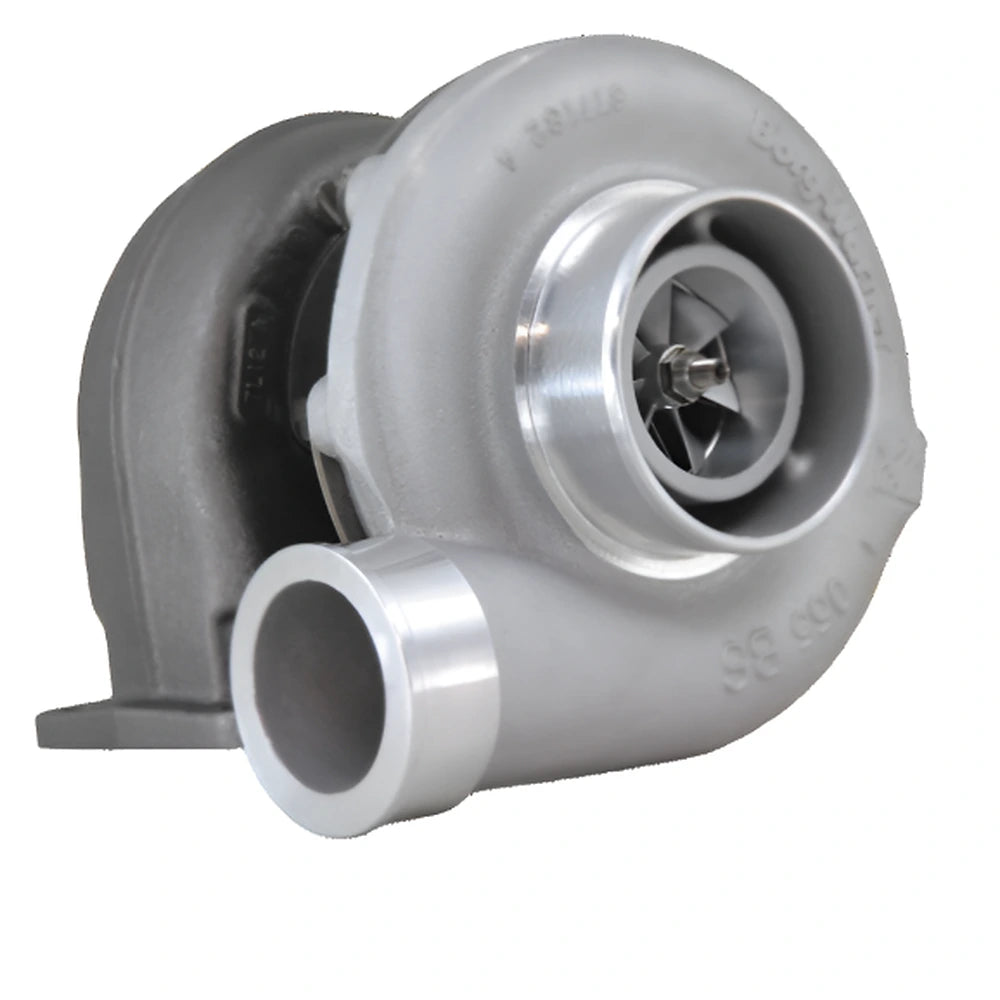

BorgWarner SuperCore Assembly SX-E S300SX-E 8376 provides a complete pre-assembled turbocharger core with compressor and turbine housings for high-horsepower diesel builds. It fits modified Cummins 5.9L and 6.7L engines in Ram trucks tractors and industrial applications delivering up to 105 lb/min airflow for 950-1050HP performance. Build your custom turbo with this reliable S300 frame component featuring dual ball bearings for quick spool and response.
Key Features
- 83/76mm Forged Milled Compressor Wheel: Handles massive intake airflow up to 105 lb/min supporting 1000+HP while maintaining efficiency across broad boost ranges
- 99/84mm Gamma-Ti Turbine Wheel: Resists high exhaust temperatures for sustained power in demanding racing and towing conditions
- Dual Ball Bearing Cartridge: Reduces friction for faster spool-up and improved throttle response compared to journal bearing designs
- T4 Divided 0.88 A/R Turbine Housing: Balances backpressure and flow for strong mid-range torque in 6.0L+ displacement engines
- Ported Anti-Surge Compressor Housing: V-band outlet 4-inch inlet prevents compressor surge at high boost levels over 50psi
Product Notes
- Requires matching oil feed 7/16-24 UNF and drain M12x1.5 fittings plus water cooling ports M14x1.5
- Use high-quality synthetic oil and follow break-in procedure for longest service life
- Standard ground shipping in protective oversize box
Installation Notes
- Professional installation recommended.
- Mount to T4 divided flange manifold with V-band compressor clamps included
- Compatible with aftermarket intercooler piping and wastegate setups
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2007 | Dodge | Ram 2500 | 5.9L Cummins |
| 2004-2007 | Dodge | Ram 3500 | 5.9L Cummins |
| 2007-2009 | Dodge | Ram 2500 | 6.7L Cummins |
| 2007-2009 | Dodge | Ram 3500 | 6.7L Cummins |
| 2010-2018 | Ram | 2500 | 6.7L Cummins |
| 2010-2018 | Ram | 3500 | 6.7L Cummins |
| 2019-2023 | Ram | 2500/3500 | 6.7L Cummins |
| 2003-2010 | Ford | F-250/F-350 | 6.0L/6.4L Power Stroke |
| 2011-2023 | Ford | F-250/F-350 | 6.7L Power Stroke |
| 2004.5-2010 | GM | 2500HD/3500HD | 6.6L Duramax |
Why Choose BorgWarner?
- Direct supplier to truck OEMs with decades of turbo experience
- High-flow components tested for real-world diesel power gains
- Precision balanced assembly ensures vibration-free operation at redline
Frequently Asked Questions
-
Q: What horsepower range does the S300SX-E 8376 support on Cummins engines?
A: Rated for 950-1050HP on 5.9L 6.7L Cummins with proper fueling tuning and supporting mods -
Q: What are the housing specifications?
A: T4 divided 0.88 A/R turbine housing and SX-E ported compressor housing with V-band outlet for easy plumbing -
Q: What is the warranty and installation requirement?
A: 12-month unlimited mileage warranty with professional installation and proper maintenance
Shipping & Handling
- Method: Standard ground
- Availability: In stock - ships same or next business day
- Packaging: Oversize box 20x16x16 inches
- Weight: 28 lbs
