SKU: 13009097008 | UPC: 840232716382

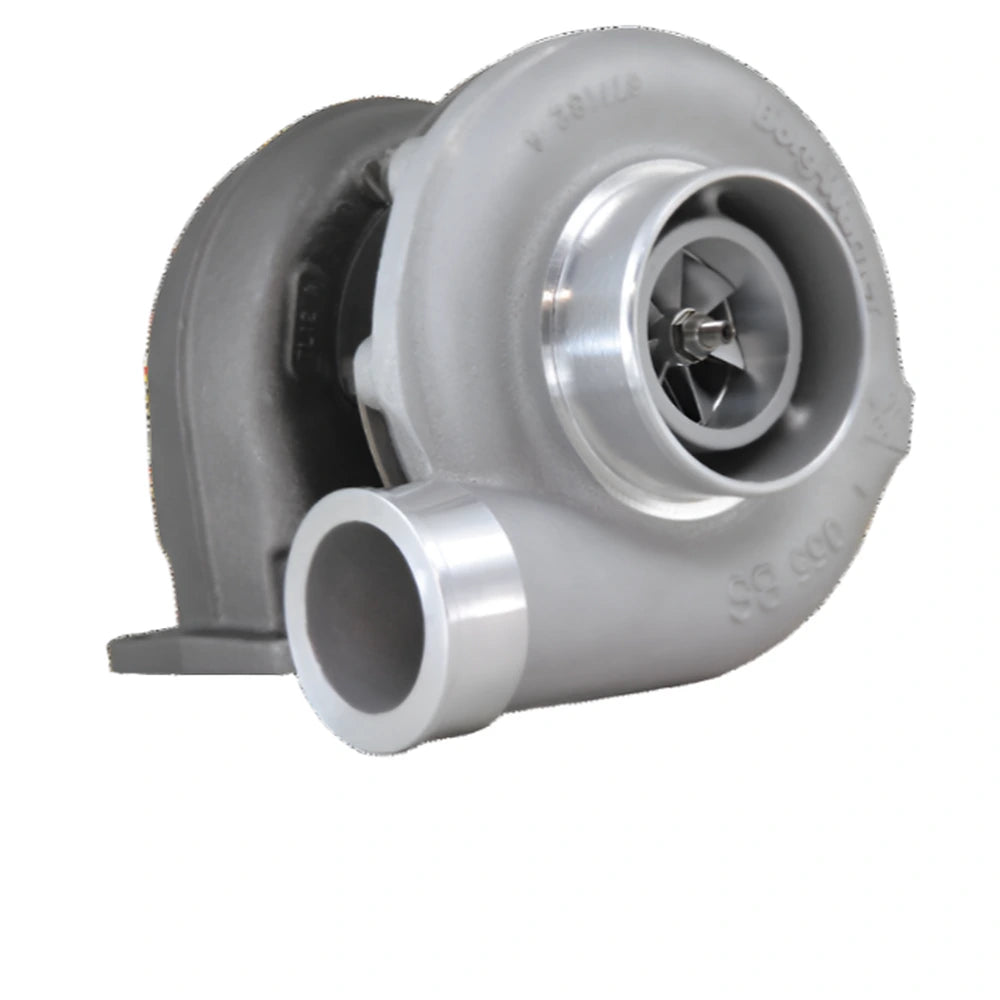

BorgWarner SuperCore Assembly SX-E S300SX-E 64mm Inducer 8776 for 2003-2022 Ram Cummins
This BorgWarner SuperCore Assembly powers the S300SX-E frame turbocharger with a 64mm billet compressor inducer and 87/76mm turbine wheel. It fits 2003-2022 Dodge Ram 2500/3500 Cummins 5.9L and 6.7L trucks for drag racing, towing, and street performance. Expect 80+ lbs/min airflow and support for 550-1050HP builds with fast spool and reliable boost.
Key Features
- 64mm Billet Compressor Wheel: 64.5mm inducer / 88.7mm exducer delivers high airflow for 1050HP potential in diesel applications
- 87/76mm Turbine Wheel: Inconel construction balances quick spool under 2500RPM with top-end power for Cummins trucks
- Dual Ball Bearing CHRA: Reduces friction for 25% faster spool-up and extends service life under high boost
- SuperCore Design: Bare cartridge drops into any S300SX-E T4 or V-band housing for simple turbo rebuilds or upgrades
- Precision Balanced: Factory balanced assembly ensures vibration-free operation at 150000+ RPM
Product Notes
- Requires S300SX-E compatible compressor and turbine housings sold separately
- Oil feed M12x1.5 with -4AN restriction and coolant -6AN ports standard
- Securely packaged to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Bolt-in replacement for stock S300SX-E cores using existing hardware
- Verify oil drain orientation matches housing V-band clamp position
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins |
| 2007-2012 | Dodge | Ram 2500 | 6.7L Cummins |
| 2007-2012 | Dodge | Ram 3500 | 6.7L Cummins |
| 2013-2018 | Ram | 2500 | 6.7L Cummins |
| 2013-2018 | Ram | 3500 | 6.7L Cummins |
| 2019-2024 | Ram | 2500 | 6.7L Cummins |
| 2019-2024 | Ram | 3500 | 6.7L Cummins |
Why Choose BorgWarner?
- Engineering trusted in OEM Cummins applications and NDRA drag racing
- High-temperature materials withstand 1600F+ exhaust gas temps
- Near-perfect aerodynamics from CFD design and SFM balancing
Frequently Asked Questions
-
Q: Will this SuperCore fit my stock S300 housing on a 6.7L Cummins?
A: Yes it directly replaces the core in factory or aftermarket S300SX-E T4/V-band housings on 2007+ Ram Cummins -
Q: What wheel materials are used?
A: 2618 forged billet aluminum compressor and Inconel turbine wheels for strength at extreme RPM and heat -
Q: What is the warranty coverage?
A: BorgWarner provides 1-year unlimited mileage warranty with proof of proper oiling and installation
Shipping & Handling
- Method: Standard ground
- Availability: In stock - ships same or next business day
- Packaging: Foam protected in 14x14x14 inch box
- Weight: 18 lbs
