-20%
BorgWarner SuperCore Assembly SX-E S300SX-E 8780 - Black Ops Auto Works
Click to zoom in

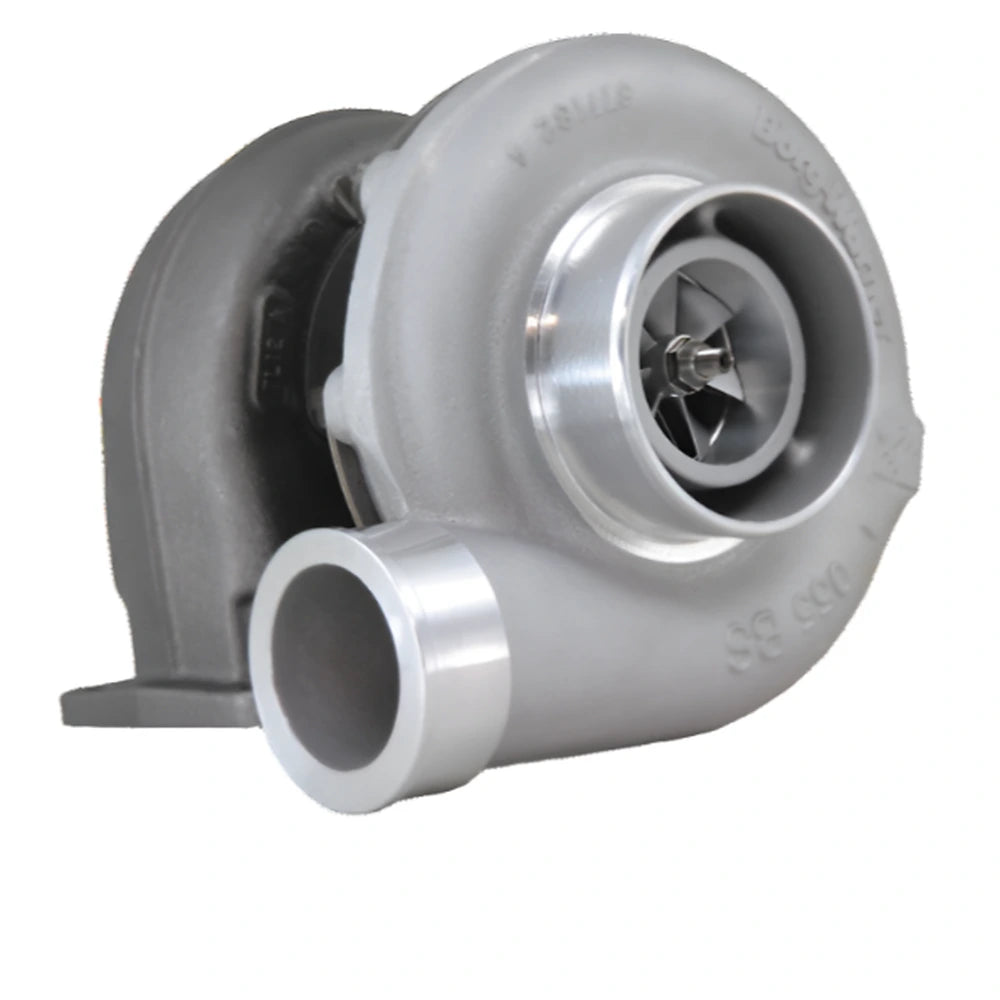

BorgWarner SuperCore Assembly SX-E S300SX-E 8780

BorgWarner
BWA13009097047
840232716566
Super Core Assemblies
6 Units In Stock - Ships Next Business Day
$ 1,357.94 $ 1,086.35
$ 1,086.35

SKU: 13009097047 | UPC: 840232716566

BorgWarner SuperCore Assembly SX-E S300SX-E 8780 for 2003-2022 Ram Cummins 5.9L/6.7L

BorgWarner SuperCore Assembly SX-E S300SX-E 8780 provides the essential rotating components for custom S300 frame turbochargers. Designed for high-horsepower diesel builds this core fits Cummins 5.9L and 6.7L engines in Ram 2500/3500 trucks with compatible housings. Expect strong spool-up and airflow handling over 110 lb/min for street and track use.

Key Features

  • Dual Ball Bearing Cartridge: Lowers drive pressure supports quick spool and handles 150000+ RPM for reliable daily driving or racing
  • 78/105mm Billet Compressor Wheel: 9-blade extended-tip design in 2618 alloy flows 110+ lb/min efficiently up to 4.3 pressure ratio
  • 80/99mm Gamma-Ti Turbine Wheel: Lightweight Inconel construction resists heat withstands 1050C exhaust temps for sustained power
  • SuperCore Design: Pre-assembled CHRA compressor cover and turbine wheel ready for turbine housing and compressor housing installation
  • Factory Balanced: Precision VSR balanced assembly reduces vibration ensures smooth operation at high boost levels

Product Notes

  • SuperCore excludes compressor and turbine housings select based on engine bay clearance and exhaust setup
  • Oil and coolant lines must match S300 frame specifications
  • Standard ground shipping securely packaged to prevent damage

Installation Notes

  • Professional installation recommended.
  • Assemble with matching V-band turbine housing A/R .91 1.00 1.15 or T6 options
  • Use ARP studs for V-band clamps torque to spec after full balancing

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins
2003-2007 Dodge Ram 3500 5.9L Cummins
2007.5-2012 Ram 2500 6.7L Cummins
2007.5-2012 Ram 3500 6.7L Cummins
2013-2018 Ram 2500 6.7L Cummins
2013-2018 Ram 3500 6.7L Cummins
2019-2022 Ram 2500 6.7L Cummins
2019-2022 Ram 3500 6.7L Cummins

Why Choose BorgWarner?

  • Supplies OEM turbos for Cummins Dodge Ram Ford GM heavy-duty trucks
  • Backed by decades of turbo engineering for diesel performance
  • Test proven in 1000+ HP competition trucks and street builds

Frequently Asked Questions

  • Q: Does this SuperCore bolt directly to my stock turbo housing?
    A: No it requires compatible S300SX-E compressor and turbine housings sold separately verify A/R and flange match for your setup
  • Q: What materials are used in the wheels?
    A: Compressor wheel is forged 2618 billet aluminum turbine wheel is Gamma-Ti Inconel for extreme heat resistance
  • Q: What warranty applies?
    A: 12-month unlimited mileage manufacturer warranty when installed by certified shop and used with proper oiling

Shipping & Handling

  • Method: Standard ground UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original BorgWarner box 17in x 17in x 17in
  • Weight: 24 lbs

Request For Information

Have questions about BorgWarner SuperCore Assembly SX-E S300SX-E 8780? Fill out the form below and we'll get back to you by the next business day.
