BorgWarner SuperCore Assembly SX-E S300SX-E 8780 - Black Ops Auto Works
Click to zoom in

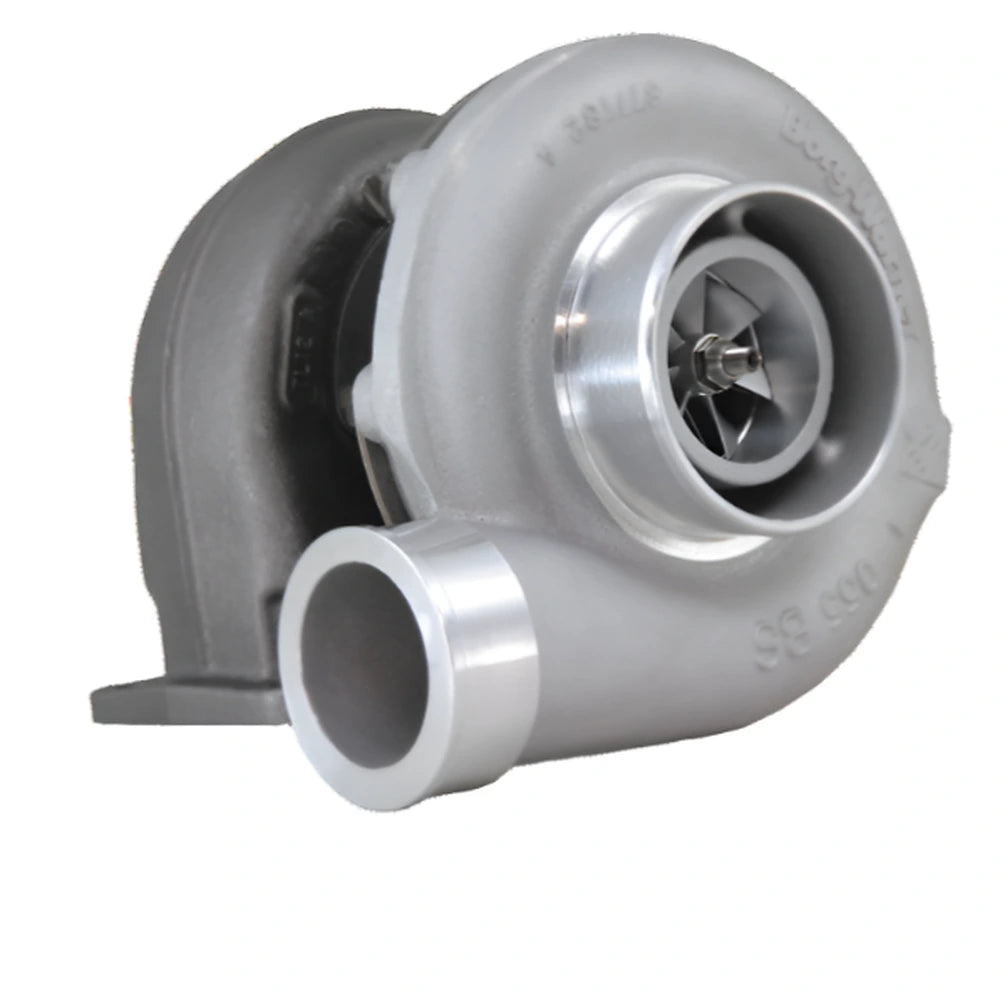

BorgWarner SuperCore Assembly SX-E S300SX-E 8780

BorgWarner
BWA13009097055
840232717280
Super Core Assemblies
14 Units In Stock - Ships Next Business Day
$ 1,357.94 $ 1,086.35
$ 1,086.35

SKU: 13009097055 | UPC: 840232717280

BorgWarner SuperCore Assembly SX-E S300SX-E 8780 for 2003-2024 Dodge Ram Cummins 5.9L 6.7L

BorgWarner SuperCore Assembly SX-E S300SX-E 8780 delivers the center housing rotating assembly for S300 frame turbochargers on Dodge Ram Cummins trucks. It fits 2003-2024 Ram 2500 3500 models with 5.9L and 6.7L diesels using S300 housings. This core provides high airflow for 1050HP applications with quick response and long life.

Key Features

  • Billet Compressor Wheel: 78mm inducer 80mm exducer 7+7 blade design flows 105 lbs/min for strong mid-range power in Cummins builds
  • Ball Bearing Cartridge: Dual ceramic ball bearings reduce friction for 25% faster spool-up and withstand 150000 RPM
  • Inconel Turbine Wheel: 80mm inducer 68mm exducer resists 1050C exhaust temps for reliability under boost
  • High Power Capacity: Rated to 1050HP perfect for street trucks drag racing and towing
  • Precision Balanced: Factory balanced assembly ensures vibration-free operation at high RPM

Product Notes

  • Pair with matching S300 compressor and turbine housings for complete turbo build
  • Use 7/16-24 oil feed line with -4 AN restriction and 1/2 NPT drain
  • Standard ground shipping keeps costs low for quick delivery

Installation Notes

  • Professional installation recommended.
  • Prime oil system before startup to seat bearings properly
  • Compatible with factory S300 frame mounts and VGT delete kits

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins
2003-2007 Dodge Ram 3500 5.9L Cummins
2004-2007 Dodge Ram 4500 5.9L Cummins
2004-2007 Dodge Ram 5500 5.9L Cummins
2007.5-2024 Dodge Ram 2500 6.7L Cummins
2007.5-2024 Dodge Ram 3500 6.7L Cummins
2007.5-2024 Dodge Ram 4500 6.7L Cummins
2007.5-2024 Dodge Ram 5500 6.7L Cummins

Why Choose BorgWarner?

  • OEM supplier to Cummins for millions of production turbos
  • Proven in NHRA Pro Stock and Top Fuel drag racing
  • Engineered with aerospace-grade materials for daily driven power

Frequently Asked Questions

  • Q: Will this fit my 2006 Ram 2500 5.9L Cummins?
    A: Yes it drops into factory S300 housing or aftermarket T3 T4 V-band setups with matching flanges
  • Q: What materials are used in construction?
    A: 2618 billet aluminum compressor 718 Inconel turbine and 440C stainless steel shaft for extreme durability
  • Q: What is the warranty and install process?
    A: 12-month unlimited mileage warranty with proper oiling professional install advised includes water cooling ports for added life

Shipping & Handling

  • Method: Standard ground UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected in 14x14x12 inch corrugated box
  • Weight: 22 lbs

Request For Information

Have questions about BorgWarner SuperCore Assembly SX-E S300SX-E 8780? Fill out the form below and we'll get back to you by the next business day.
